Proteus SMARTY HYBRID WMG HW
Артикул: 1237000216
Цена: 0 KZT

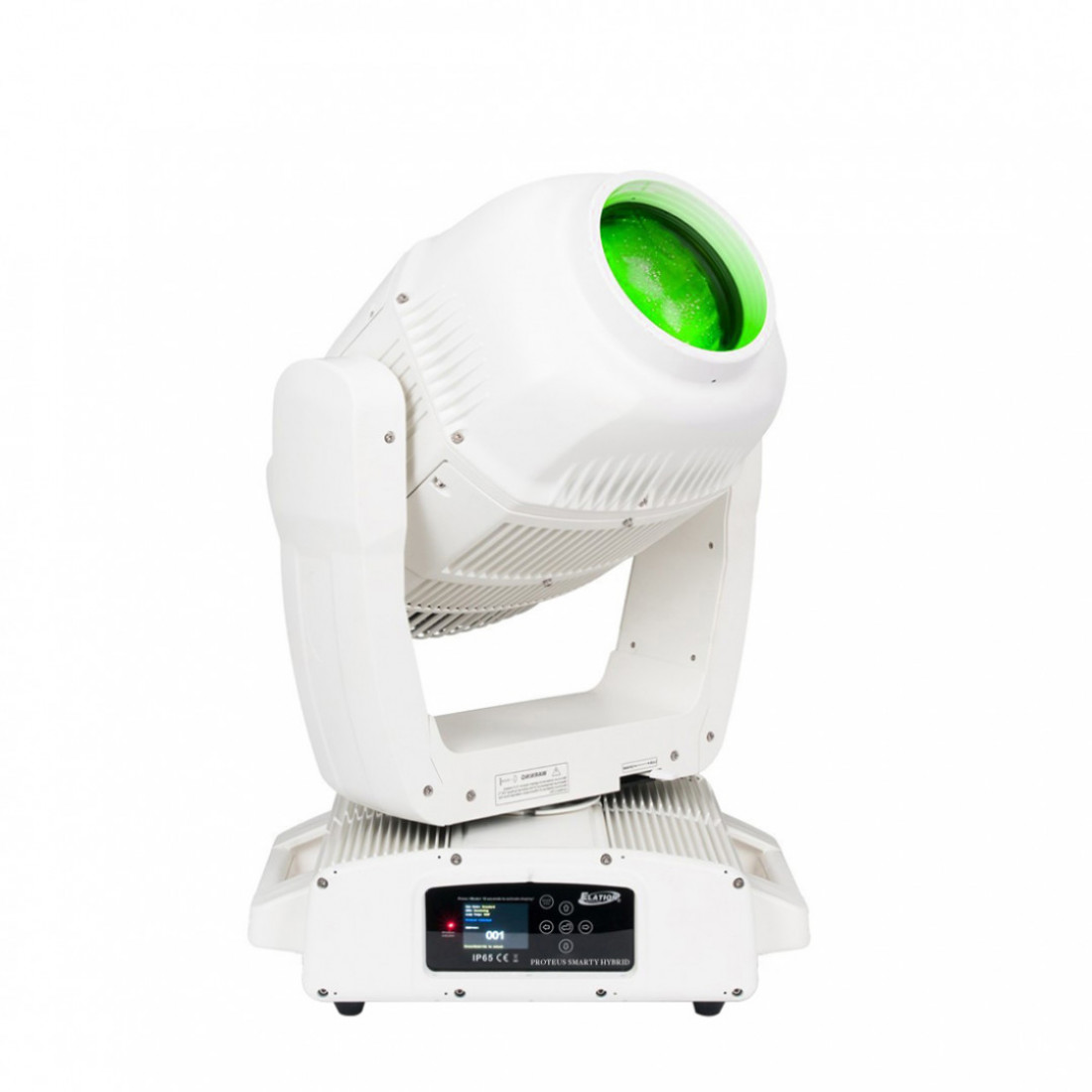

The Proteus Smarty Hybrid is full featured all white housing IP65 certified Spot, Beam and Wash Hybrid fixture for indoor and outdoor use. It features the all new Philips™ MSD Platinum 200 Flex lamp with “FLEX” technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long life solution of up to 6,000 hours. Features include up to 11,000 total lumen output, motorized zoom ranges of 1° to 18° in beam mode, 3° to 27° in spot mode, and 5° to 33° in wash mode, a full CMY color mixing system, a full frost filter for wash effects, 13 dichroic colors including a quad-color filter, CTB, CTO, and UV, 8 rotating—interchangeable glass and 12 static-stamped metal gobos, a 16-facet and 4-facet linear independent rotating prisms, multiple CMY color, gobo, and prism macros, motorized focus with an auto-focus feature, high speed shutter and strobe, lamp hibernation mode, DMX & RDM (Remote Device Management) protocol support, fixed cables, full color 180° reversible LCD menu display with battery backup, and a multi-voltage universal auto switching power supply (100-240V).
ТЕХНИЧЕСКИЕ ДАННЫЕ
***Only on Special Order***
FEATURES
IP65 Certified 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology from 190W to 280W and Lamp Hibernation with up to 6,000 Hour Lamp Life
Full CMY Color Mixing System
Rotating and Static Gobos, Dual Prism, Frost
Zoom from 1° Beam to 33° Wash and Auto Focus option
SOURCE
Philips™ MSD Platinum 200 Flex 280W Lamp
Up To 6,000 Hour Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
128,426 LUX 11,931 FC @ 15m (49.2’) (Min Zoom Beam)
135,108 LUX 12,552 FC @ 5m (16.4’) (Min Zoom Spot)
Beam
Zoom Range 1° - 18°
Beam Angle 1.1° - 7°
Field Angle 2.6° - 17.8°
Spot
Zoom Range 3° - 27°
Beam Angle 1.8° - 18.7°
Field Angle 2.8° - 28.8°
Wash
Zoom Range 5° - 33°
Beam Angle 2.6° - 24.9°
Field Angle 4.6° - 40.7°
EFFECTS
Beam, Spot, Wash Modes
Motorized Zoom
Full Frost Filter for Wash Effects
16-Facet and 4-Facet Linear Prisms
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
COLOR
Full CMY Color Mixing System
13 Colors including Quad Color, CTO, CTB, and UV
GOBOS
2 Gobo Wheels
8 Rotating / Indexing Interchangeable Glass Gobos
12 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (20 / 34)
DMX & RDM Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

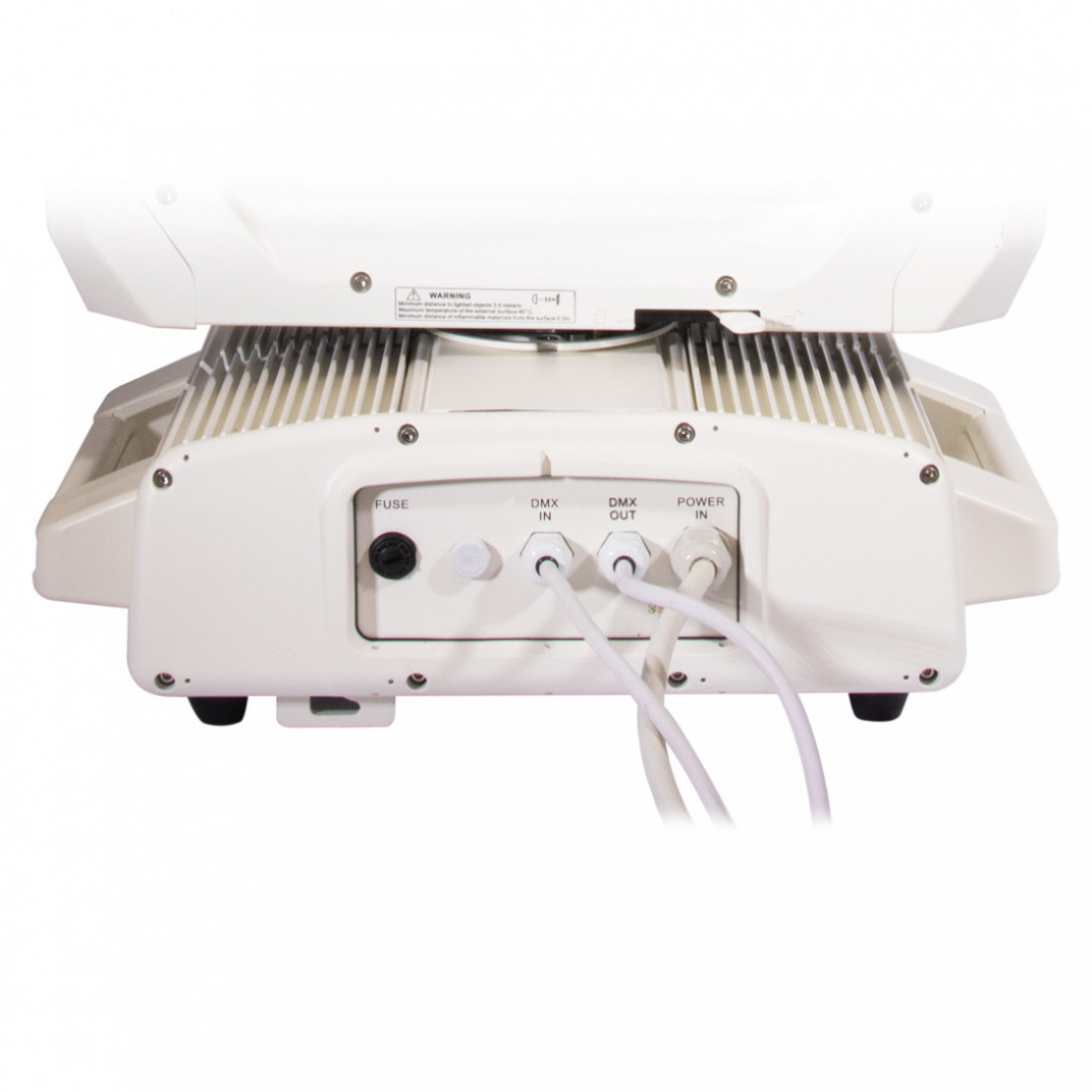

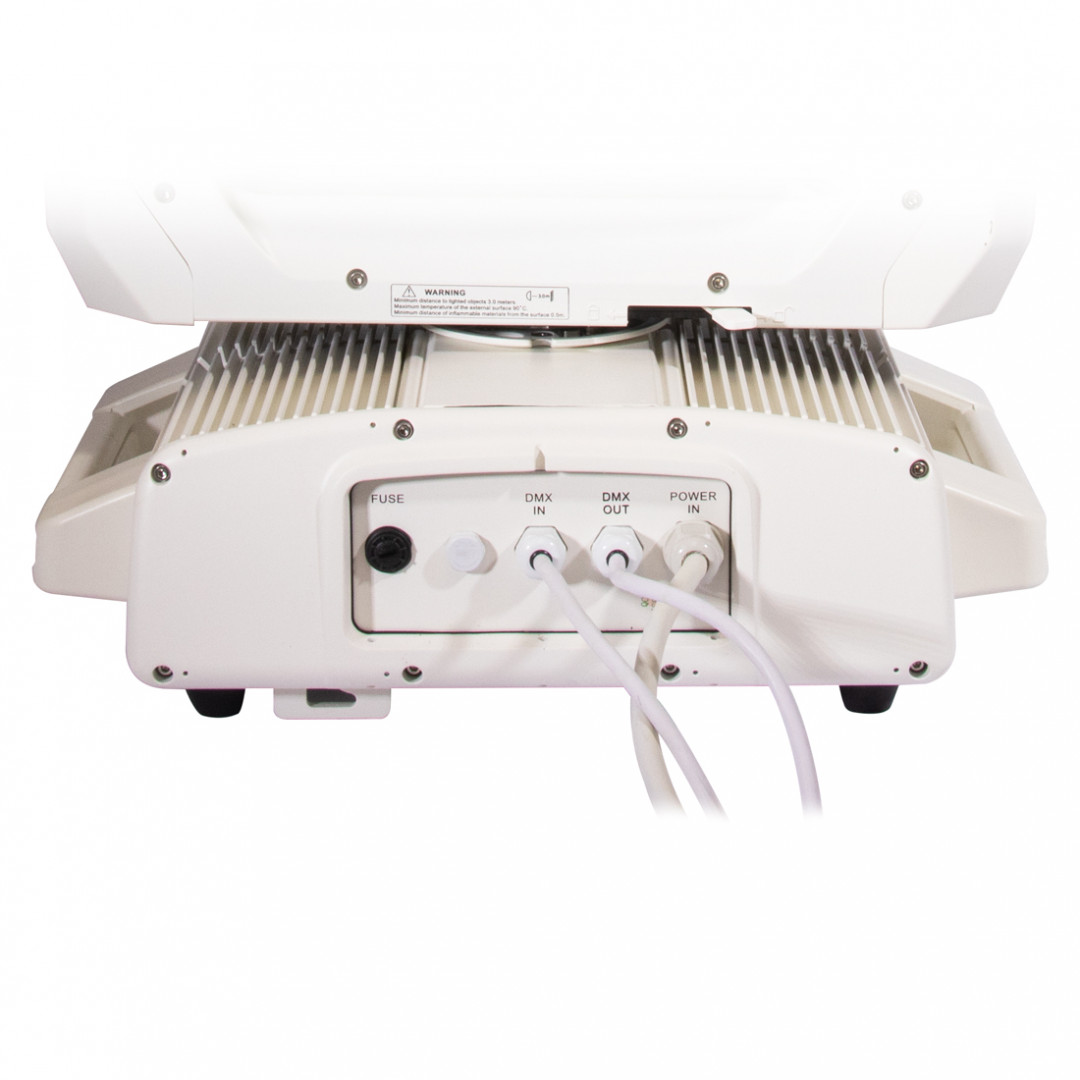

Fixed DMX Cable In/Out
Fixed Power Cable
SIZE / WEIGHT
Length: 444.71mm (17.5 in)
Width: 459mm (17.88 in)
Height: 685mm (26.97 in)
Weight: 35.5kg (78.26 lbs.)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
Max Power Consumption 500W
BTU/hr (+/- 10%) 1,705
FIRMWARE UPDATES
Current firmware can be found here (login required)
