FEATURES

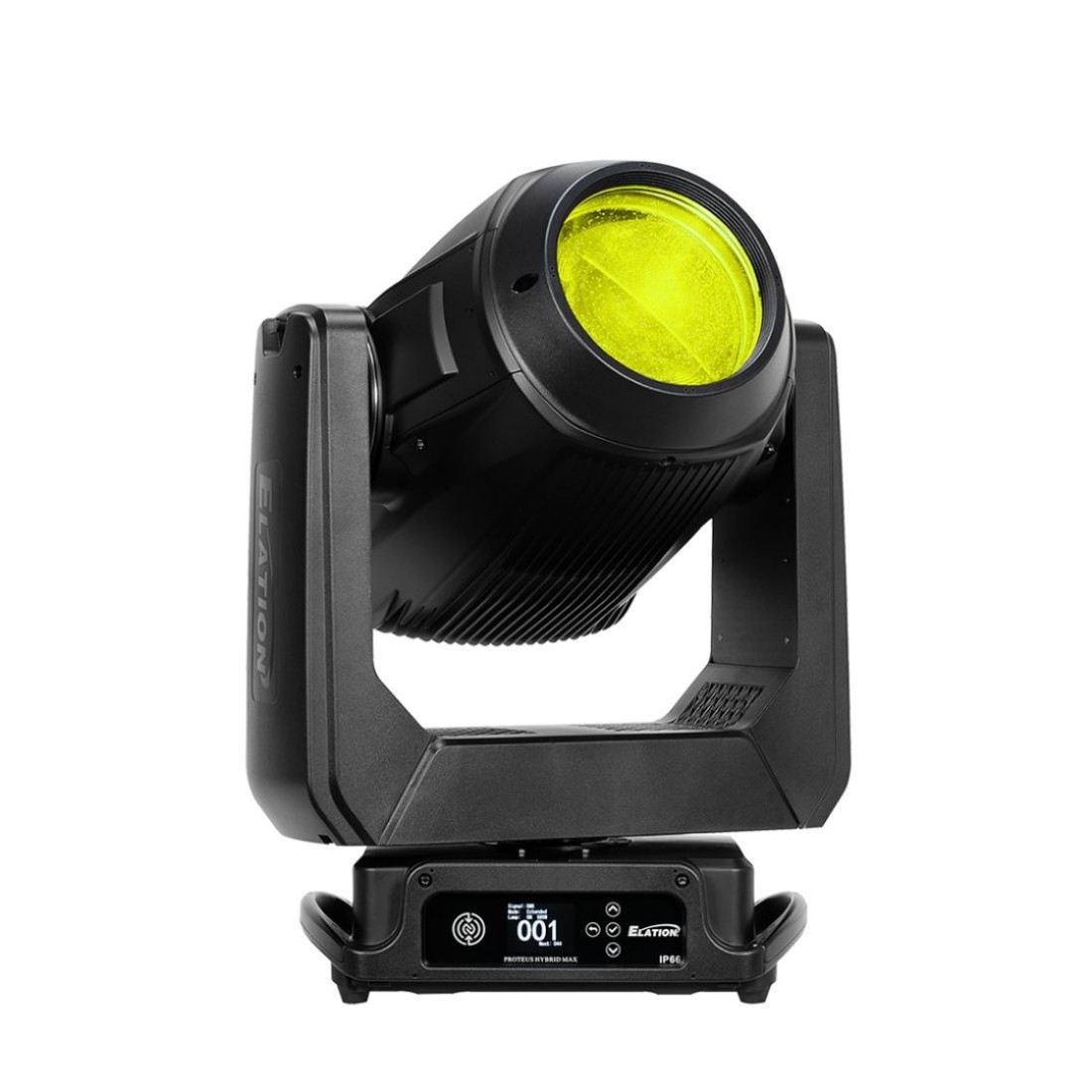

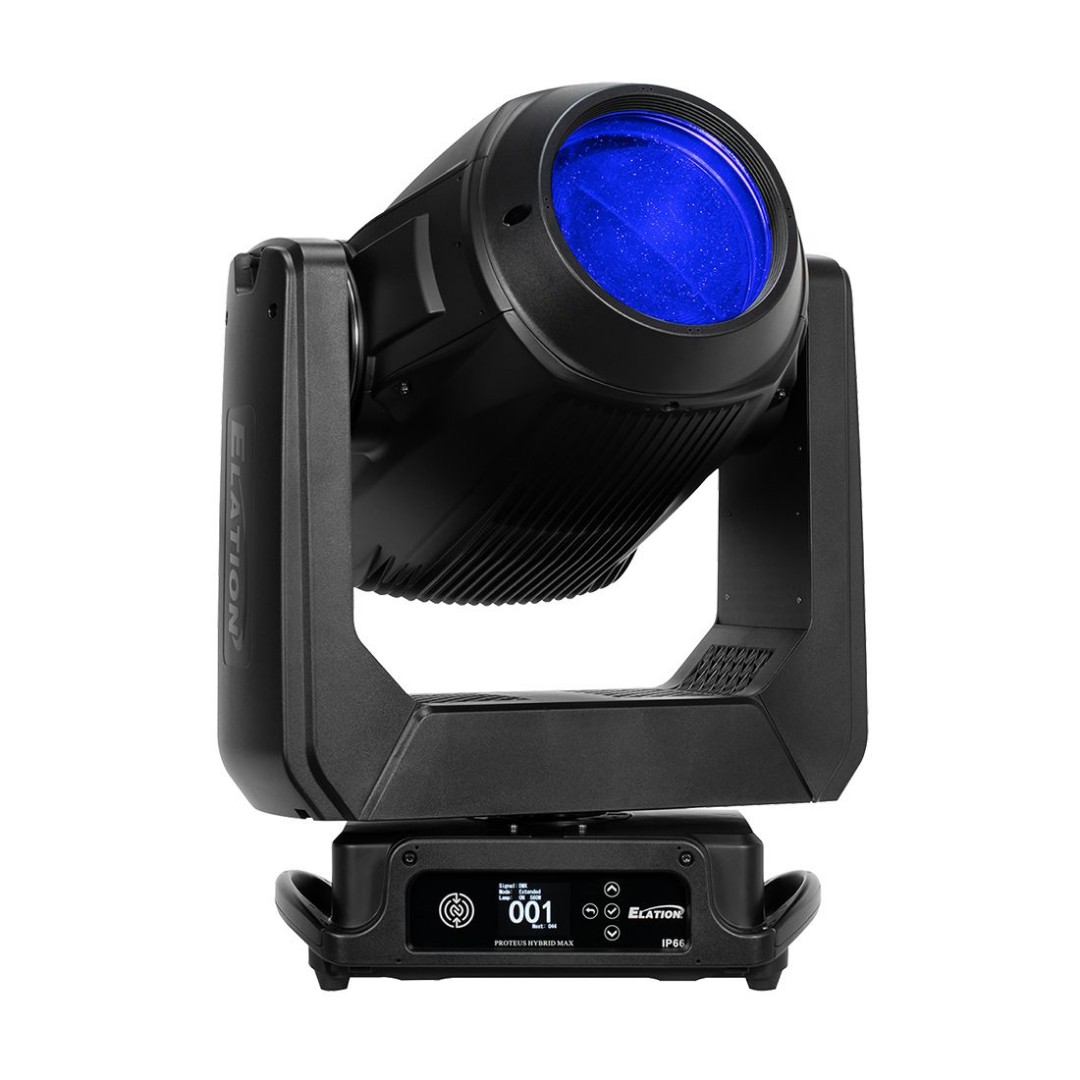

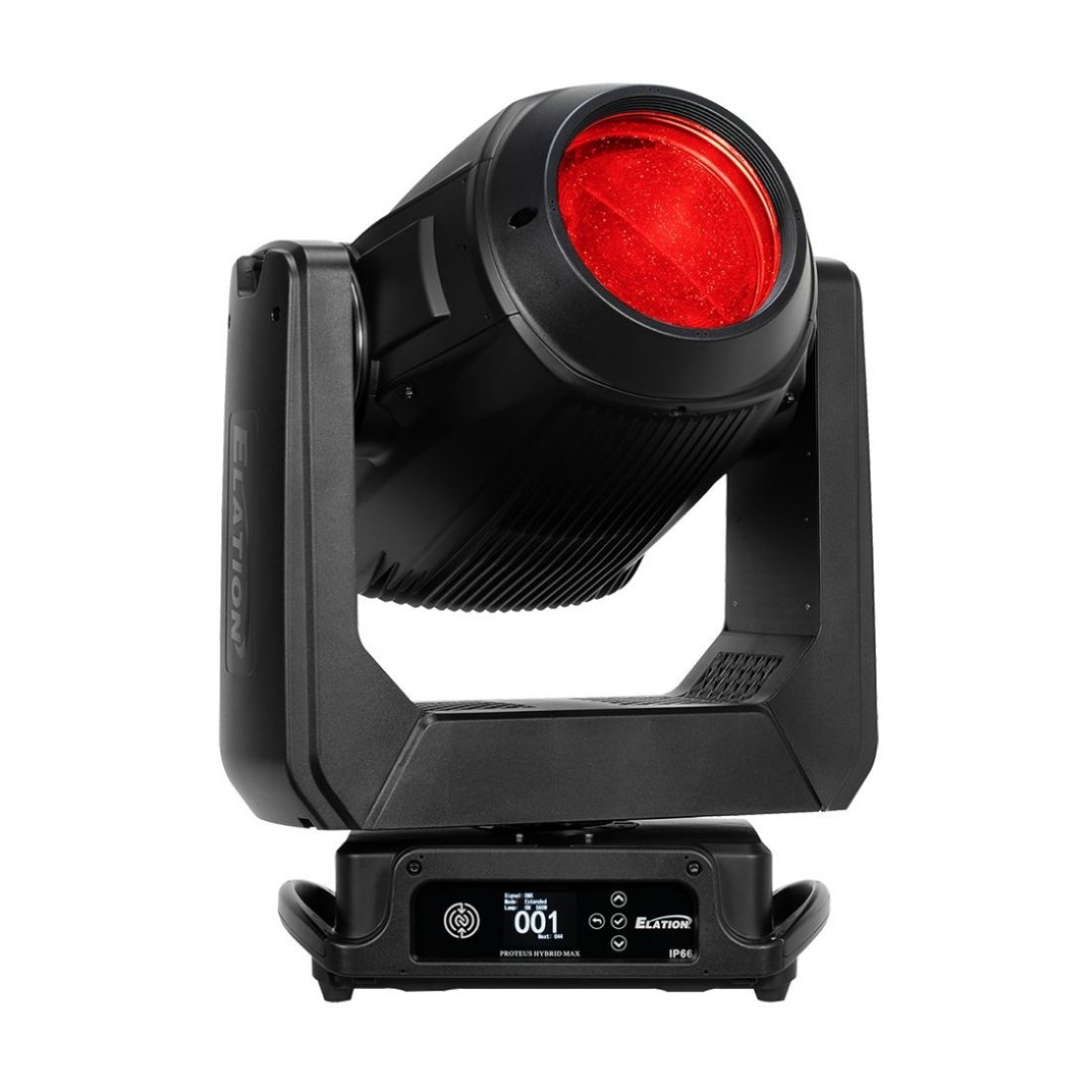

Extreme Output 3-in-1 Beam, Spot, Wash Hybrid Fixture
Flex Lamp Technology 550W plus Smart Hibernation with up to 4,000 Hour Lamp Life
Full CMY Color Mixing System, Variable CTO, Color Wheel
Creative FX Package: 8 Rotating and 16 Static Gobos, Dual and Single-Track Animation, Iris, 4x Prism on Dual Planes, 2x Frost
Ultra-Fast Zoom
360˚ Endless Pan Motion
IP66 rating protects from water and dirt
Sky Motion System for powerful searchlight and skytracker animations





SOURCE

Philips MSD Platinum 500 Flex 550W Lamp
Variable Lamp Power
Automated Lamp Hibernation with Instant Recovery
Up to 4,000 Hour Lamp Life*



*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.



PHOTOMETRIC DATA

22,000+ Lumen Total Fixture Output
Zoom Range 1.8˚ - 45





EFFECTS

Beam, Spot and Wash Modes
Motorized Zoom
Dual Frost Filter for Light Frost/ Full Wash
4 Prisms on Dual Planes
Iris
CMY Color, Gobo, Prism Macros
Motorized Focus with Auto-Focus Feature
High Speed Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 250°





COLOR

Full CMY Color Mixing System
Variable CTO
16 Position Color Wheel





GOBOS

2 Gobo Wheels
8 Interchangeable-Rotating / Indexing Glass Gobos
16 Static-Stamped Metal Gobos plus Animation Track
Dual Track Animation Wheel





CONTROL / CONNECTIONS

2 DMX Channel Modes (32, 43)
(4) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support

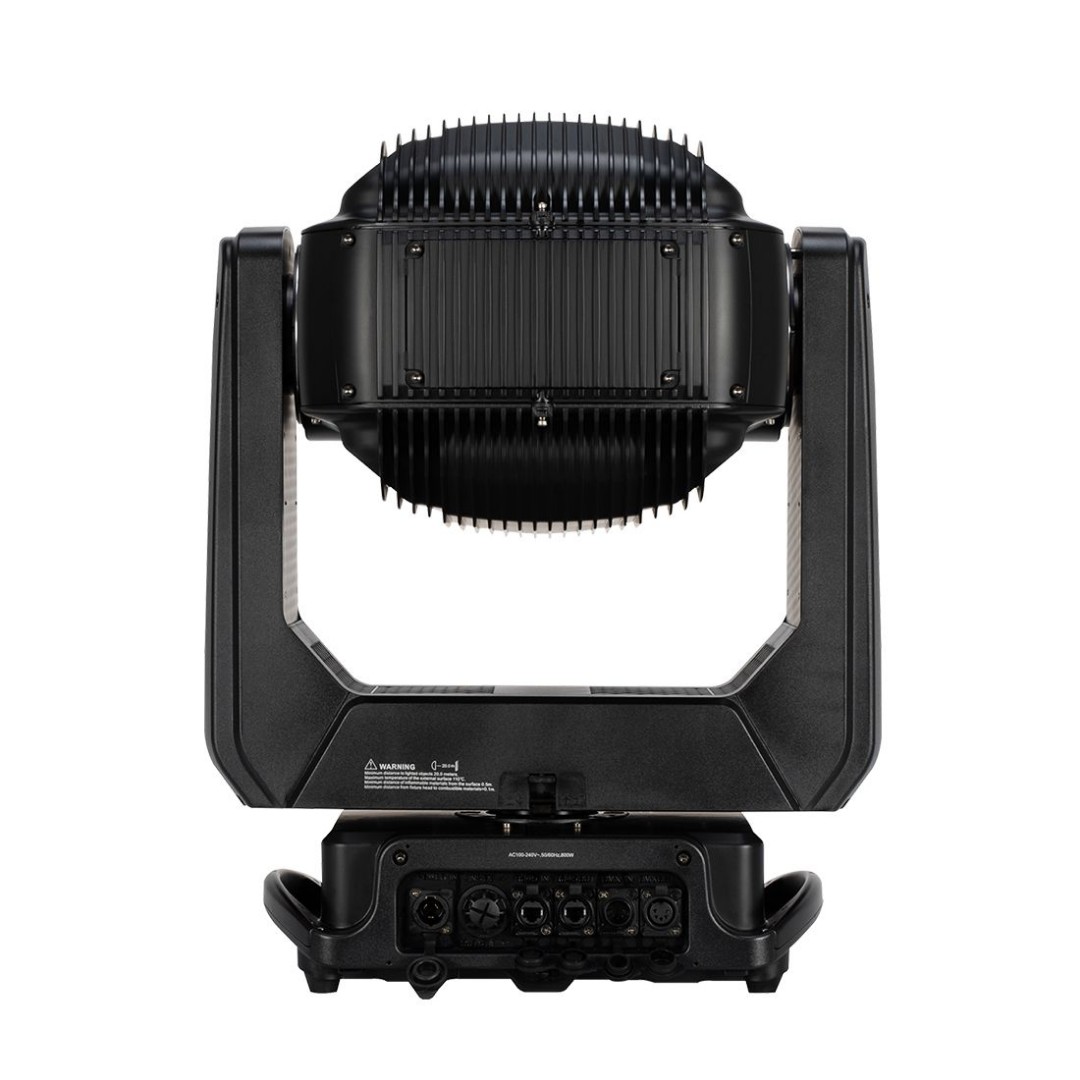

IP66 5pin DMX In/Out
IP66 RJ45 Ethernet In/Out
IP66 Locking Power Cable In/Out


SIZE / WEIGHT

Length: 462mm (18.2")
Width: 477mm (18.8")
Vertical Height: 677mm (26.65")
Weight: 34.5 kg (76 lbs.)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
800W Max Power Consumption
-10°C to 45°C (14°F to 113°F)





FIRMWARE UPDATES

Current firmware can be found here (login required)
