FEATURES

(7) 20W RGBMA+UV LED Array
3200 Lumens, 87 CRI

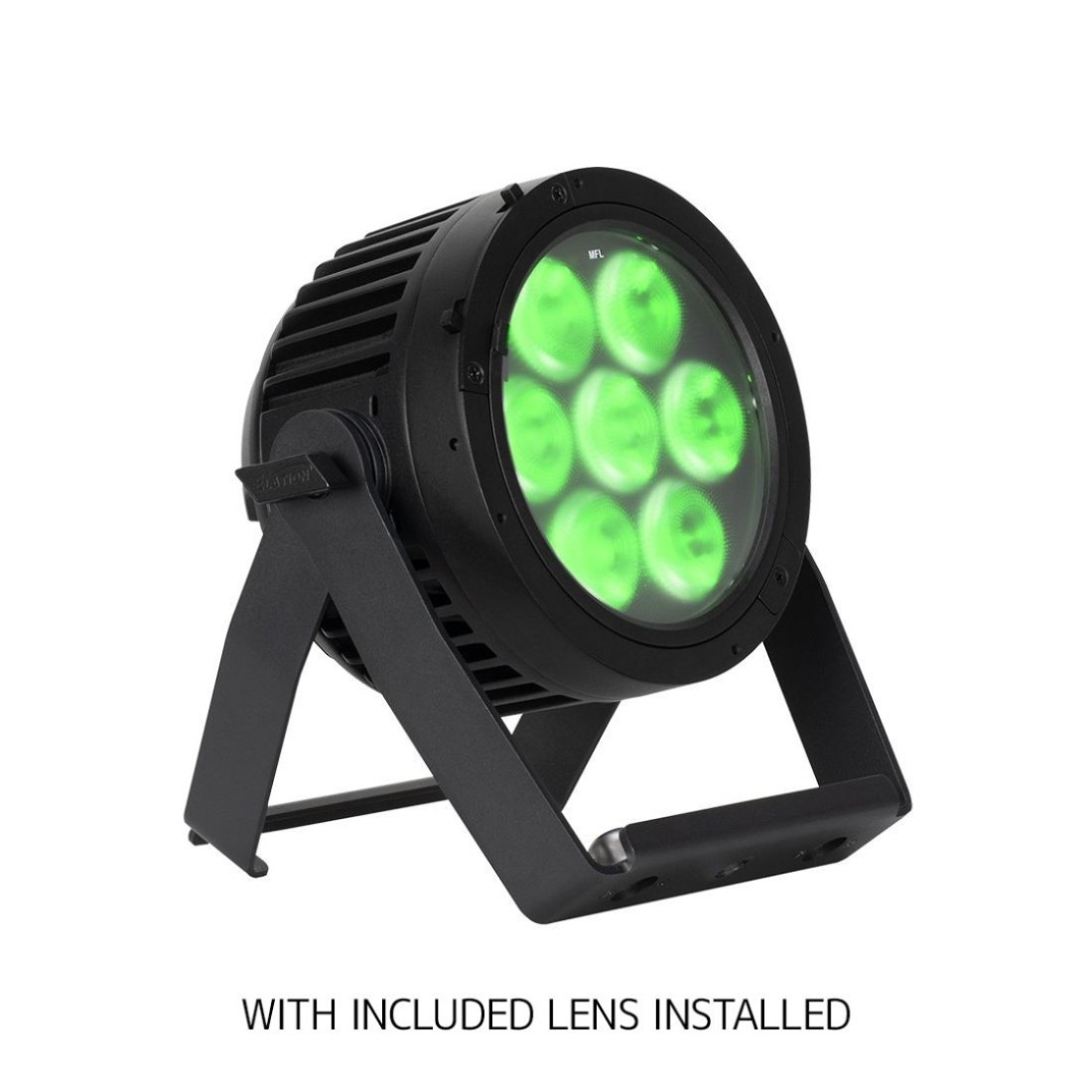

12° Beam Angle, 22° Lens Included
Completely Fanless Cooling
16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
Optional 7.5” Accessory Holder
IP65 Rated

SOURCE

(7) x 20W RGBMA+ UV LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

3200 Total Lumen Output
CRI - 87

EFFECTS

Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR

RGBMA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book

CONTROL / CONNECTIONS

9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
RDM (Remote Device Management)

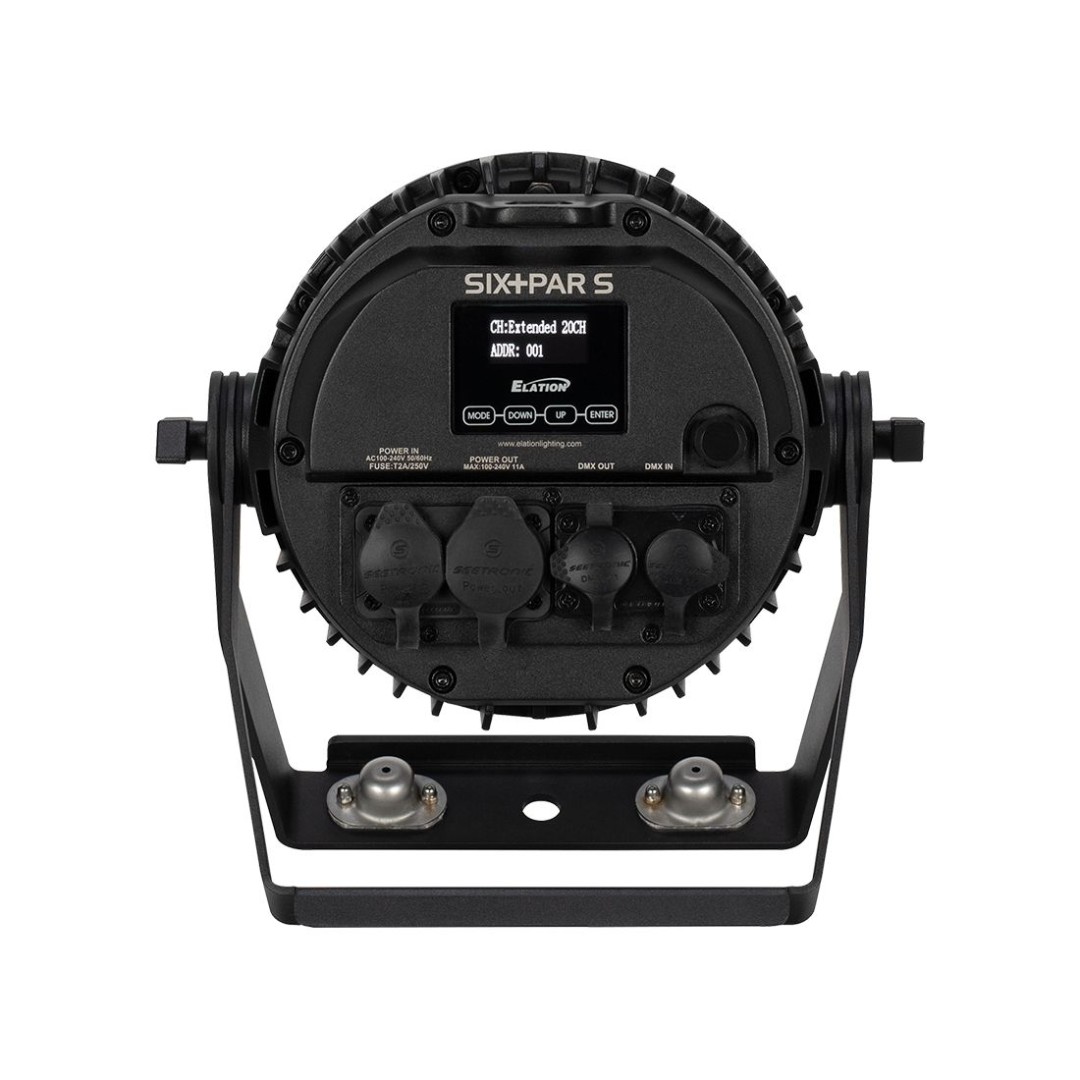

5pin DMX and IP65 Locking Power Cable In/Out


SIZE / WEIGHT

Length: 247mm (9.73”)
Width: 202.6mm (7.98”)
Vertical Height: 245.5mm (9.67”)
Weight: 4.3kg (9.48lbs)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
100W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 341

INCLUDED ITEMS

IP65 Locking Power Cable

OPTIONAL ACCESSORIES

60° Lens
100° Lens
Gel Frame & Holder Kit
7.5" Black Barndoor
