FEATURES

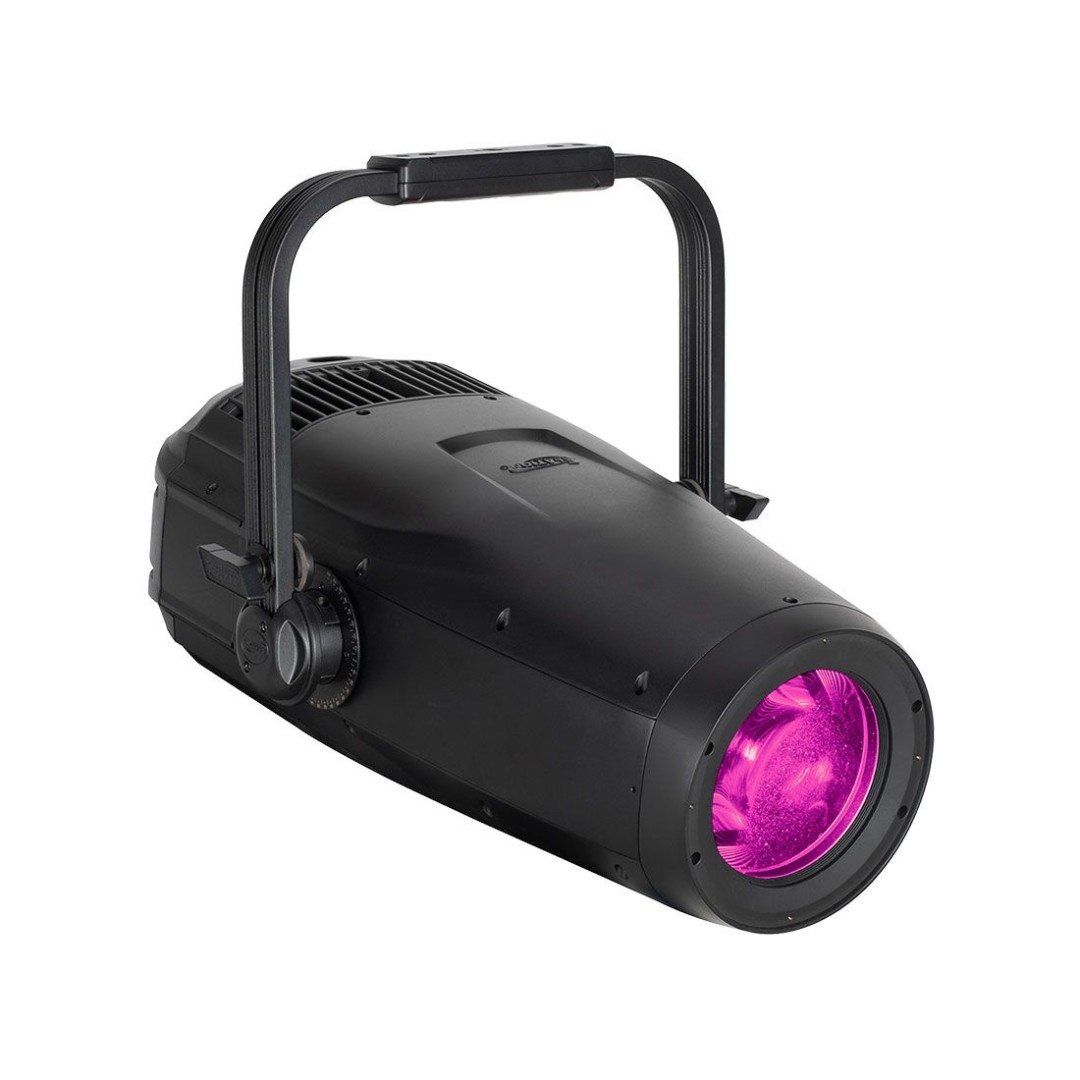

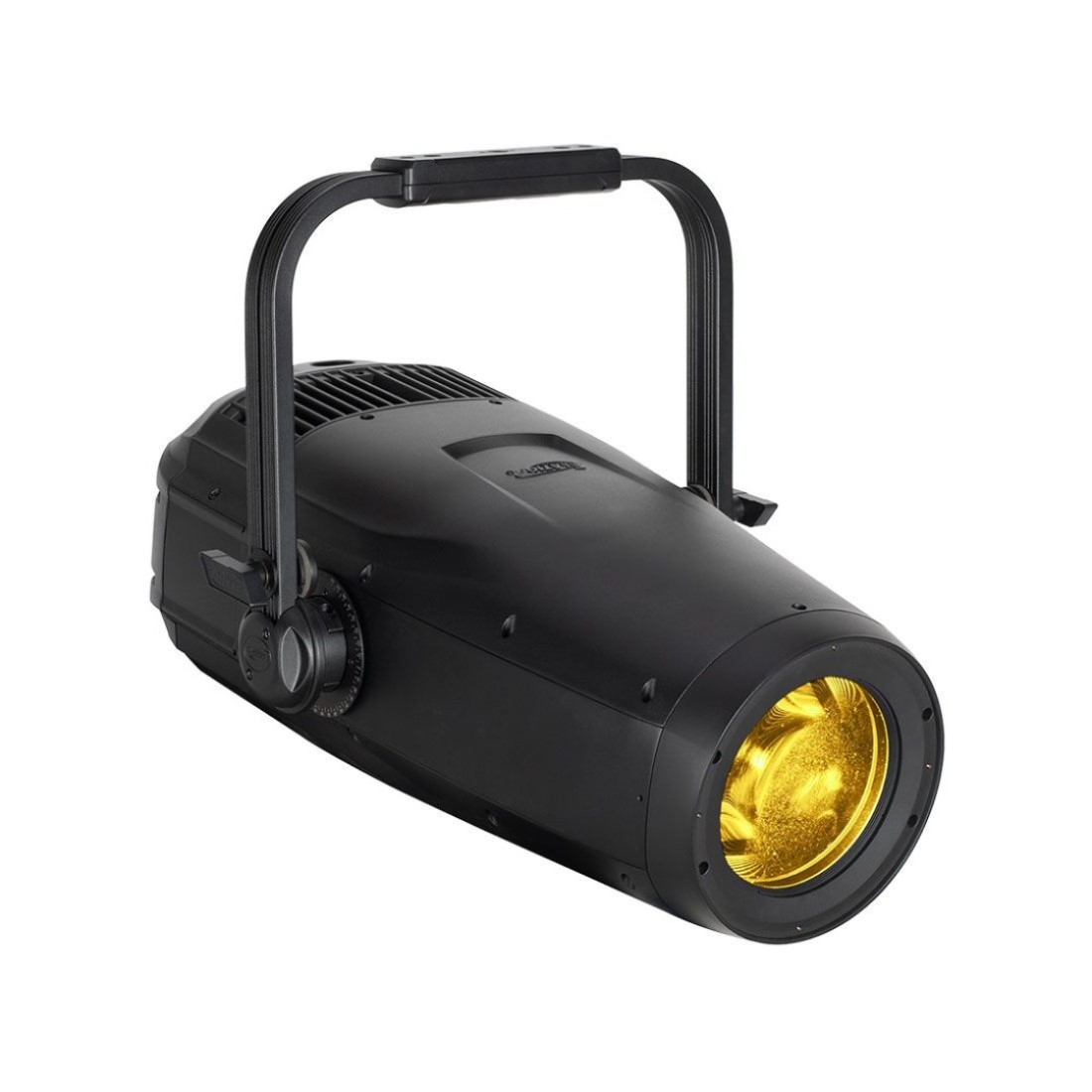

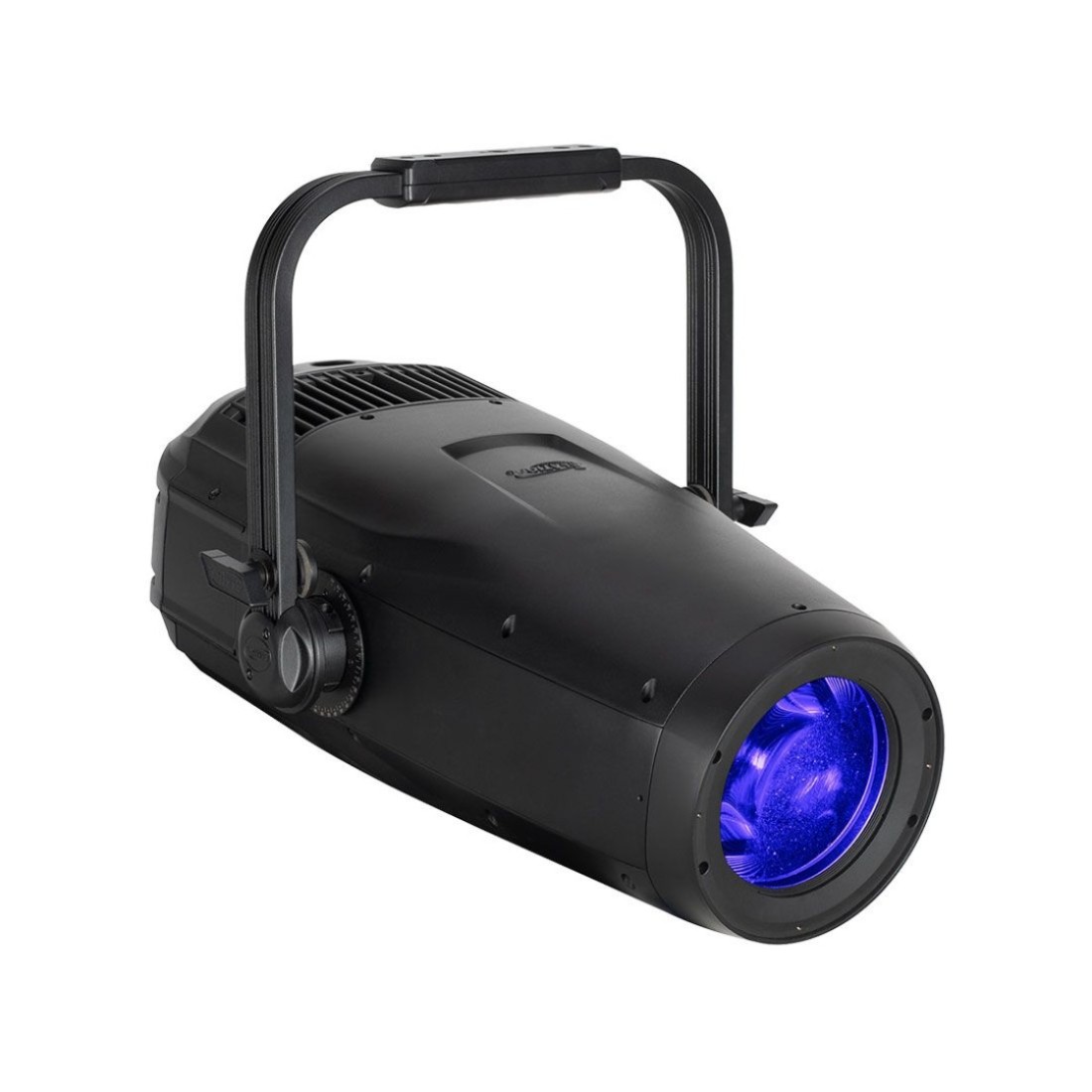

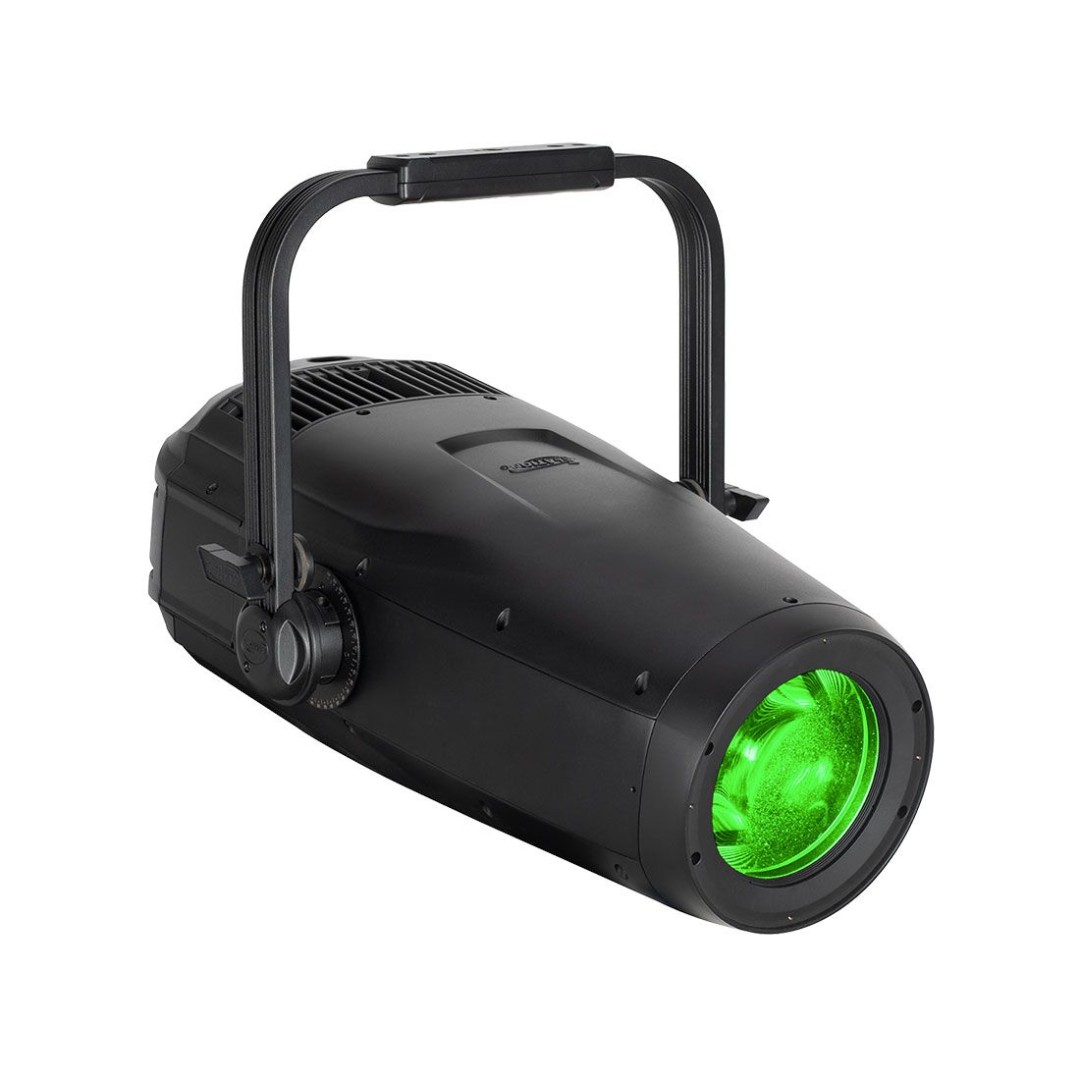

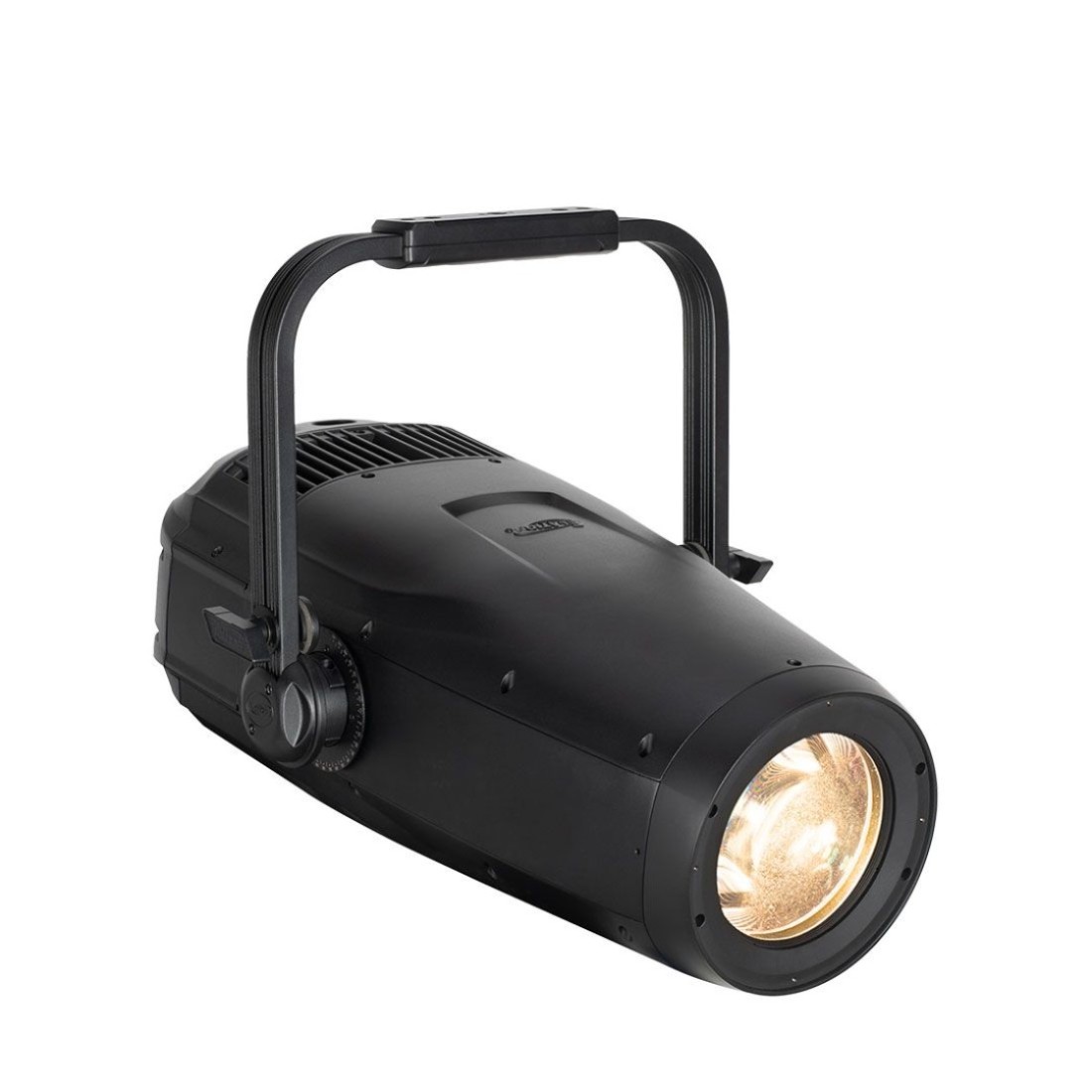

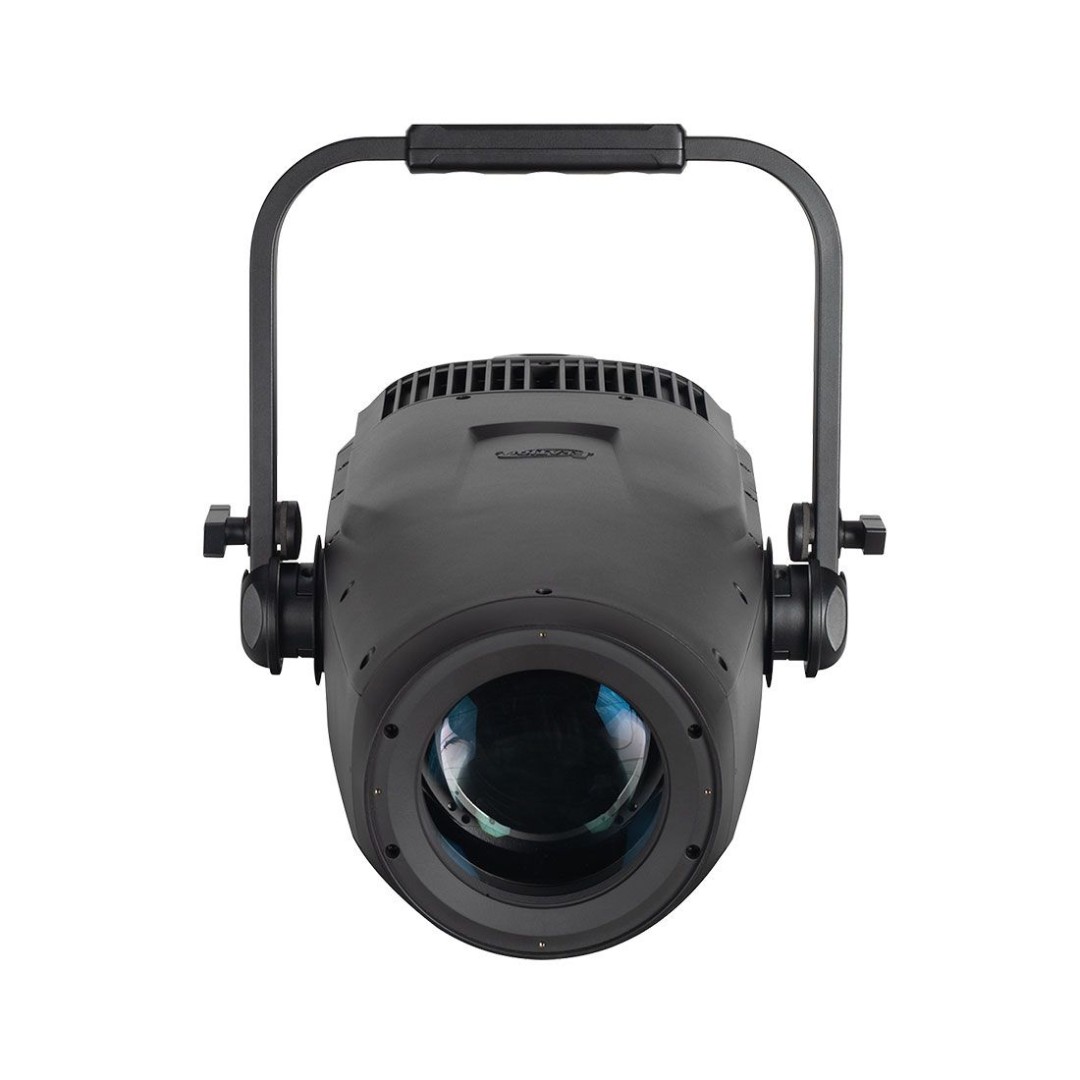

Static full featured automated IP65 spot fixture
Extended color RGBMA LED Engine, 92 CRI
Rotating and Fixed Gobos plus Animation Wheel
Dual Prisms and Frost
Wide Zoom Range from 7° to 50°
Optional Motorized Framing/Iris Module





SOURCE

305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.





PHOTOMETRIC DATA

10,600 Total Lumen Output
CRI 92
Zoom Range 7° - 50°






EFFECTS

Motorized Zoom
Variable Frost Filter
4 Facet Round, 4 Facet Linear Prism
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Optional Framing/Iris Module





COLOR

RGBMA Color Array
CMY and RGB Emulation
Virtual Color Correction 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book





GOBOS

1x 6 Rotating / Indexing Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel





CONTROL / CONNECTIONS

6 DMX Channel Modes (24/32) RGB or CMY (22/28)
6 DMX Channel Modes (Framing) (34/50) RGB or CMY (32/46)
16-bit Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support

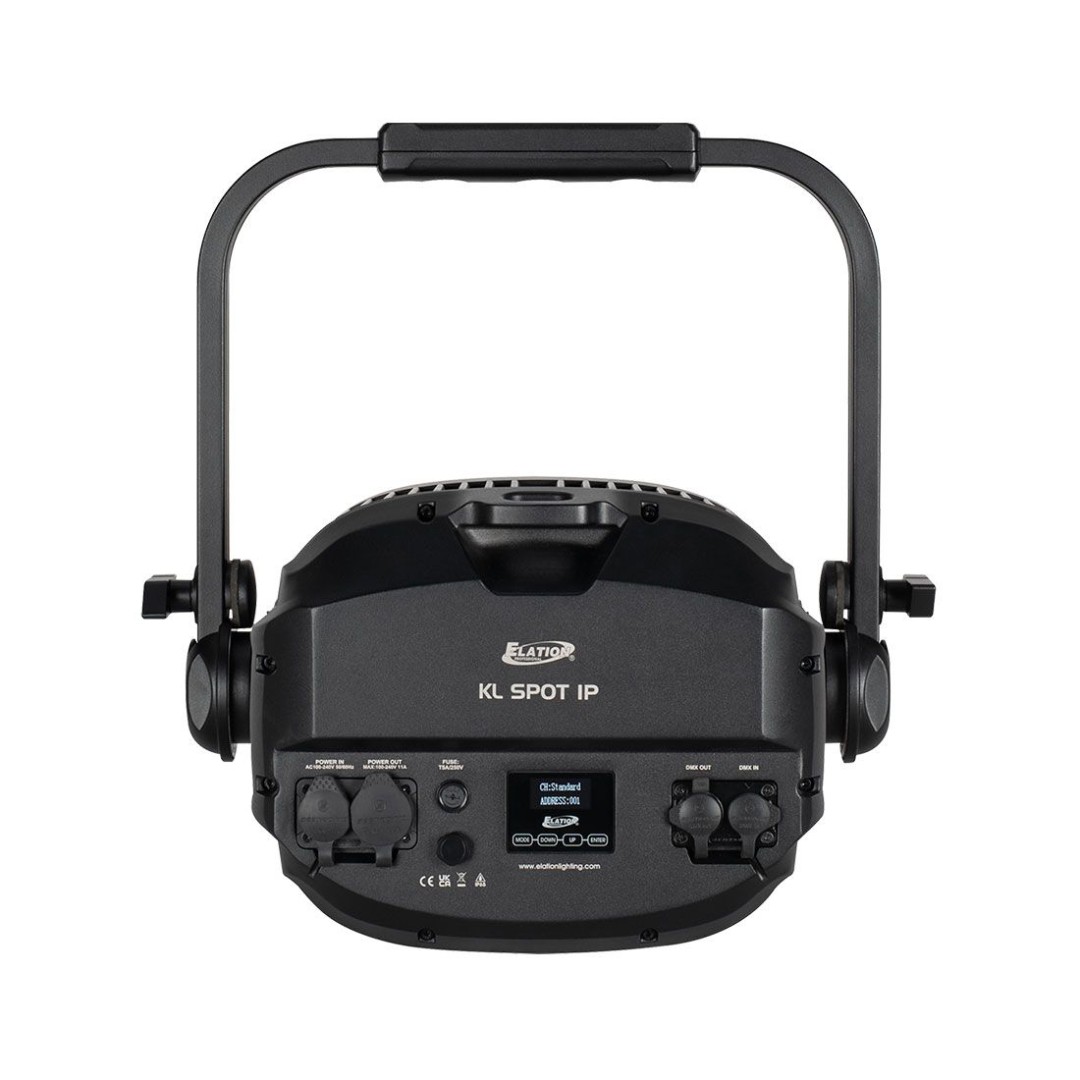

4 Button Touch Control Panel
IP65 5pin DMX In/Out
IP65 Locking Power Cable In/Out





SIZE / WEIGHT

Length: 559.2mm (23.6”)
Length (Yoke 0°): 662.9mm (26.1”)
Width: 445.5mm (17.5”)
Height (Fixture Body): 242.0mm (9.5”)
Height (Yoke 90°): 442.5mm (17.4”)
Weight: 23.1kg (50.9 lbs)
Weight (with Framing Module): 25kg (55.1lbs)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
448W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1406.7





INCLUDED ITEMS

IP65 Locking Power Cable





OPTIONAL ITEMS

Motorized Framing and Iris Module





FIRMWARE UPDATES

Current firmware can be found here (login required)
