FEATURES

90W RGBMA LED Array
Ultra-efficient asymmetrical reflector design
Replaceable Lens
Fanless heat management
Low profile housing
Up to 2 control segments
EdgeLight safety feature
Magnetic fixture alignment
Flicker Free Operation for TV and FILM
DMX, Art-net and sACN support
Power and Data passthrough





SOURCE

90W RGBMA LED Array
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.





PHOTOMETRIC DATA

3000+ Total Lumen Output
CRI 92
TLCI 95





EFFECTS

EdgeLight Safety Feature
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves





COLOR

RGBMA Color Array
Up to Four Control Segments
CMY, RGB Emulation
Variable CCT 2,400K - 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book





CONTROL / CONNECTIONS

11 DMX Channel Modes (1ch, 4ch, 4ch, 4ch, 12ch, 11ch, 16ch, 13ch, 20ch, 19ch, 32ch)
4 Button Control Panel, LED Display
RDM (Remote Device Management)

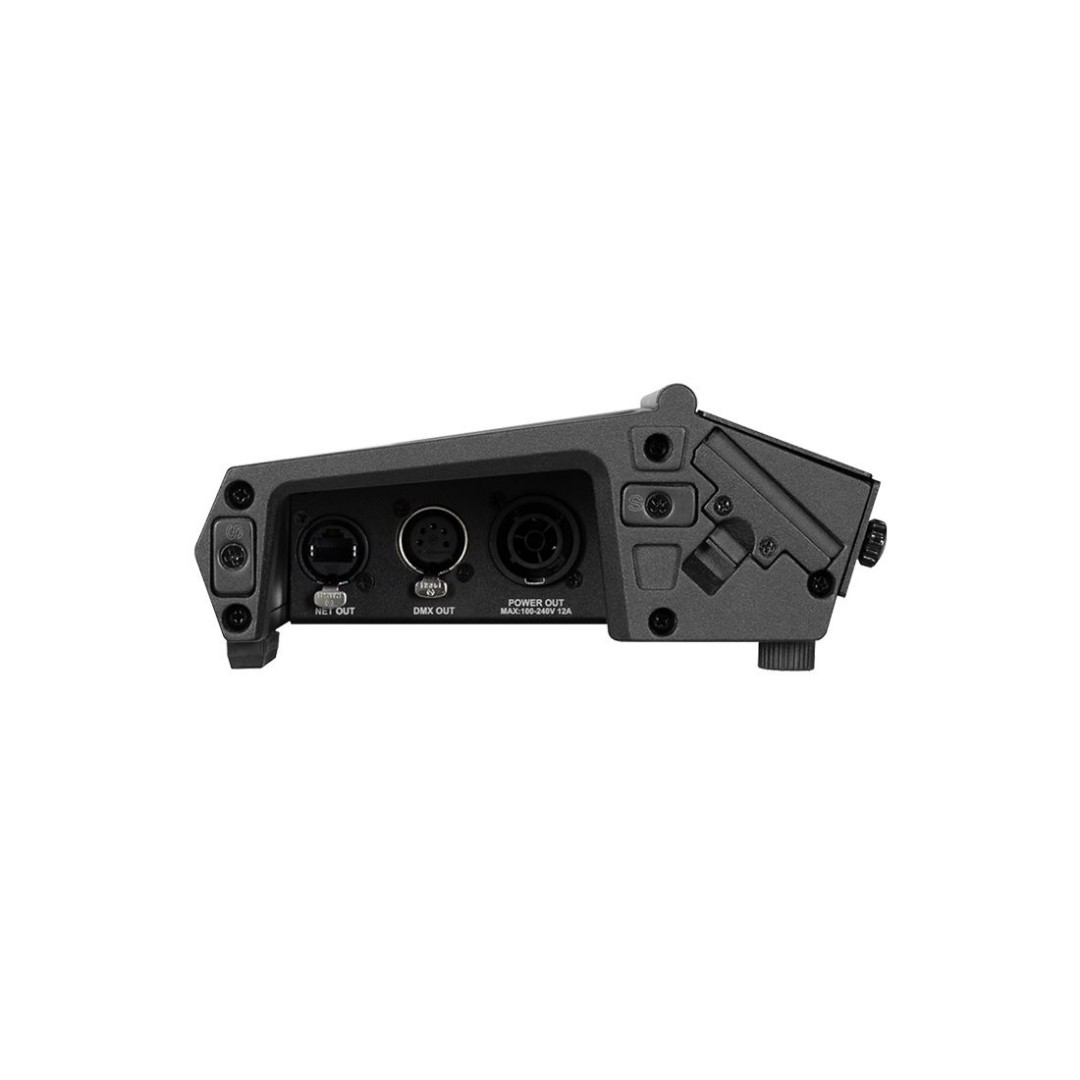

5pin DMX In/Out
RJ45 Locking Ethernet In/Out
IP65 Locking Power Cable In/Out





SIZE / WEIGHT

Length: 500 mm (19.68")
Width: 198 mm (7.8")
Height: 85 mm (3.35")
Weight:4.3 kg (9.47 lbs.)





ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
100W Max Power Consumption
-15°C to 45°C (5°F to 113°F)


INCLUDED ITEMS

2x Omega Bracket
1x Frost Filter
1x Barndoor
IP65 Locking Power Cable
