Limelight Par L

Артикул: 1237000278

Цена: 0 KZT

The LIMELIGHT PAR L engine features (12) 60W RGBL LED’s, capable of producing 7000+ lumens, provides high output for saturated color mixing, and the wide color spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even color and light distribution throughout the beam. The fixture also features a wide zoom range from 5° to 42°. The smooth and responsive effect provides a well-defined narrow beam for mid-air effects and long throw distances as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects.
To expand the control capabilities on the LIMELIGHT PAR L, precise color temperature control via a dedicated variable CCT control channel has been integrated. A CMY emulation mode has also been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.
The IP65 housing includes an integrated gel frame holder that can accommodate optional accessories. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.
The LIMELIGHT PAR L is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater, Houses of Worship and Cruise ships.

ТЕХНИЧЕСКИЕ ДАННЫЕ

FEATURES

(12) 60W RGBL LED Array
7000+ Lumens, (TBD) CRI
5°- 42° Beam Angle
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
IP65 Rated





SOURCE

(12) 60W RGBL LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA

7000+ Total Lumen Output
CRI - TBD
TLCI - TBD
Zoom Range 5° - 42°
Beam Angle: 5° - 42°
Field Angle: 8° - 60°





EFFECTS

Dual Zone LED Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves





COLOR

RGBL Color Array
CMY Emulation
Variable CCT 2700K - 8500K
Virtual Gel Swatch Book

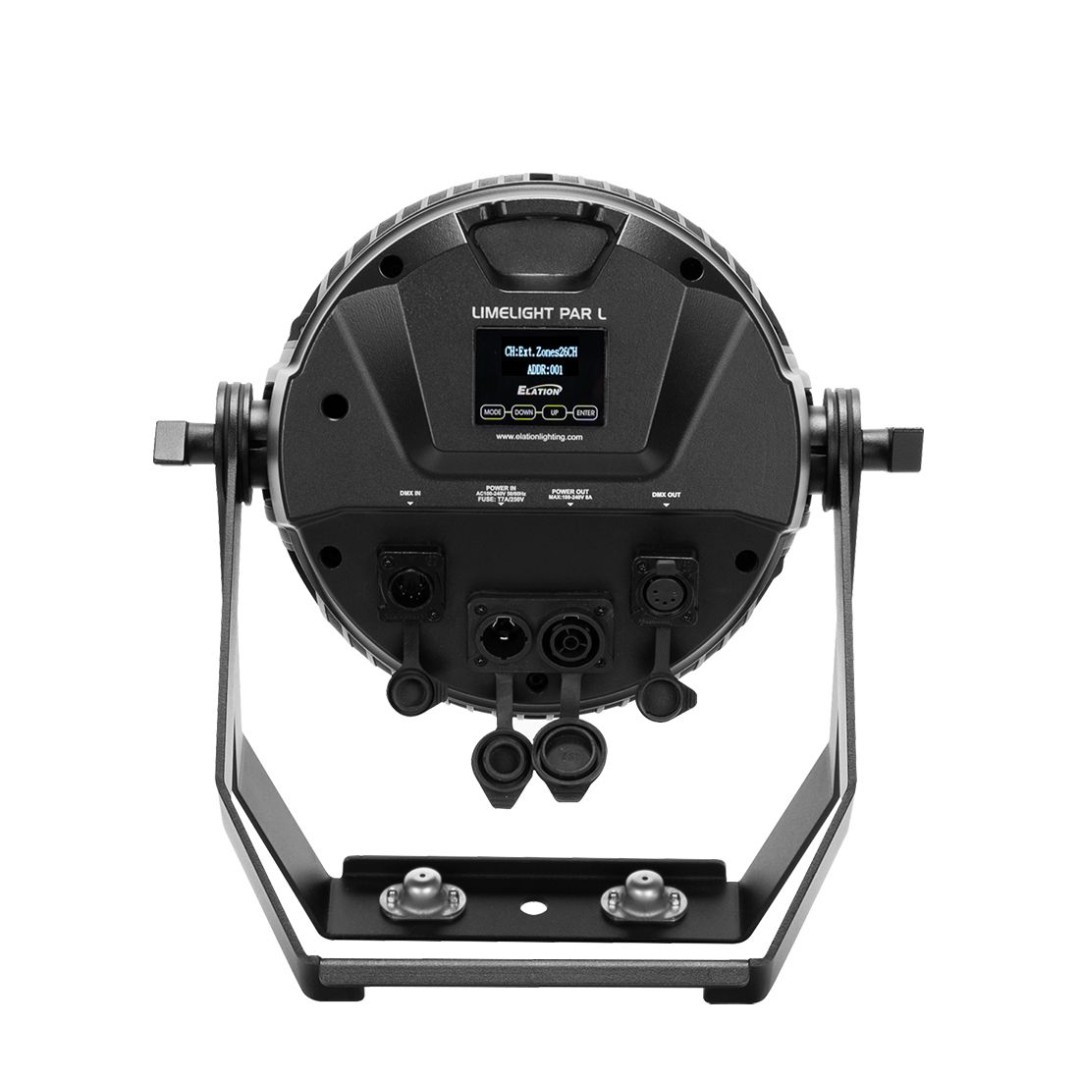

CONTROL / CONNECTIONS

7 DMX Channel Modes (4ch/13ch/16ch/14ch/18ch/18ch/26ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)
5pin DMX and IP65 Locking Power Cable In/Out


SIZE / WEIGHT

Length: 346mm (13.6”)
Width: 341mm (13.4”)
Vertical Height: 451mm (17.8”)
Weight: 10.01kg (22.05lbs)





ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
570W Max Power Consumption
Power Thru Capacity: @110V: 2 Units; @240V: 6 Units
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 1943.7





INCLUDED ITEMS

IP65 Locking Power Cable





OPTIONAL ACCESSORIES

Gel Frame
Black Barndoor
