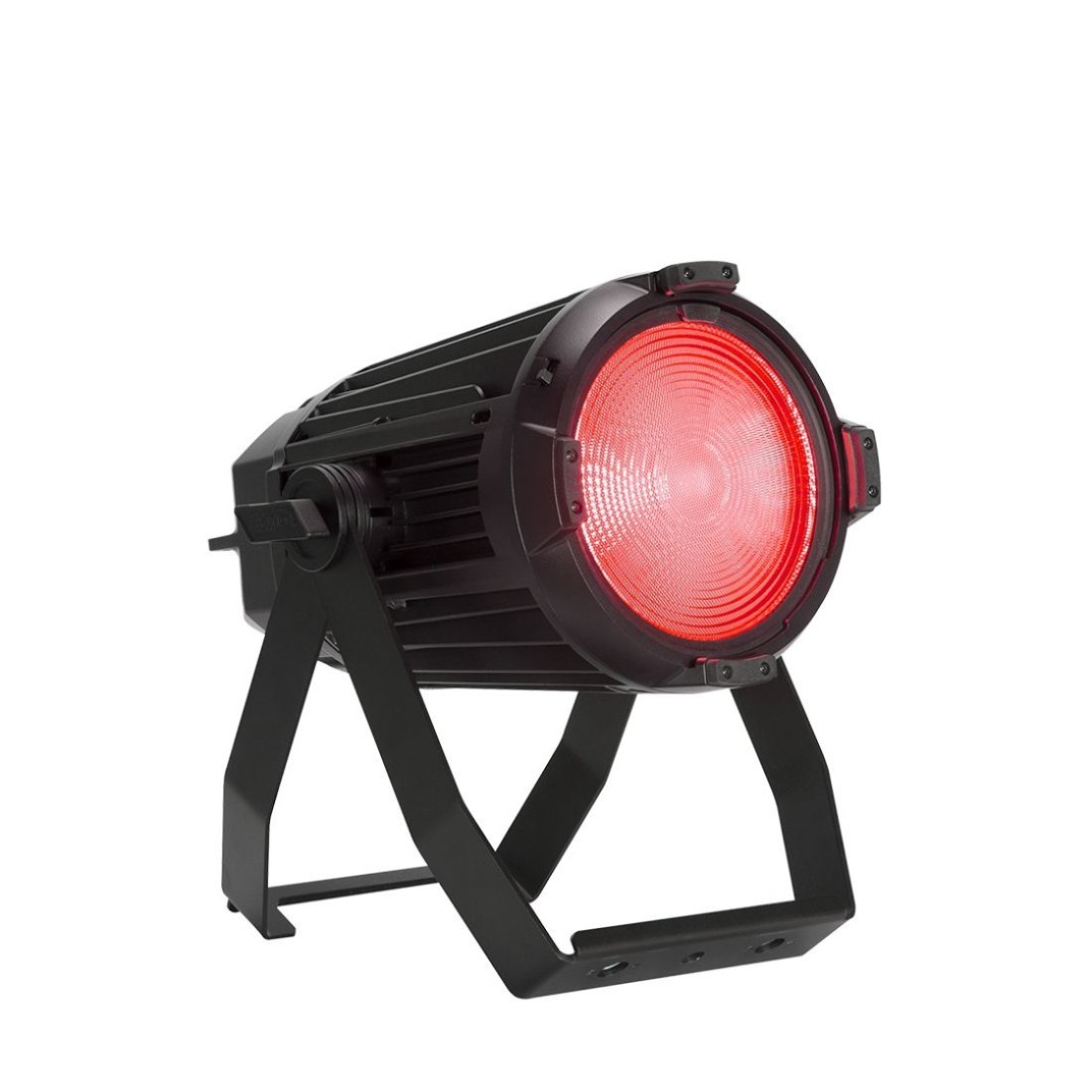

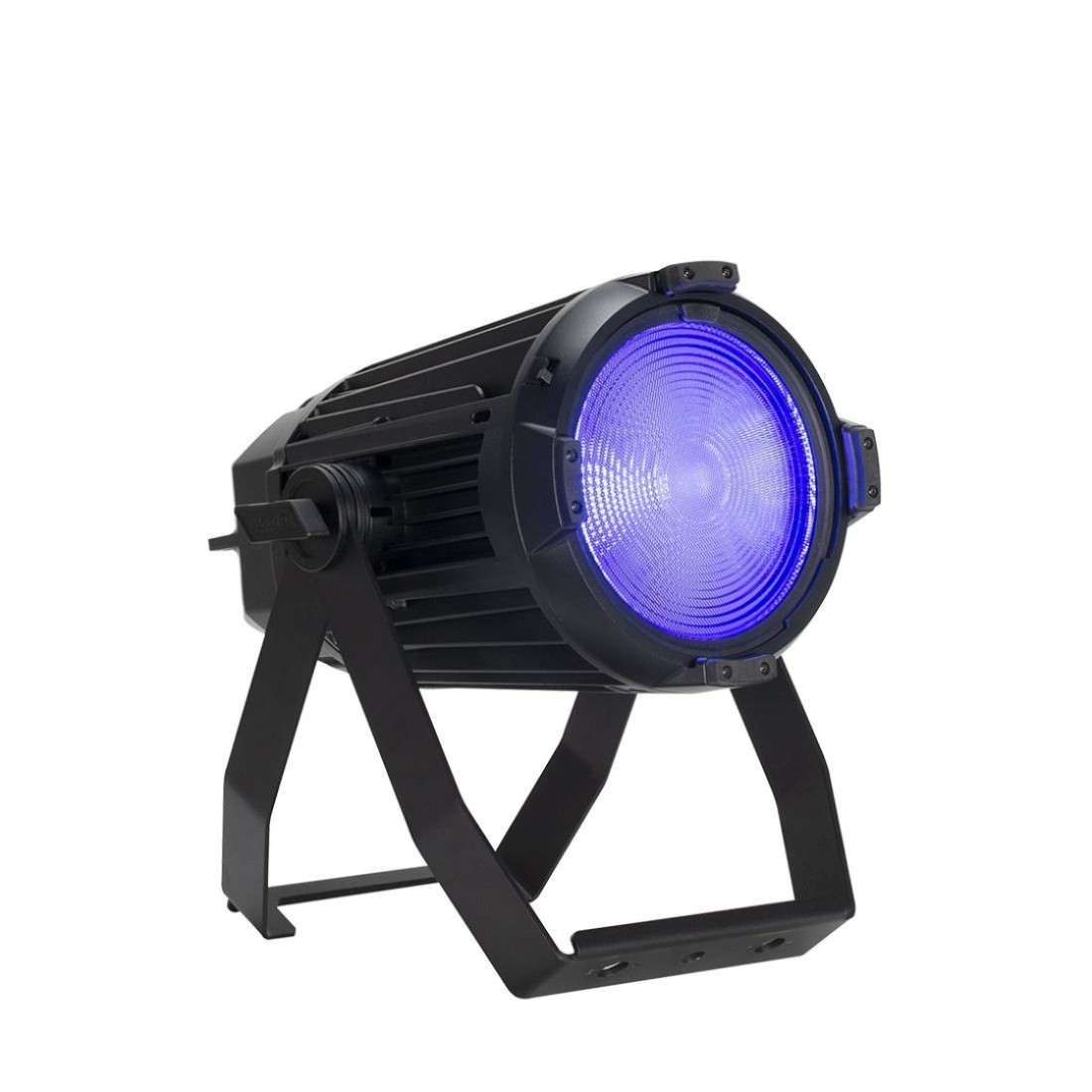

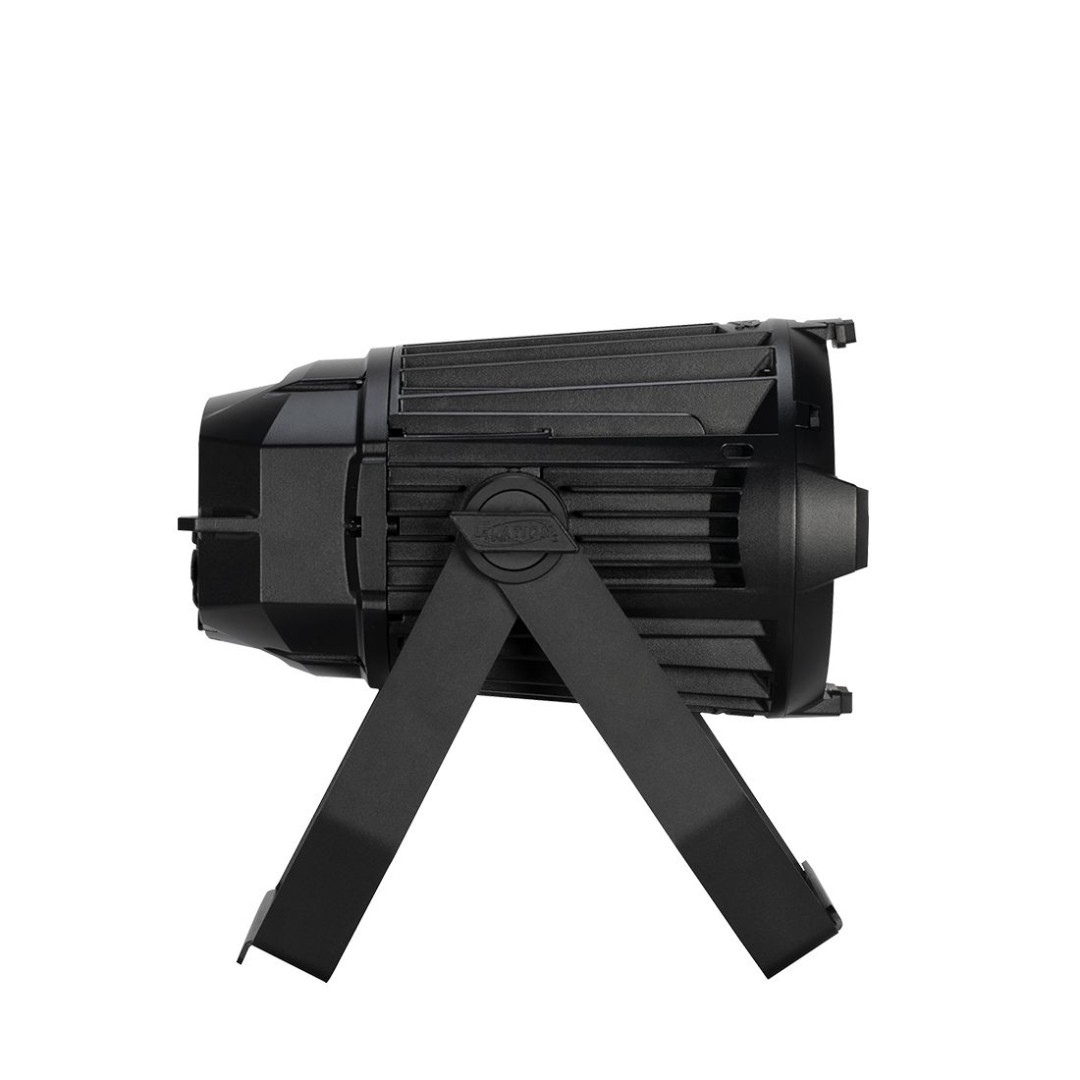

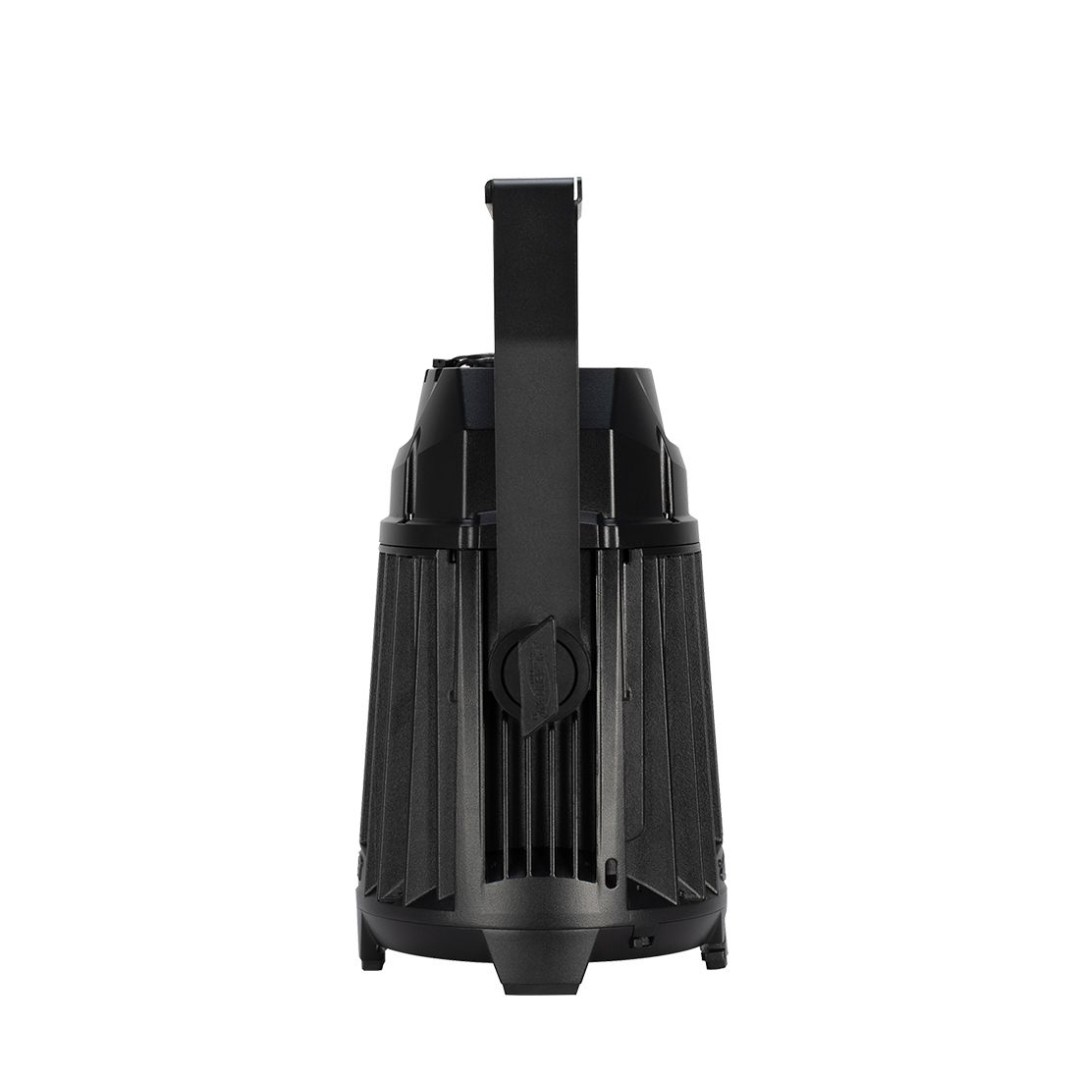

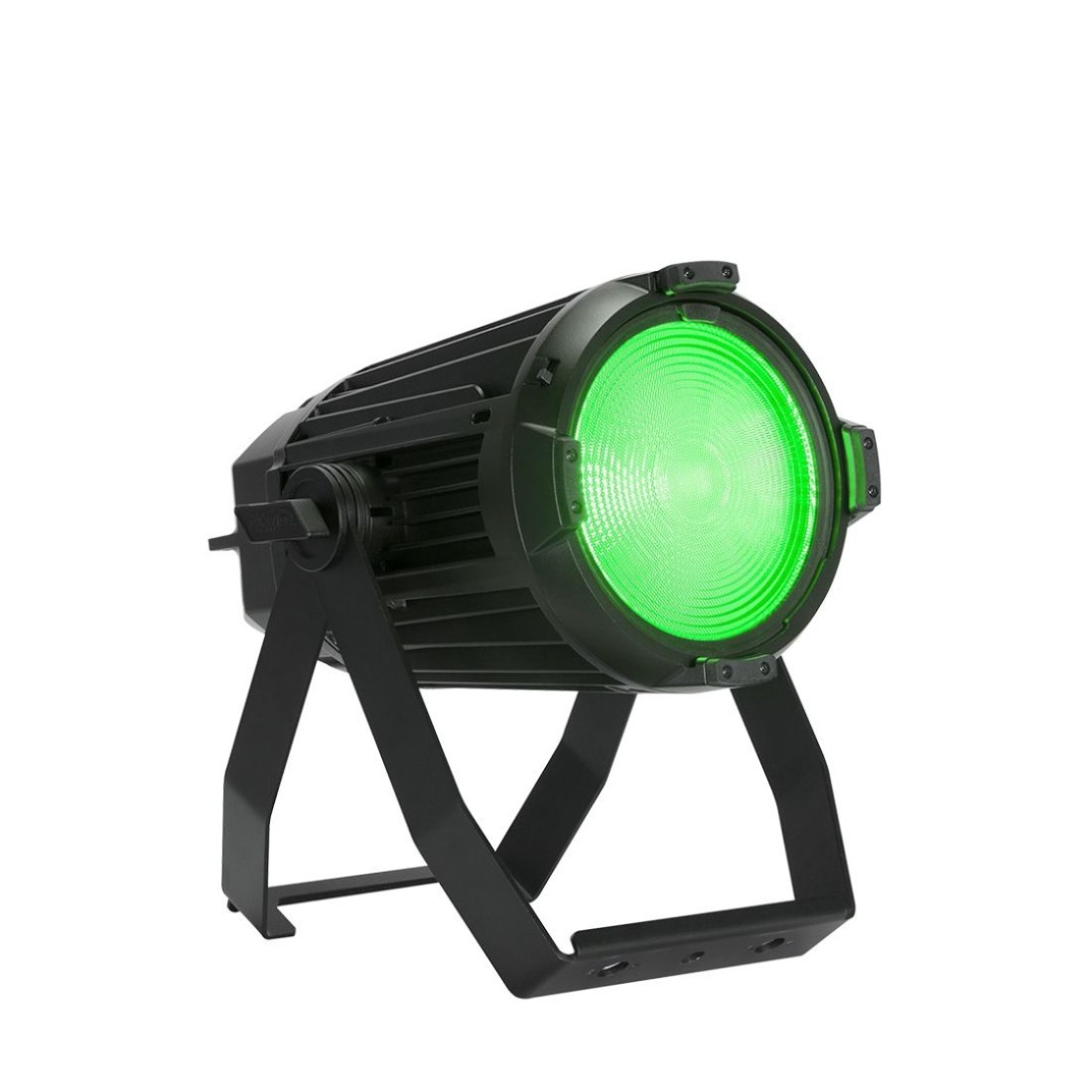

KL PAR FC IP
Артикул: 1237000279
Цена: 0 KZT
The KL PAR FC IP is an ideal key, fill, and area wash light source for outdoor events and any production requiring outstanding performance, color quality and weather protection. It incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 12.000 field lumens, brighter than existing 750W Tungsten PAR fixtures, and is delivered with multiple lens choices that are easy to replace in the field. Outstanding color rendering quality with a high CRI of 93 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be suspended using any standard clamp or floor mounted using the integrated stand. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

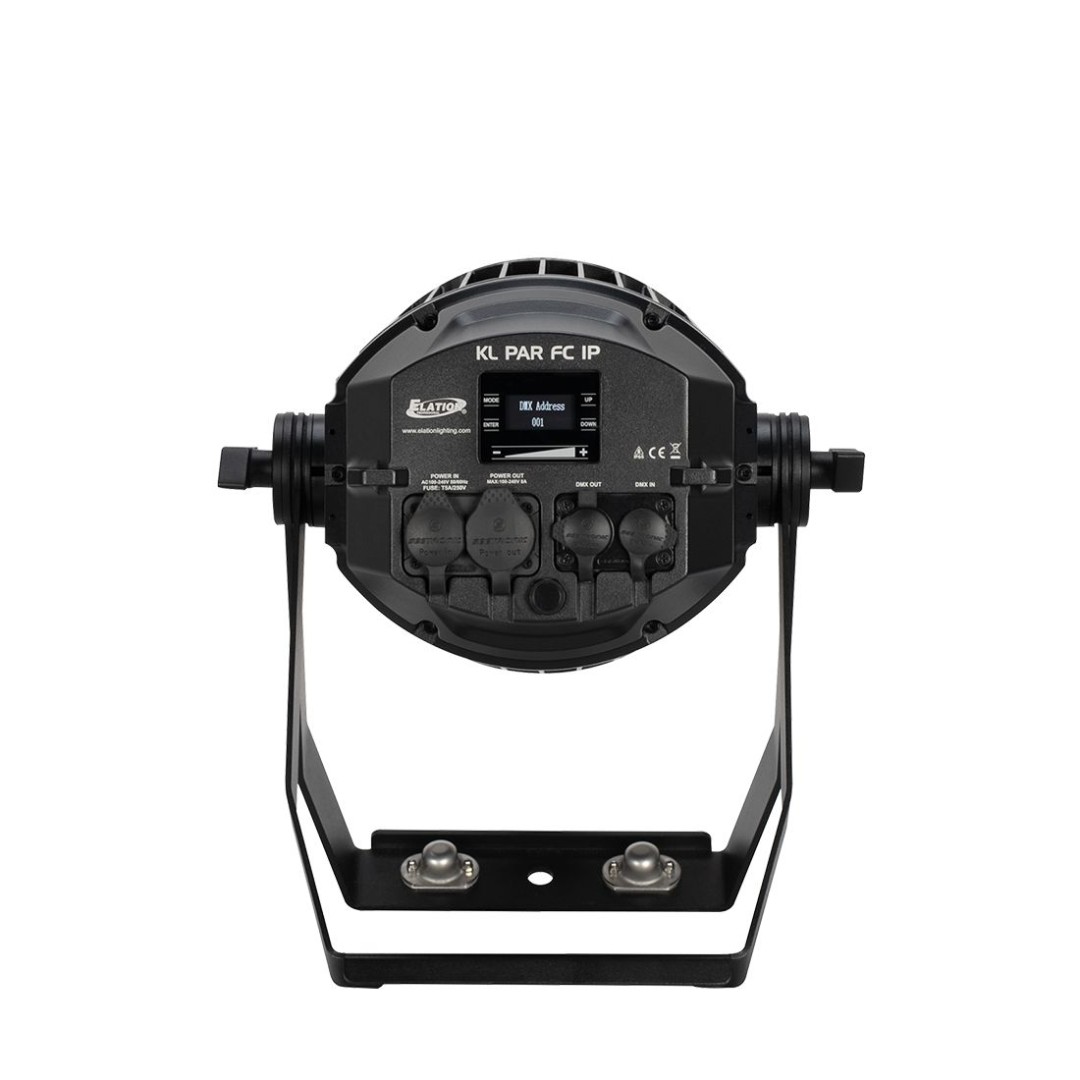

The KL PAR FC IP can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access and standalone operation using the included touch bar encoder and display, providing instant control of Intensity, Color Temperature, Green shift, and other important settings. The display and encoder are conveniently positioned at the backside of the fixture to ensure unobstructed access when mounted.
ТЕХНИЧЕСКИЕ ДАННЫЕ
FEATURES
360W RGBMA LED EngineDynamic White + Full Spectrum Color Control
12,000 Total Fixture Lumen Output
Field Replaceable Lenses
Stand-Alone Control with Touch Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate and Fan Speed Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
7.5" Gel Frame and Four Lenses (11°, 22°, 30°, 52°) Included
IP65 Rated
SPECIFICATIONS
SOURCE
360W 6000K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
12.000 Total Lumen OutputCRI 93
TLCI 95
INCLUDED LENSES
VNSP (11°)
NSP (22°)
MFL (30°)
WFL (52°)
EFFECTS
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
6 DMX Channel Modes (1, 6, 12, 19, 9, 15)
Manual and DMX Controlled Dimmer and Color
Single Touch Bar Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
IP65 5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 310mm (12.2")
Width: 217mm (8.54”)
Vertical Height: 454mm (17.87”)
Weight: 7.5kg (16.53 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
275W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 1278.75
INCLUDED ITEMS
7.5" Gel Frame
4x Lenses (11°, 22°, 30°, 52°)
IP65 Locking Power Cable
