FEATURES
IP65 Rated Exterior High-Power UV Wash Luminaire
Scoop LED Reflector Design
90 Degree Wide Beam Angle
365nm Peak True UV Wavelength
Zero Visible Light
Output Optional Black Glass Diffusion Filter

SPECIFICATIONS

SOURCE
(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
90 Degree Wide Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Manual Adjustable Tilt Position

CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 438mm (17.24”)
Width: 148mm (5.82”)
Vertical Height: 287mm (11.29”)
Weight: 8.4 kg (18.5 lbs.)

ELECTRICAL
AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption

THERMAL
Ambient Temperature (Ta max) 40°C (104°F)
Air Cooled

OPTIONAL ACCESSORIES

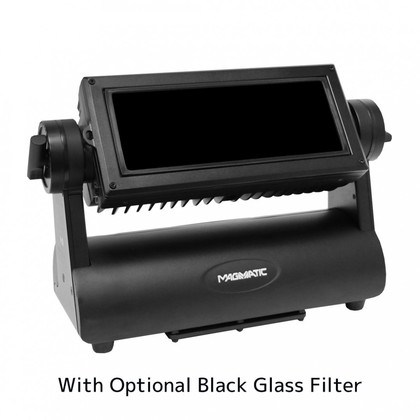

Black Glass Filter (see below in Related Products) - For the Prisma Wash 25 and Prisma Wash 100 fixtures. It will create a complete blackout effect, only allowing UV rays to penetrate, it is easy to install within seconds.

FIRMWARE UPDATES
Current firmware can be found here (login required)
