FEATURES

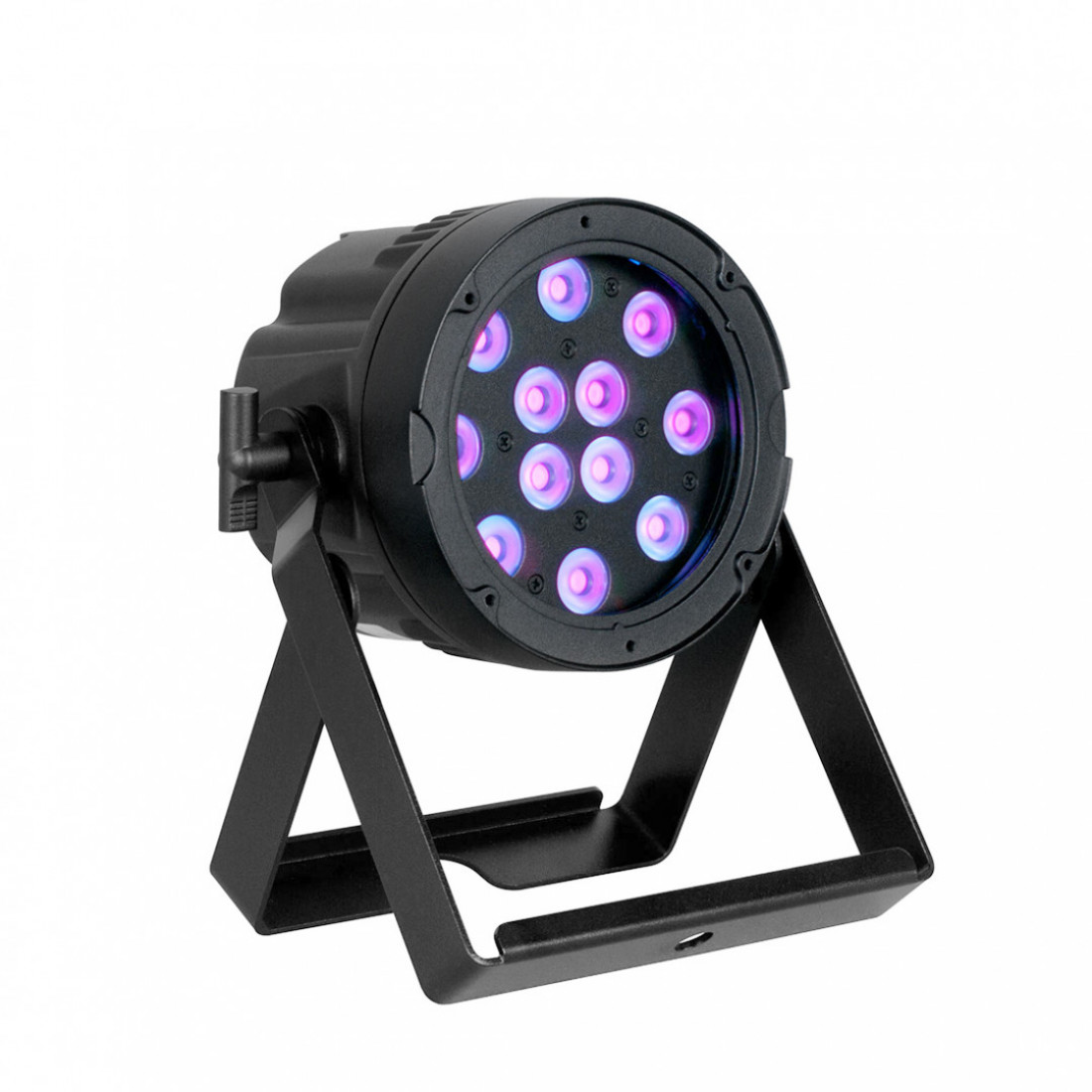

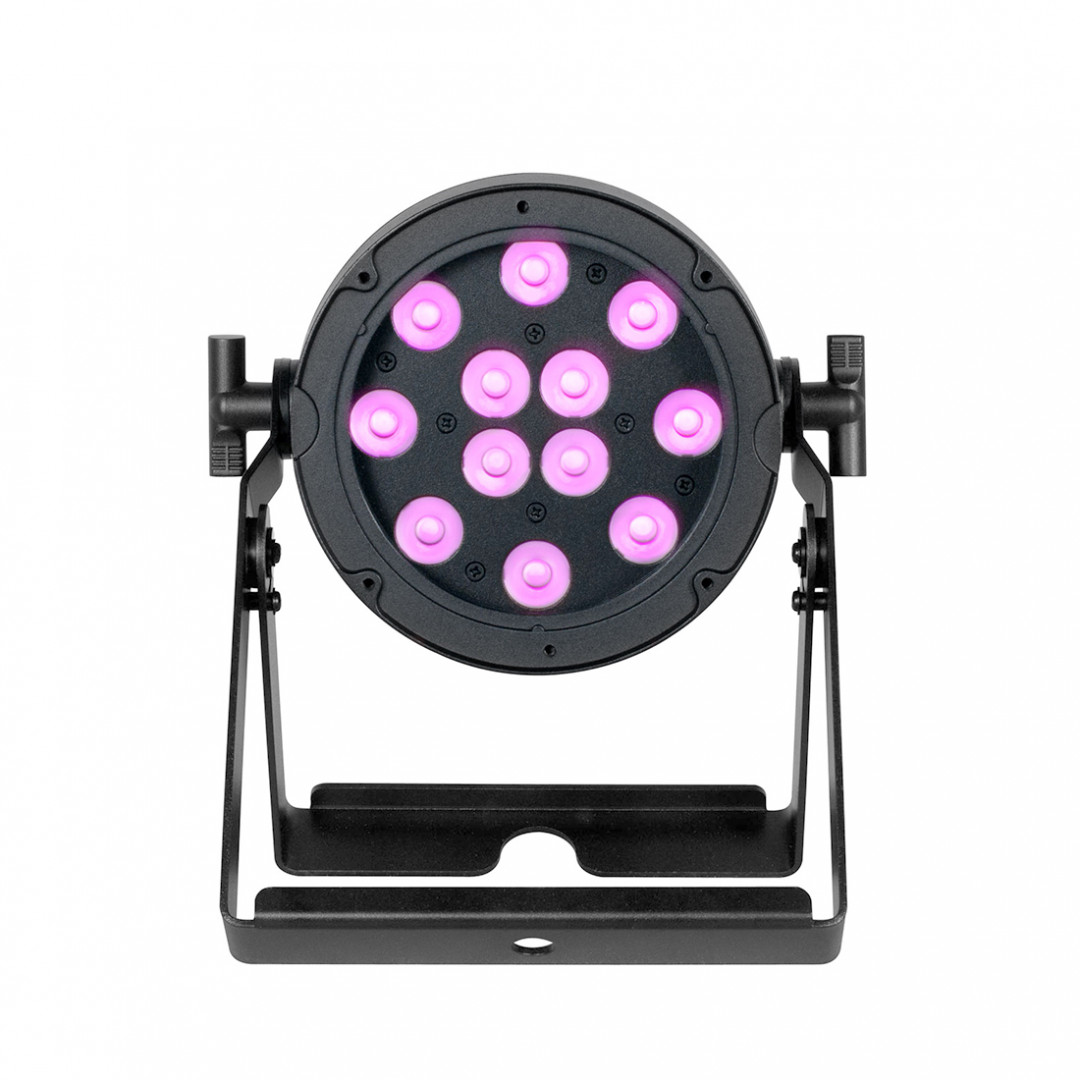

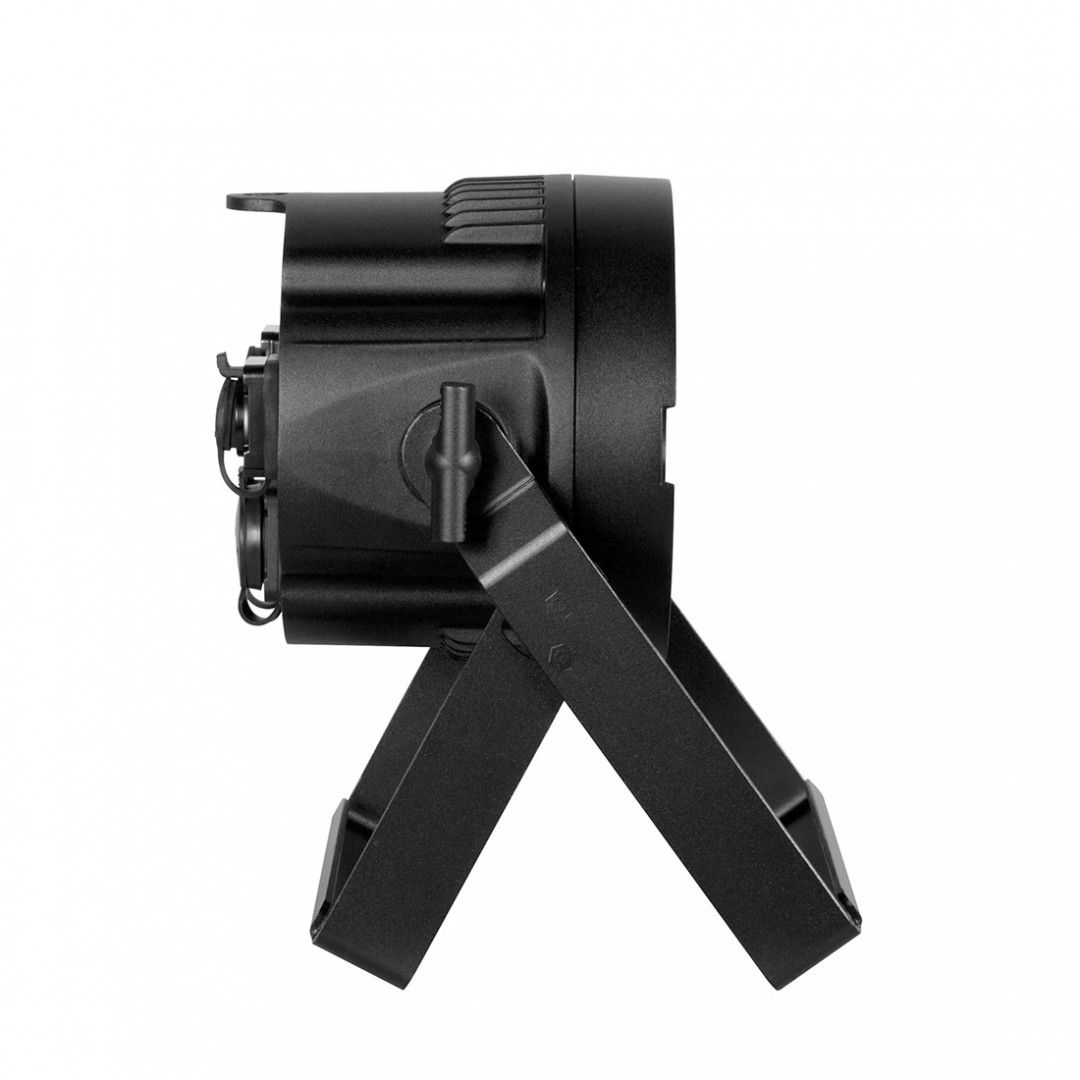

IP65 Rated Exterior High-Power UV Wash Par Luminaire
20 Degree Narrow Beam Angle
365nm Peak True UV Wavelength
Zero Visible Light Output

SPECIFICATIONS

SOURCE
(12) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Housing
Dual Adjustable Mounting Yokes

CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

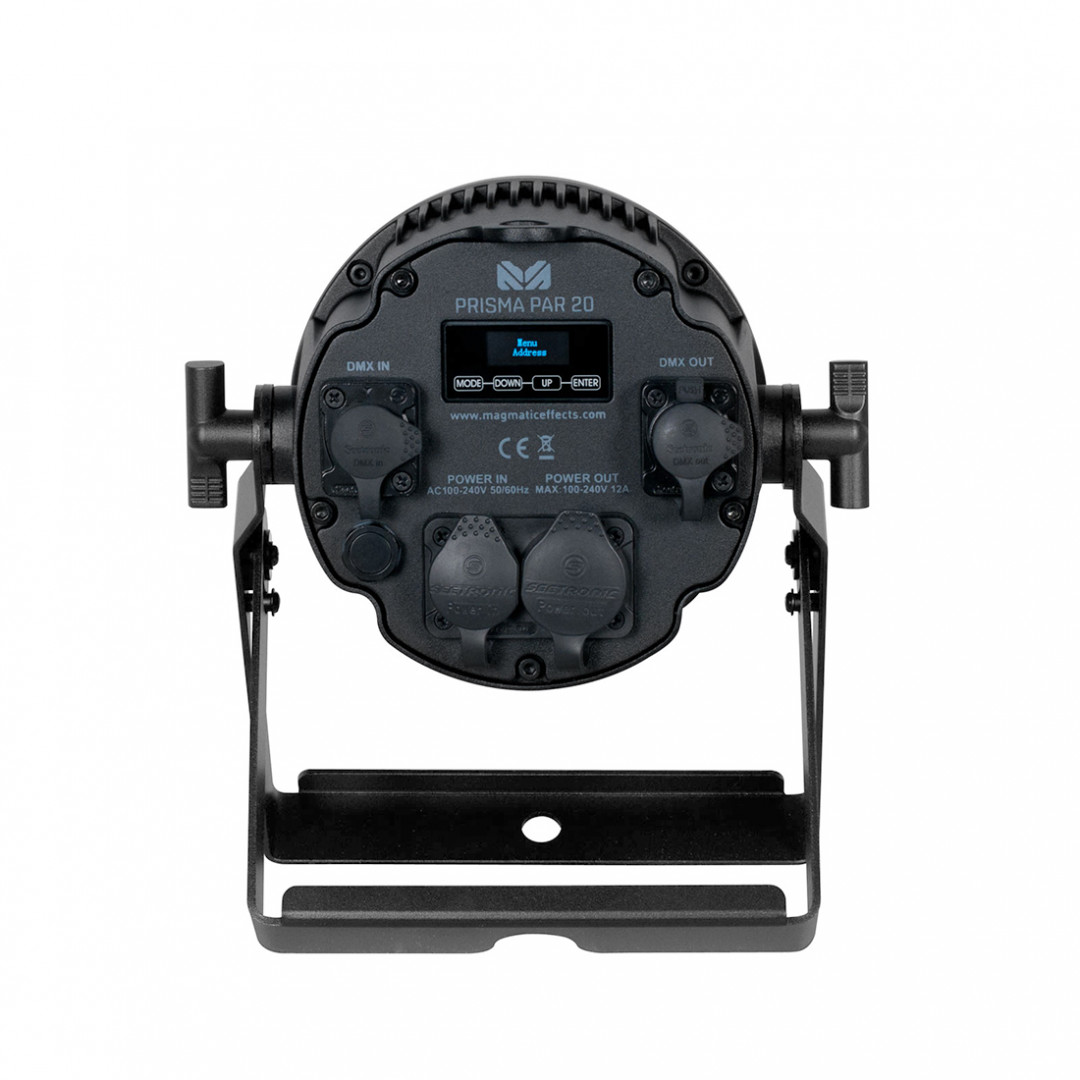

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector InWith
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 218mm (8.58 in.)
Width: 150.6mm (5.90 in.)
Vertical Height: 246.6mm (9.72 in.)
Weight: 2.40kg (5.29 lbs.)

ELECTRICAL
AC100-240V 50-60Hz
27W Max Power Consumption

THERMAL
-10°C to 45°C (14°F to 113°F)
Air Cooled

OPTIONAL ACCESSORIES

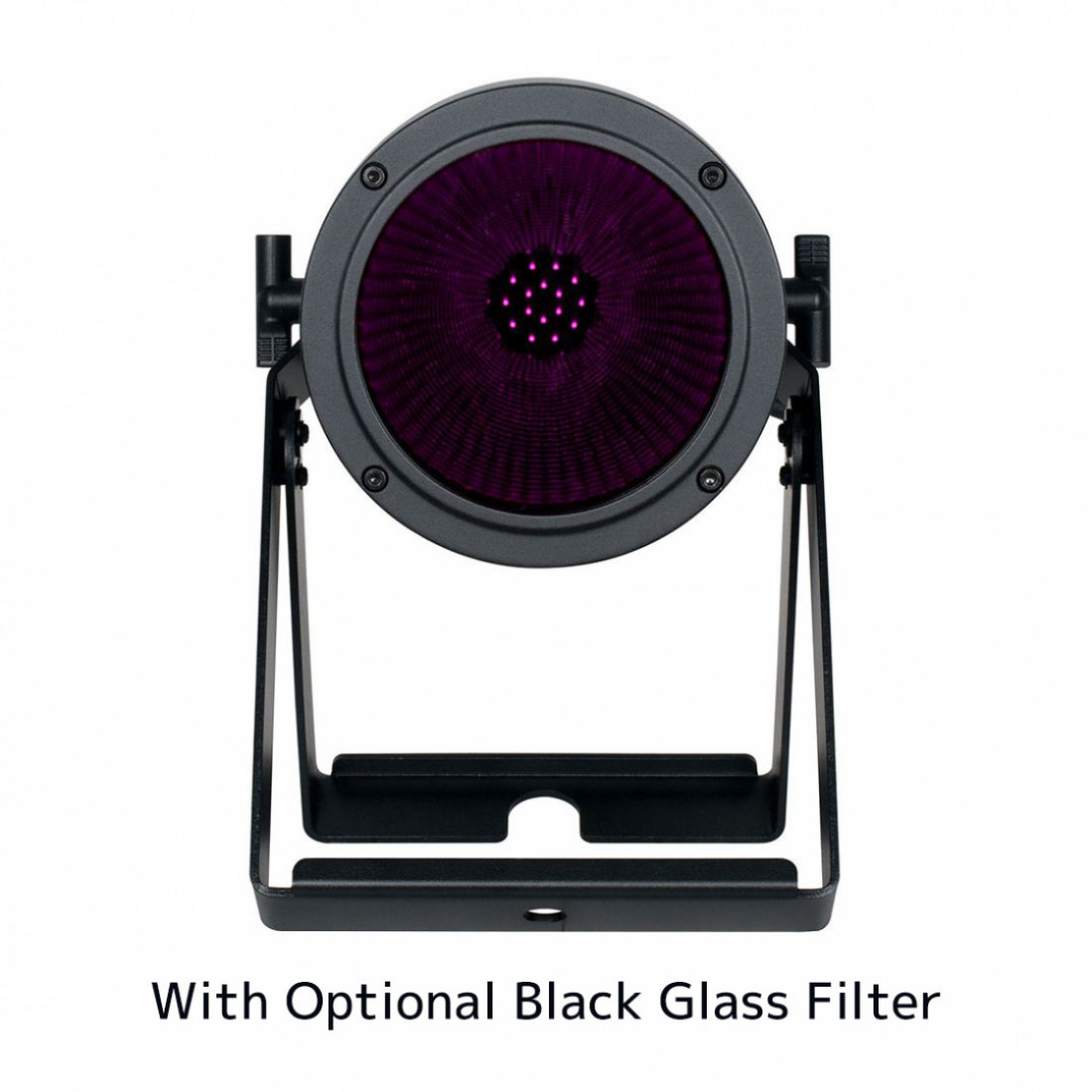

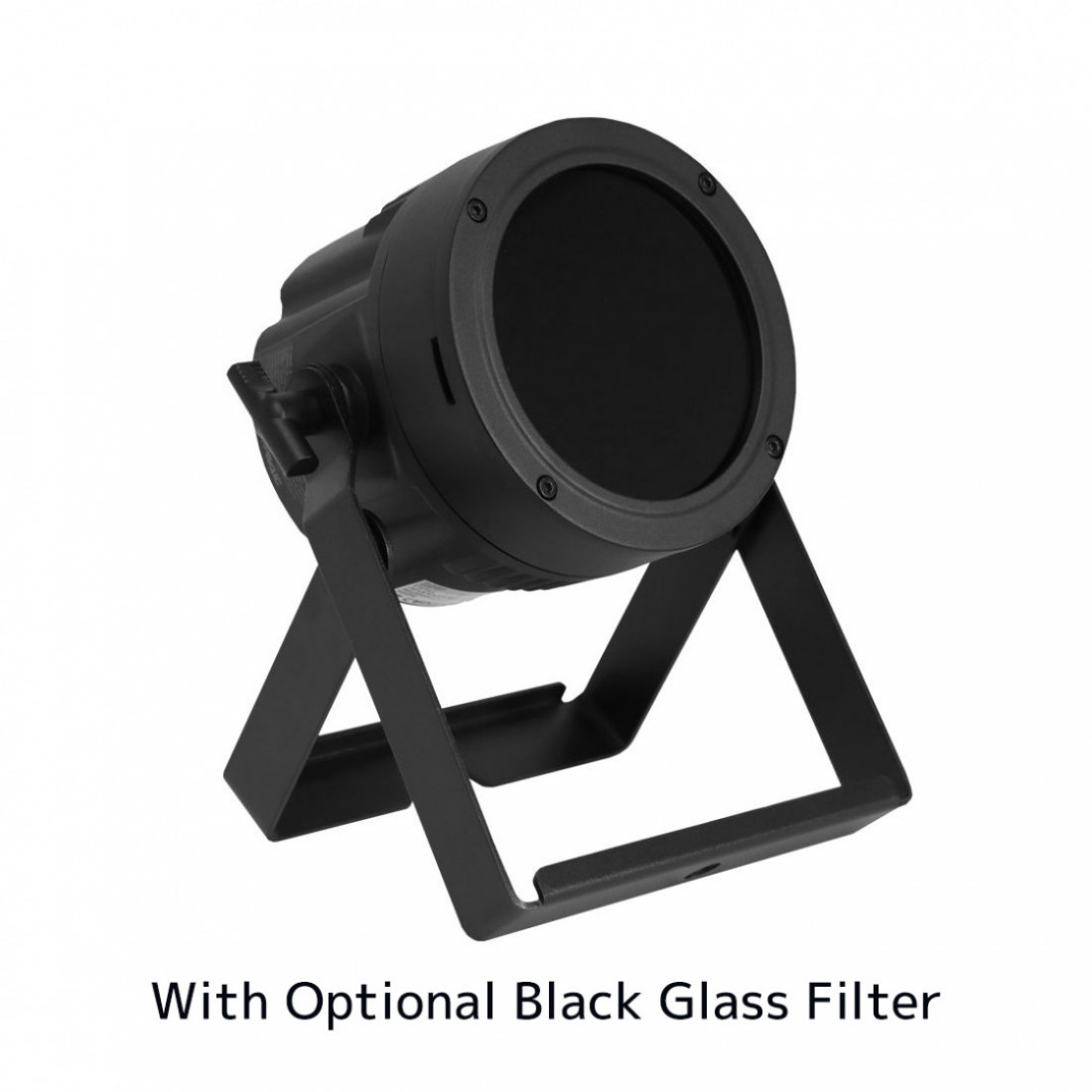

Black Glass Filter (see below in Related Products) - For the Prisma Par 20 and Prisma Par 50 fixtures. It will create a complete blackout effect, only allowing UV rays to penetrate, it is easy to install within seconds.

FIRMWARE UPDATES
Current firmware can be found here (login required)
