FEATURES

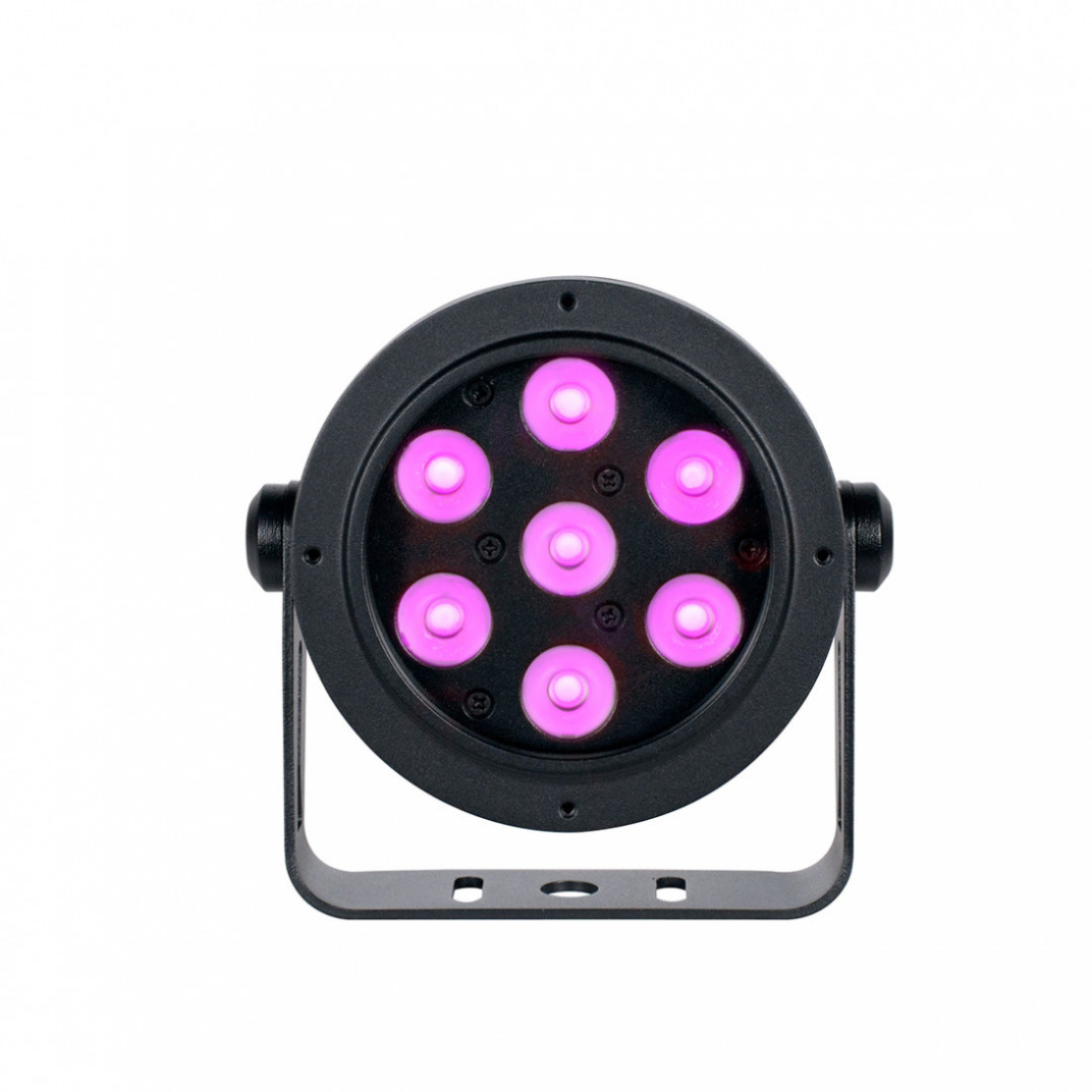

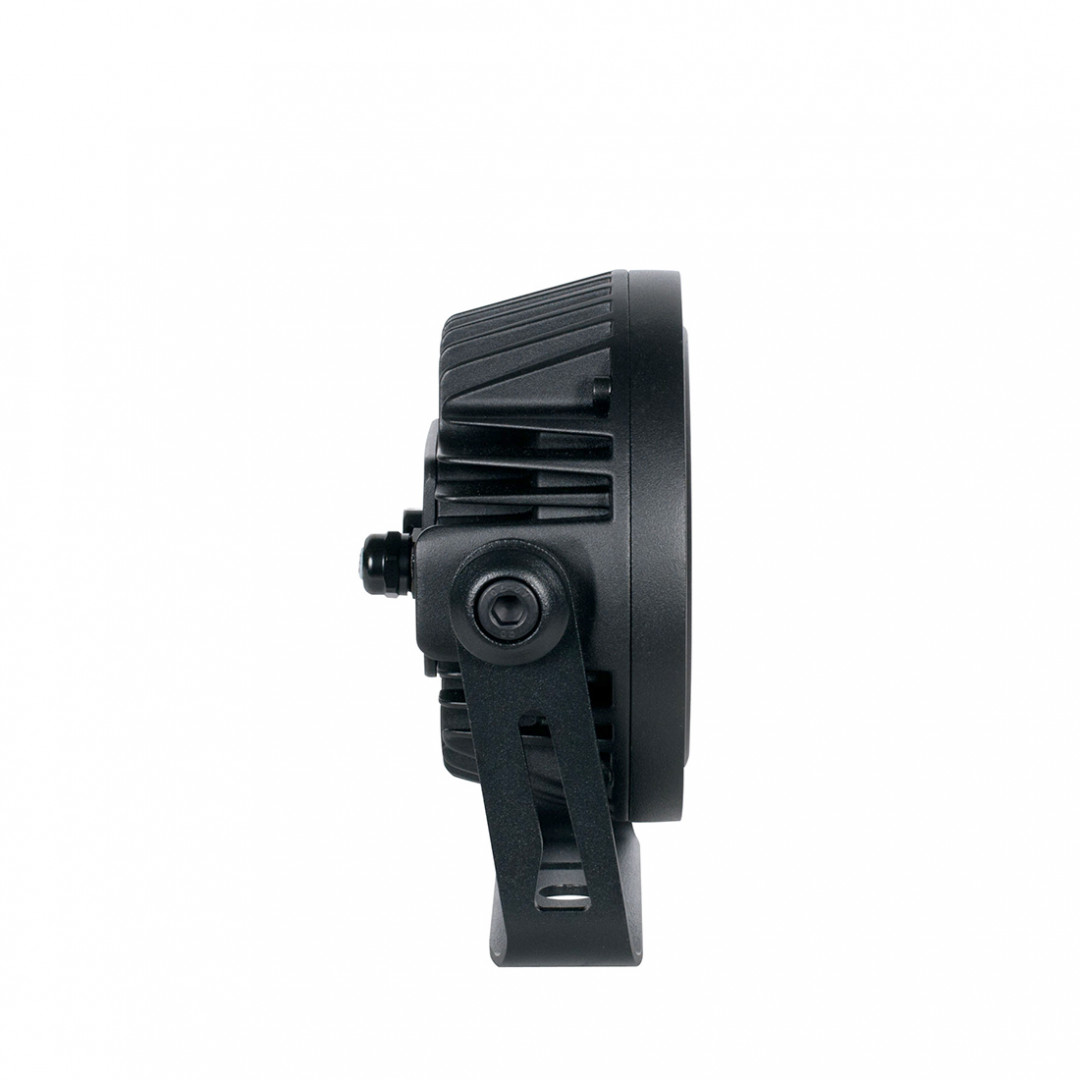

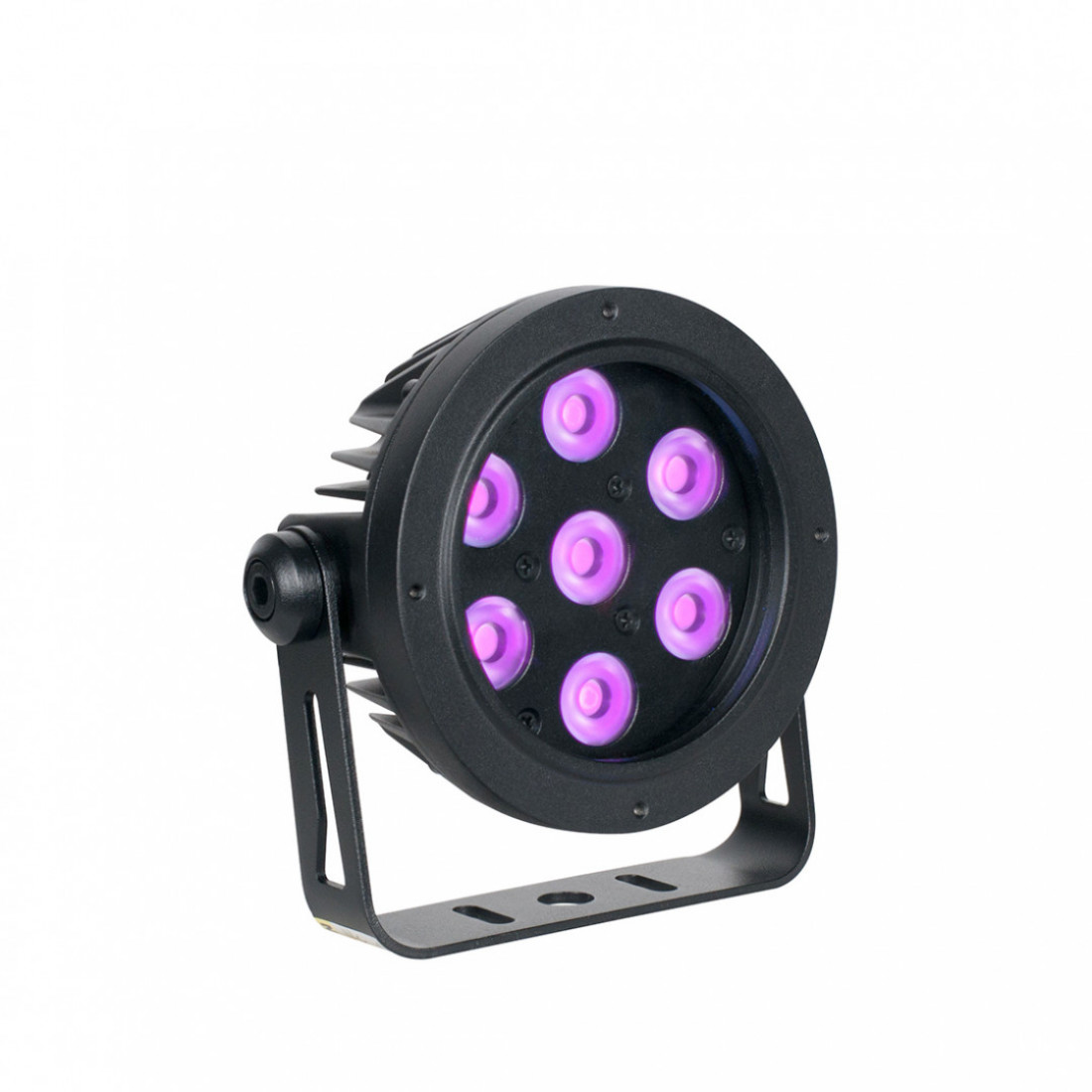

IP65 Rated Exterior High-Power UV Wash Par Luminaire
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength
Zero Visible Light Output
IP Rated Power/Data Pigtail Cable Attached

SPECIFICATIONS

SOURCE
(7) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
20 Degree Narrow Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Adjustable Mounting Yoke

CONTROL
Multiple DMX Channel Modes
DMX-512 and RDM Protocol Support

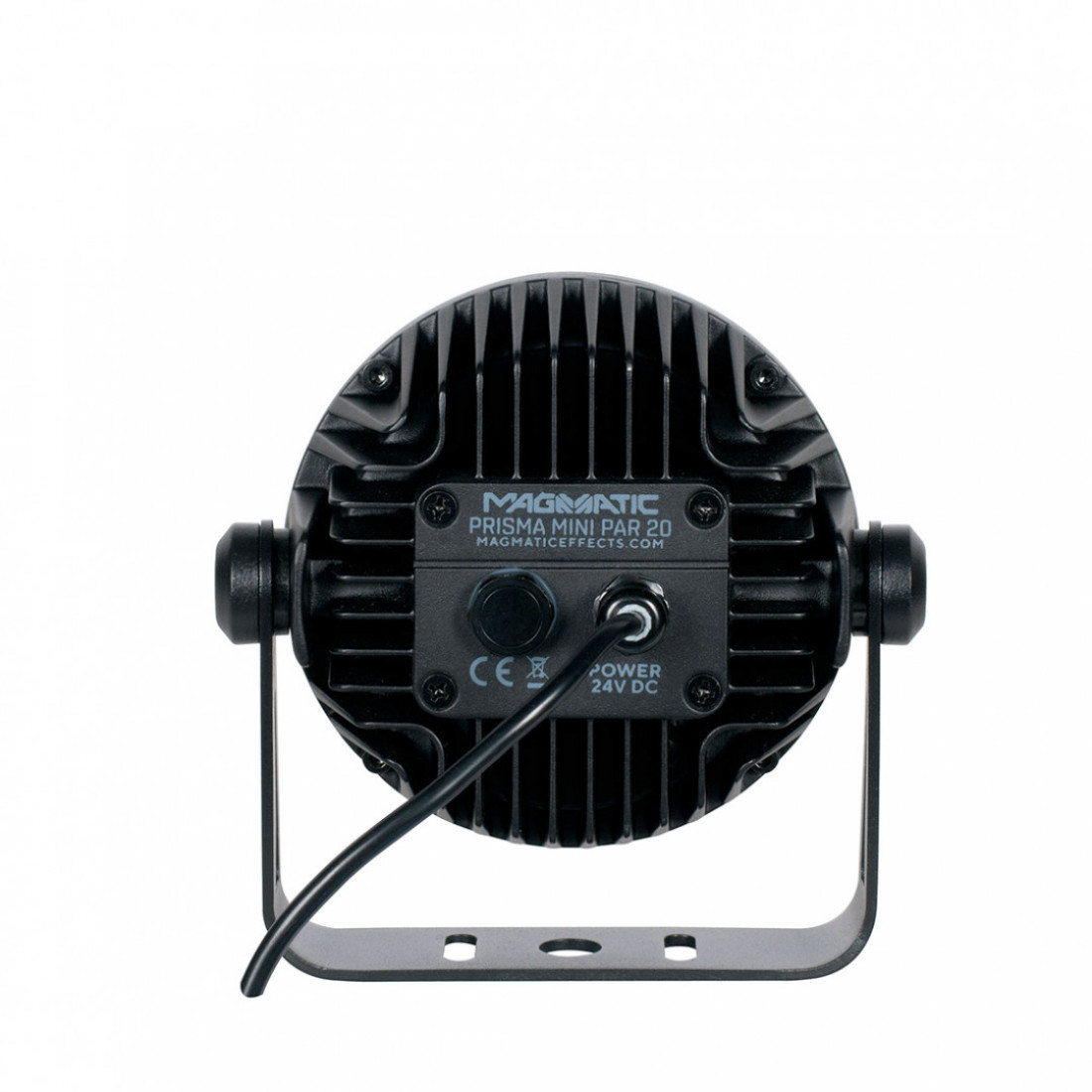

CONNECTIONS
2.7m (9 ft) 2-Conductor 14 Gauge IP Rated Power/Data Pigtail Cable Attached
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 144mm (5.66 in.)
Width: 72.8mm (2.86 in.)
Vertical Height: 143.3mm (5.64 in.)
Weight: 0.9kg (1.98 lbs.)

ELECTRICAL
AC100-240V 50-60Hz
19W Max Power Consumption

THERMAL
-10°C to 45°C (14°F to 113°F)
Air Cooled

OPTIONAL ACCESSORIES
Black Glass Filter (see below in Related Products) - For the Prisma Mini Par 20 and Prisma Mini Par 45 fixtures. It will create a complete blackout effect, only allowing UV rays to penetrate, it is easy to install within seconds.
