FEATURES

Two independent DMX Relay Circuits
RDM support
High Current Dual Pole Relays
Support for 208V and Delta Power Systems
Voltage and Power Status and Logging on display or via RDM
24h / 7 Day Event Scheduler
DMX Signal Sensing for automated relay control
Auto Power Sequencing with adjustable time delay
1.3” OLED Display with rotary encoder
Powder-coated compact metal housing
Surface, Truss, DIN-Rail and Standalone mounting
For all technical details and documentation for NETRON devices please visit
https://obsidiancontrol.com/netron


MOUNTING

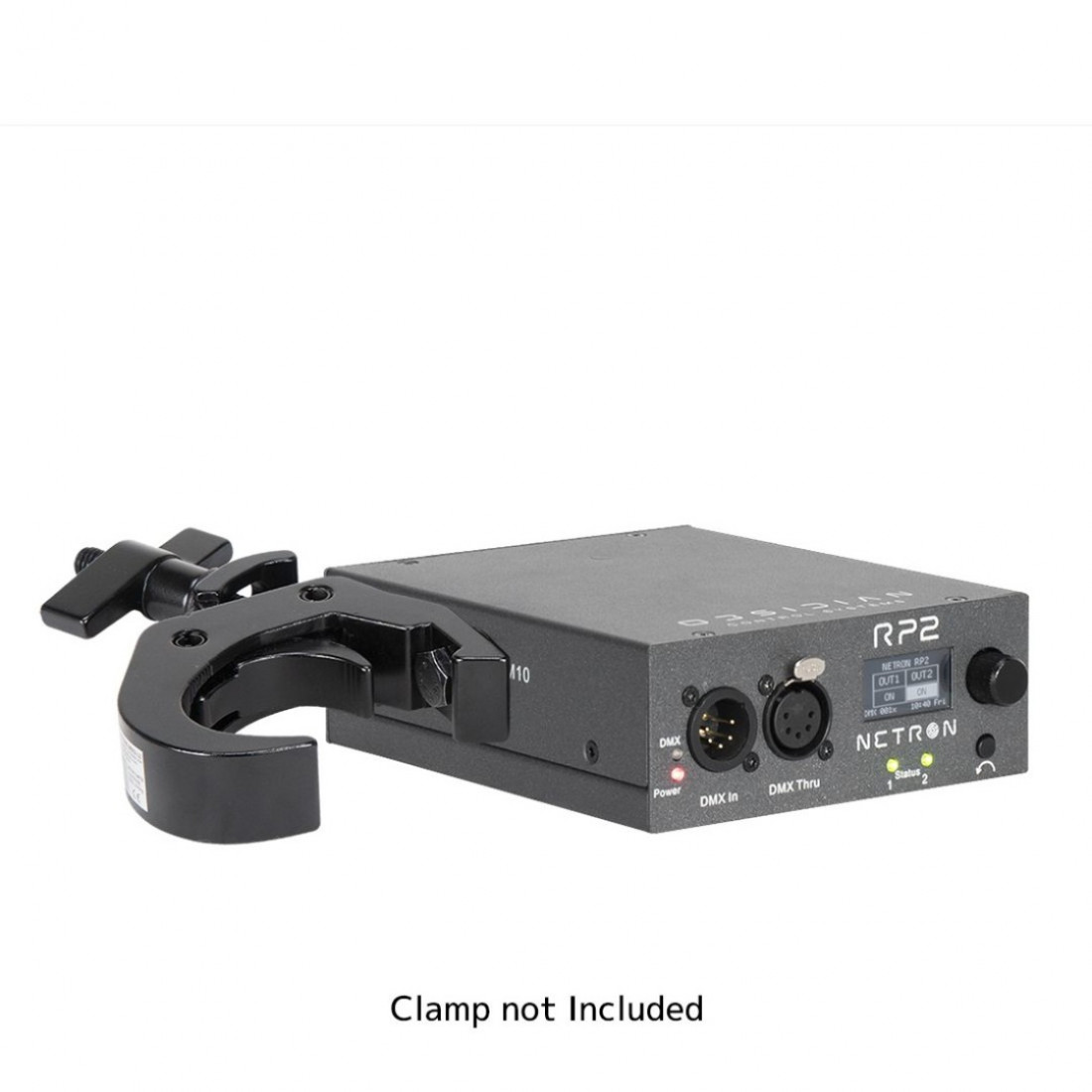

Standalone Truss-mount (M10 + M12 mounting hole)
Wall-mount horizontal or vertical (included)
Din Rail horizontal or vertical (included)


CONNECTIONS

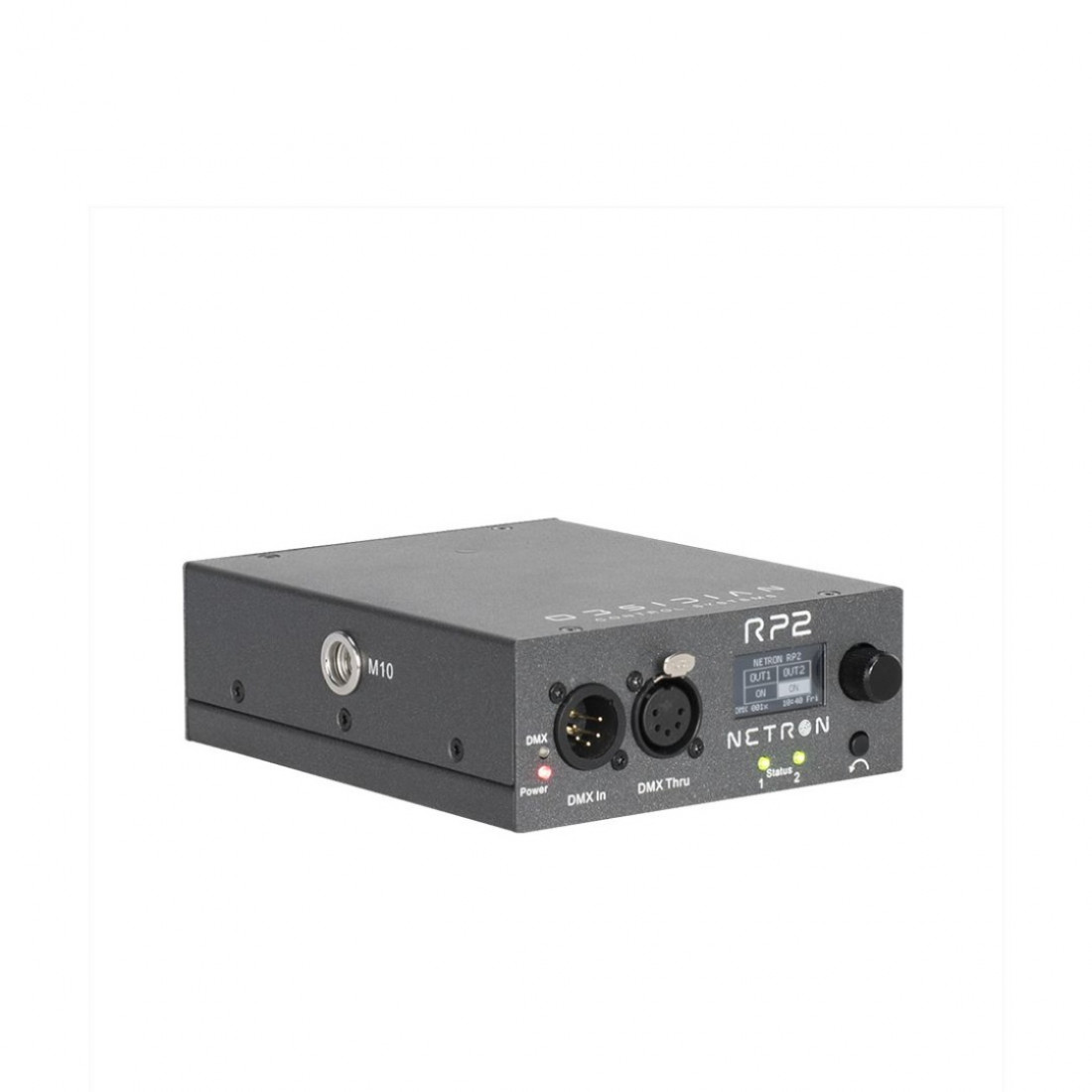

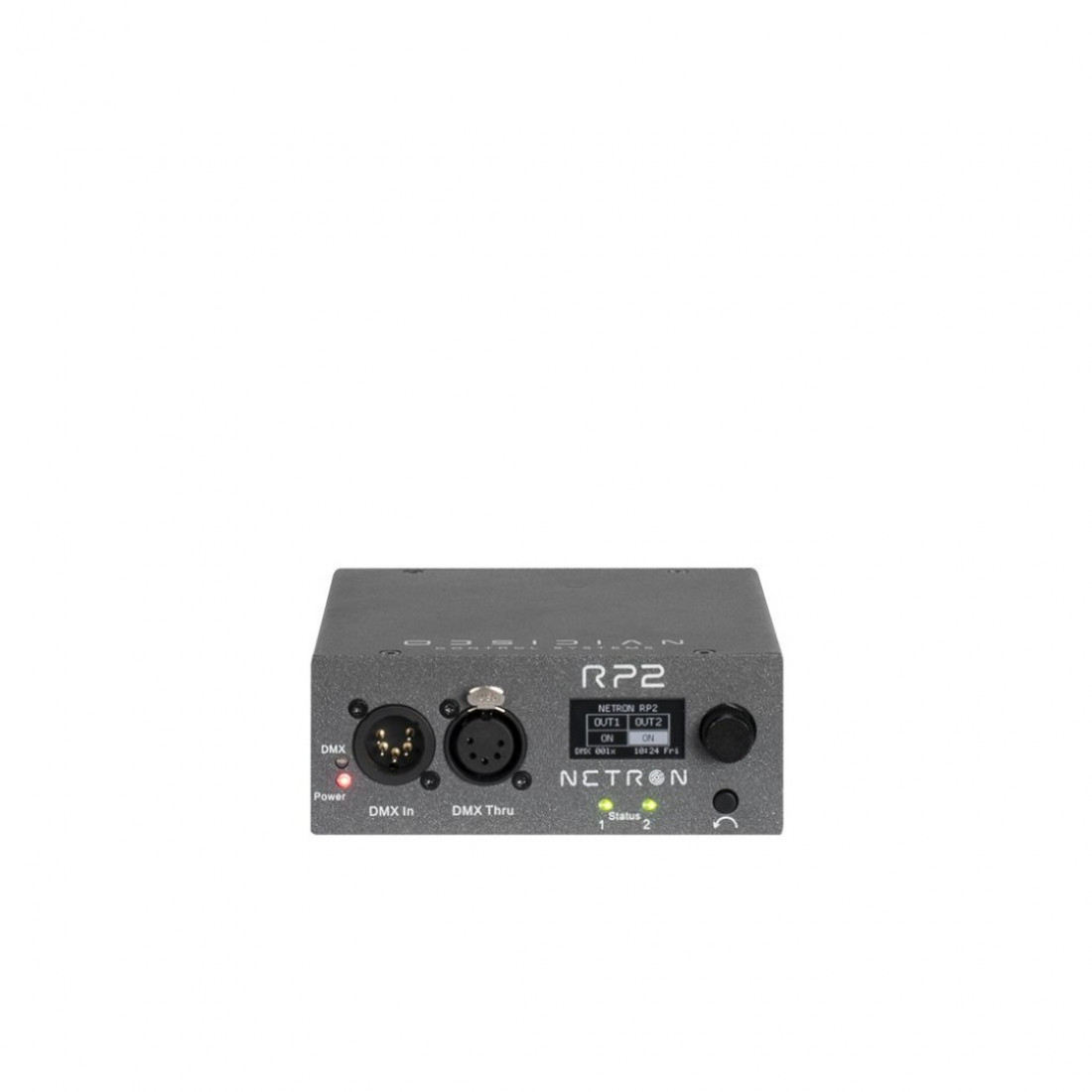

Front

5pin DMX/RDM In and Thru

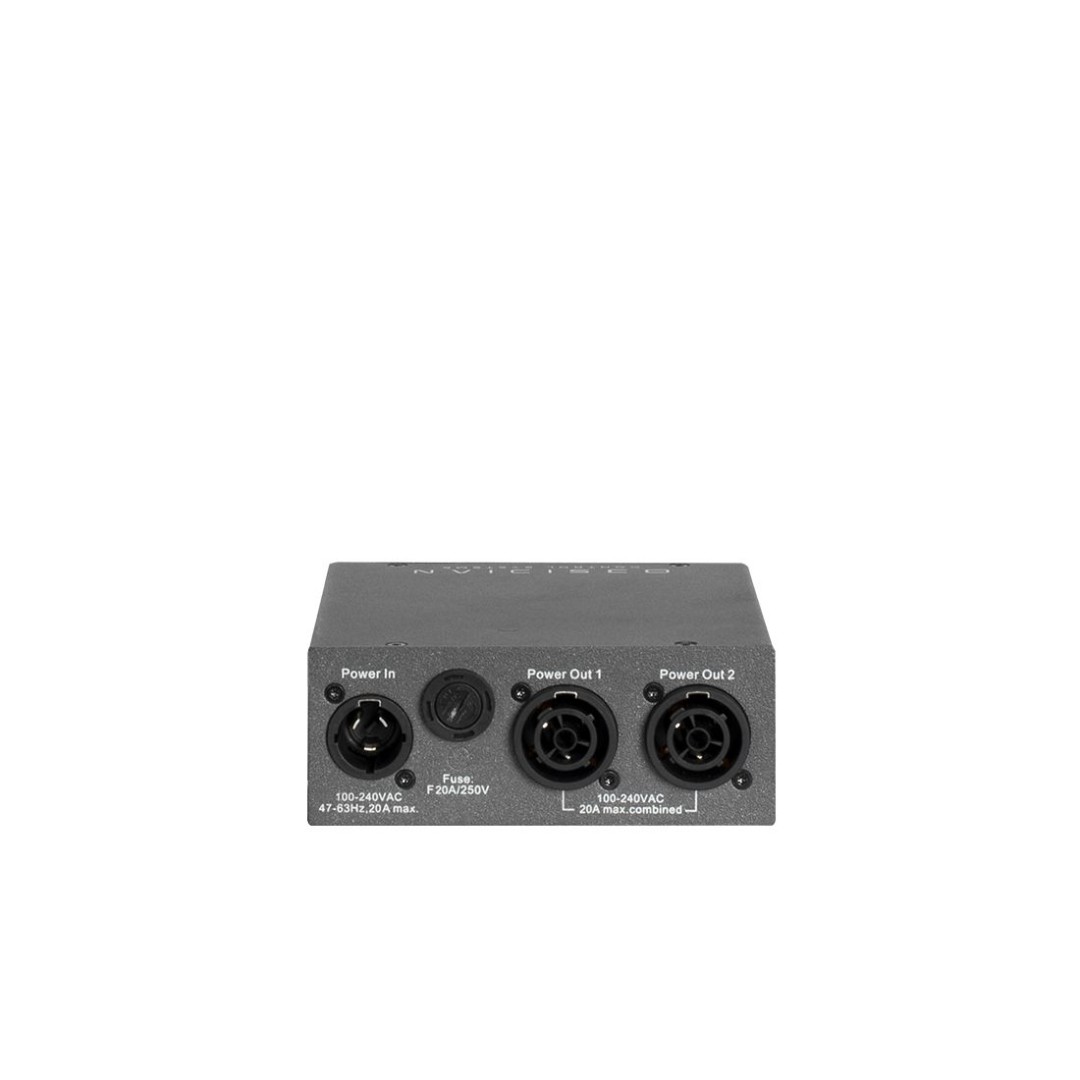

Back

1x IP65 Locking Power In
2x IP65 Switched Locking Power Out



PHYSICAL

Length: 152mm (6 in.)
Width: 165mm (6.5in.)
Height: 50mm (1.97 in.)
Weight: 0.8kg (1.77lbs.)


ELECTRICAL

100-240 V nominal, 50/60 Hz
15A (USA) 16A (EU)
