RDM10
Артикул: 1330000063
Цена: 0 KZT
The NETRON RDM 10 is a first of its kind hybrid splitter. A dual-DMX Input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.
ТЕХНИЧЕСКИЕ ДАННЫЕ
FEATURES
10 assignable DMX outputs
Integrated 2 Universe Artnet/sACN node
Configurable DMX refresh rate
Dual DMX Inputs for backup and signal loss options
Remote configuration via internal webpage
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Contact closures for cue or preset recall
Powder-coated aluminium rackmount housing
SPECIFICATIONS
MOUNTING
RackmountCONNECTIONS

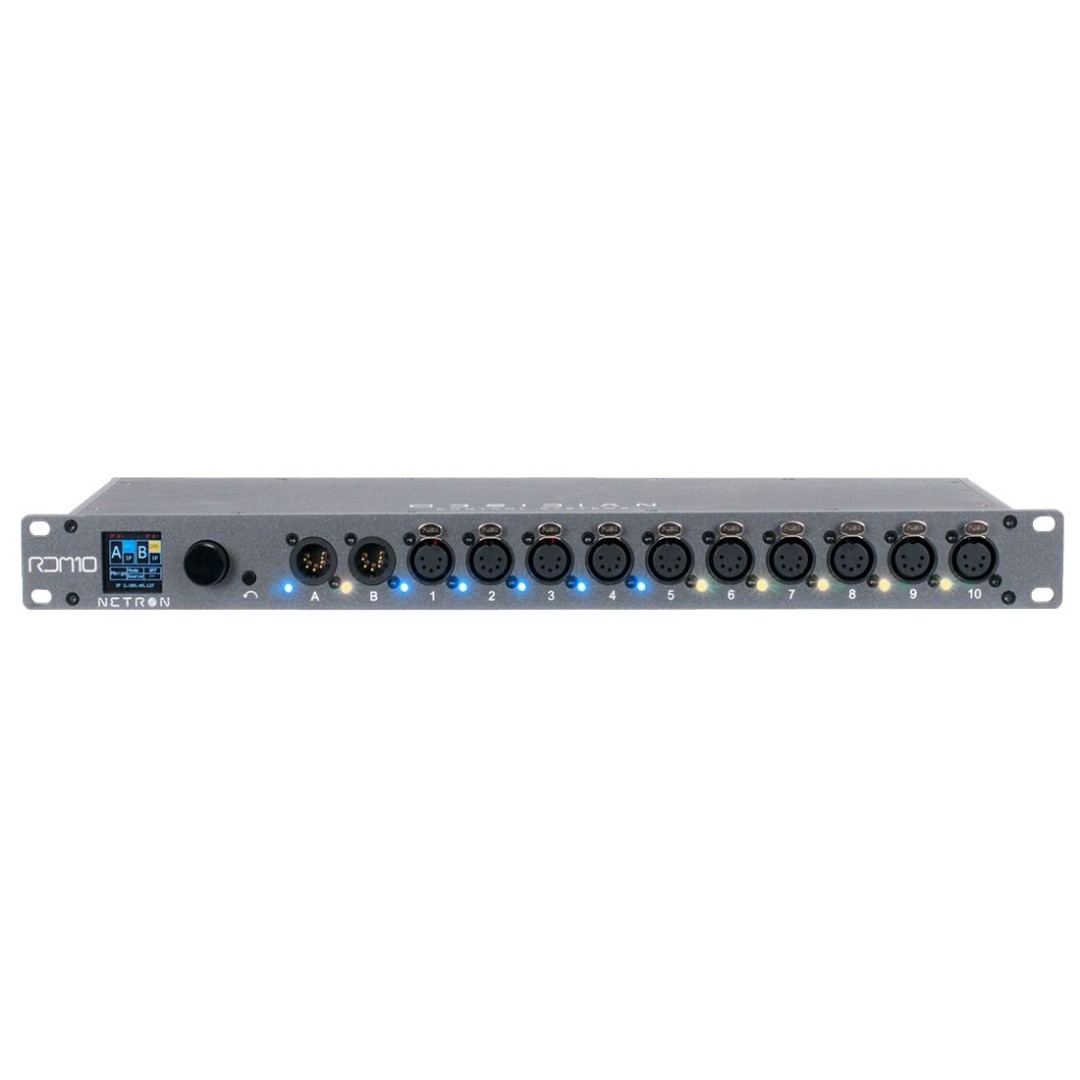

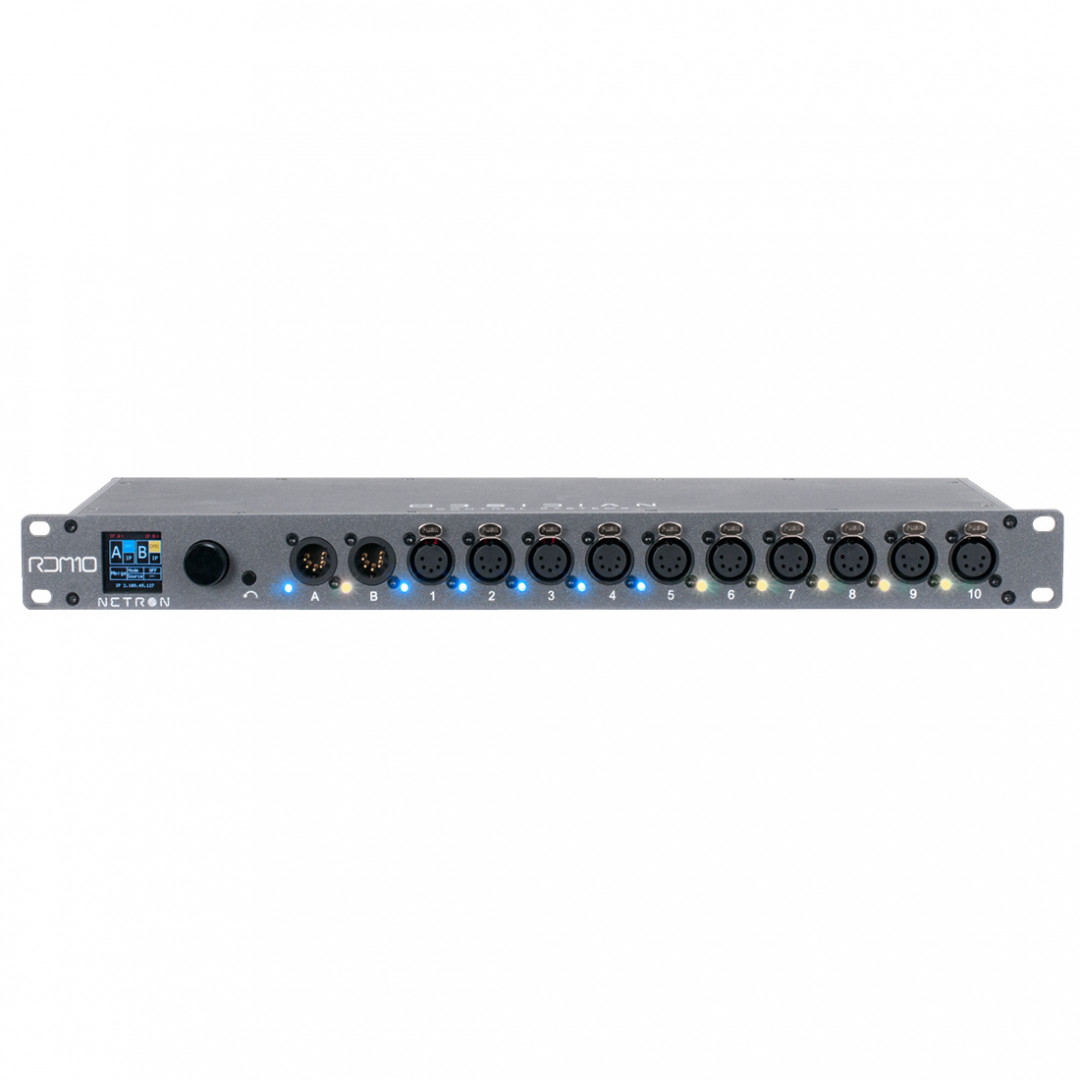

FRONT
(2) 5pin DMX Input(10) 5pin Opto-Isolated DMX Outputs
Full color OLED display
Encoder w. Push to Select / Exit Button

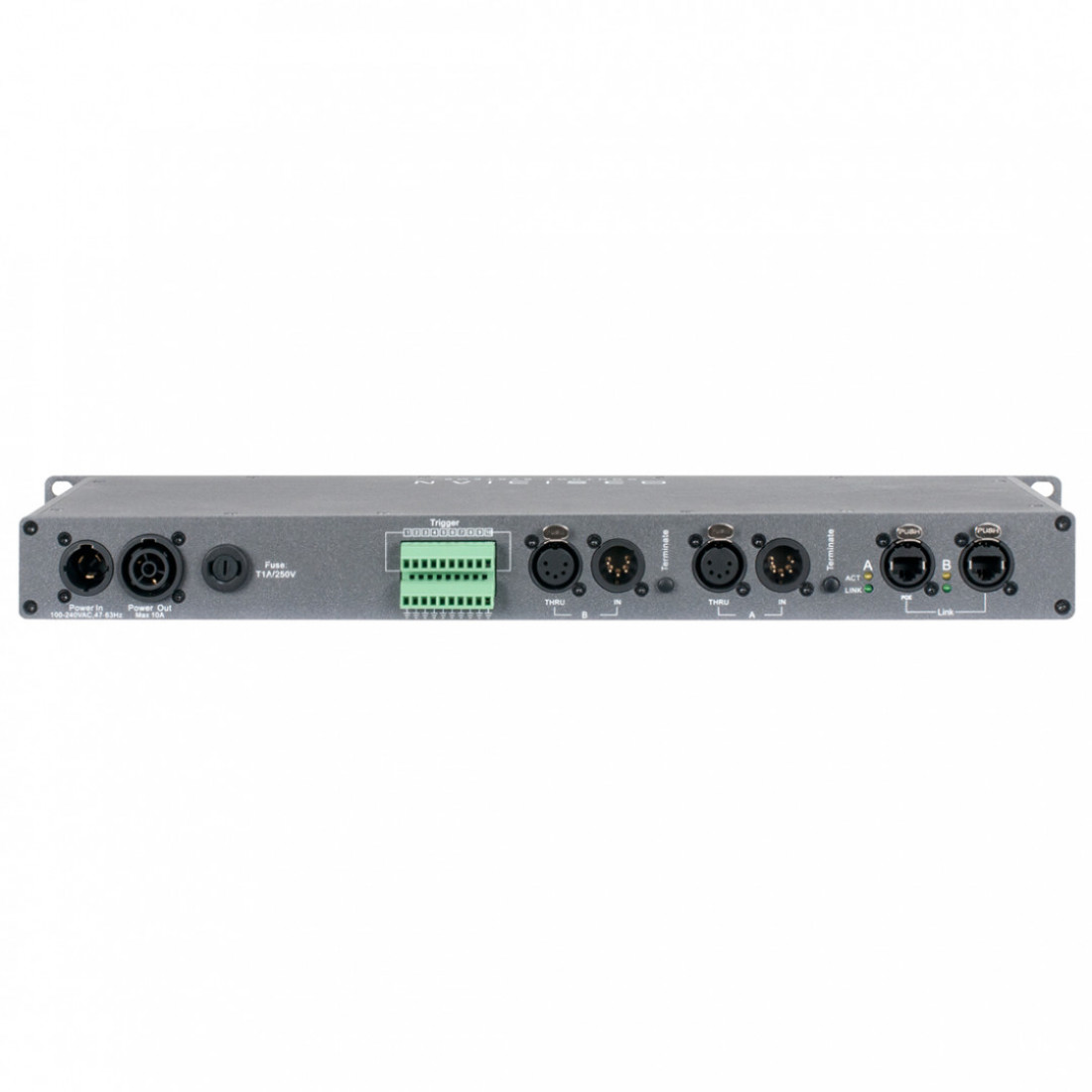

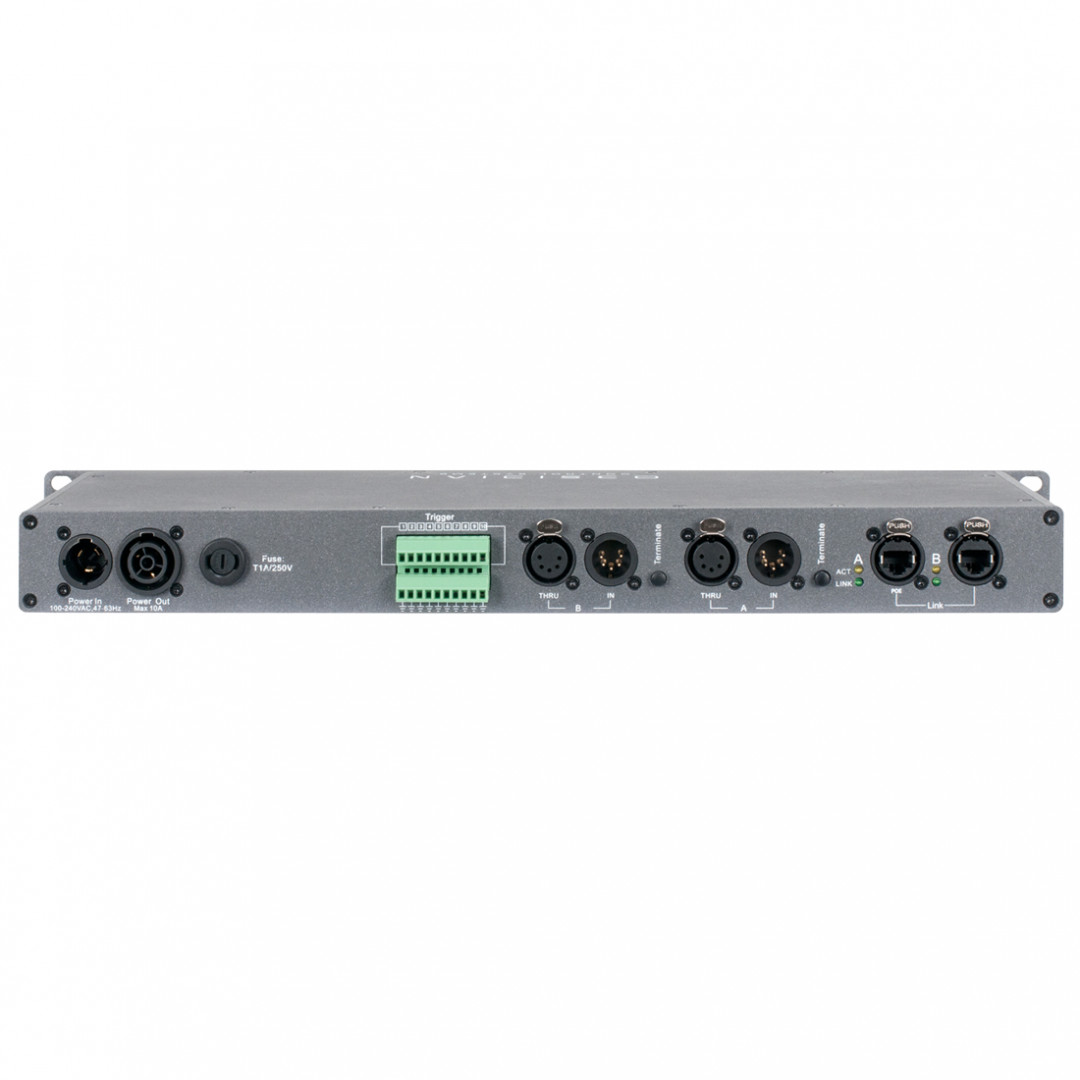

BACK
(2) 5pin DMX Input (parallel with front)
(2) 5pin DMX Through
(2) Locking RJ45 Ethernet Network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
PHYSICAL
Length: 482.5 mm (19 in.)Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs)
ELECTRICAL
100-240 V nominal, 50/60 Hz
POE 802.3af
