DMX10-5
Артикул: 330000071
Цена: 0 KZT
The DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
ТЕХНИЧЕСКИЕ ДАННЫЕ
FEATURES
Dual A/B 5pin XLR DMX Input10 isolated 5pin XLR DMX Outputs
A/B routing per output port
LED feedback for In/Out/A/B/Power
Industrial strength powder-coated finish
Lightweight and rugged rackmount housing
For all technical details and documentation for NETRON devices please visit https://obsidiancontrol.com/netron
SPECIFICATIONS

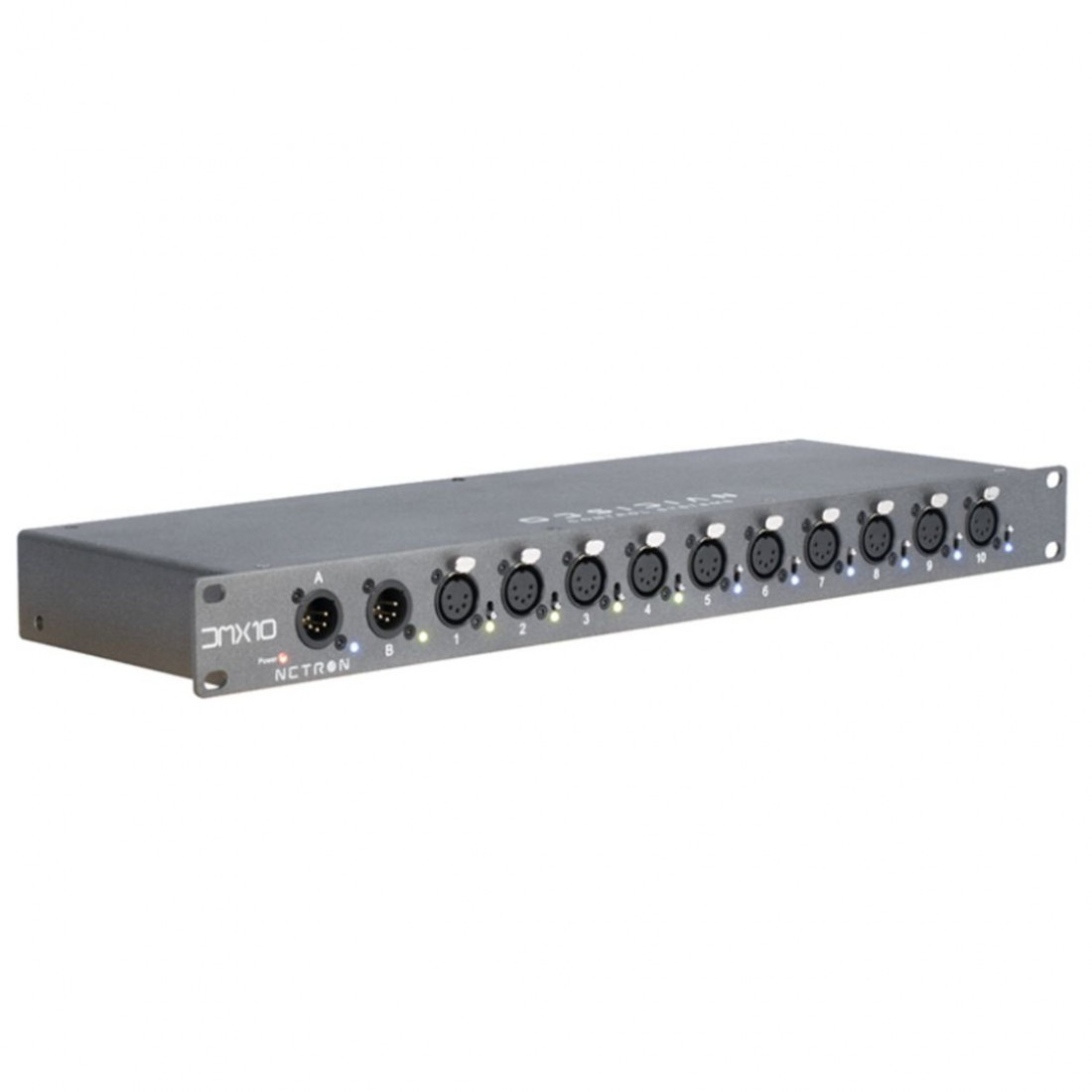

Front
(2) 5pin DMX Input
(10) 5pin Opto-Isolated DMX Outputs

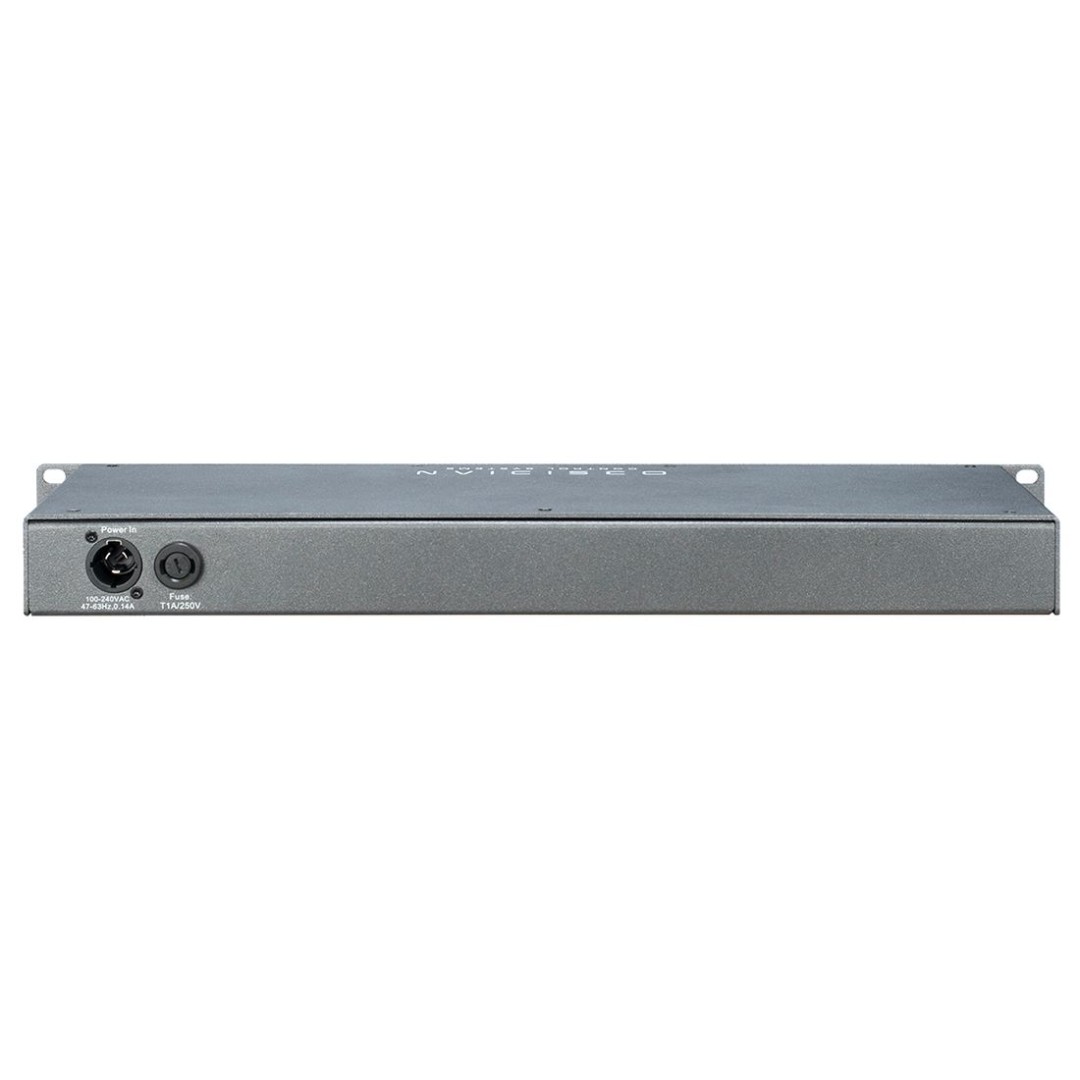

Back
Locking Power In
PHYSICAL
Length: 482.5 mm (19 in.)
Width: 146 mm (5.7 in.)
Height: 44 mm (1.7 in.)
Weight: 1.82kg ( 4.0 lbs)
ELECTRICAL
100-240 V nominal, 50/60 Hz
INCLUDED ITEMS
1.5m Locking power cable
