EP2
Артикул: 1330000072
Цена: 0 KZT

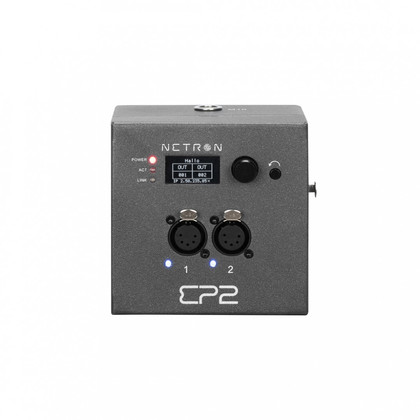

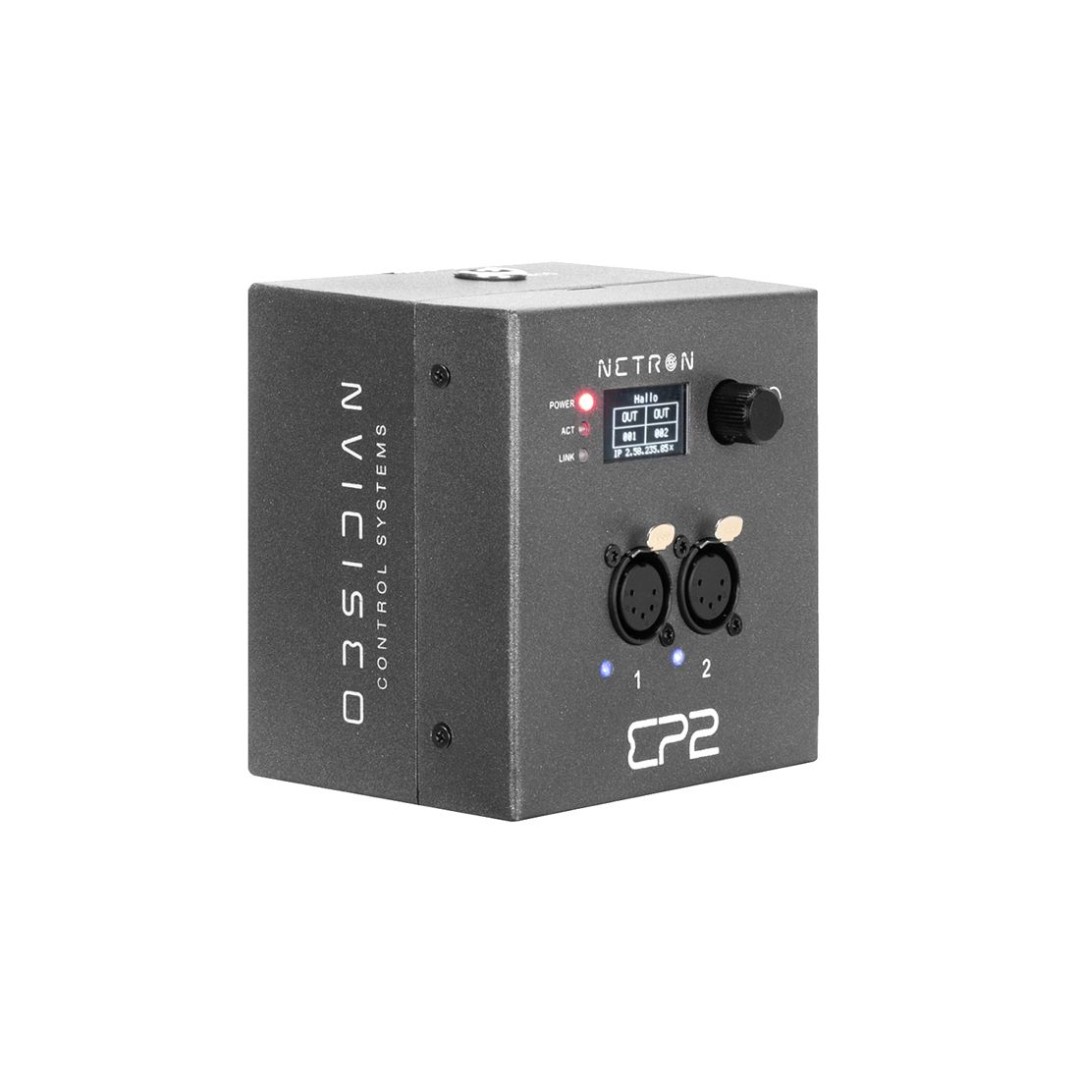

The Netron EP2 is a compact Ethernet to DMX gateway with two RDM compatible ports designed for wall mount, truss mount and standalone installations. It is configurable via the integrated OLED display and encoder, or the internal web remote. EP2 is powered over Ethernet or via the convenient USB-C connection.
ТЕХНИЧЕСКИЕ ДАННЫЕ
FEATURES
RDM, ArtNet and sACN supportFactory and user presets for plug and play setups
POE or USB-C powered
1.3” OLED Display with rotary knob
Remote configuration via internal webpage
Powder-coated compact metal housing
Connect to ONYX PC for a full four Universe Solution
In-wall, On-Wall, Truss and Standalone mounting
Unlocks ONYX NOVA 4-Universe License

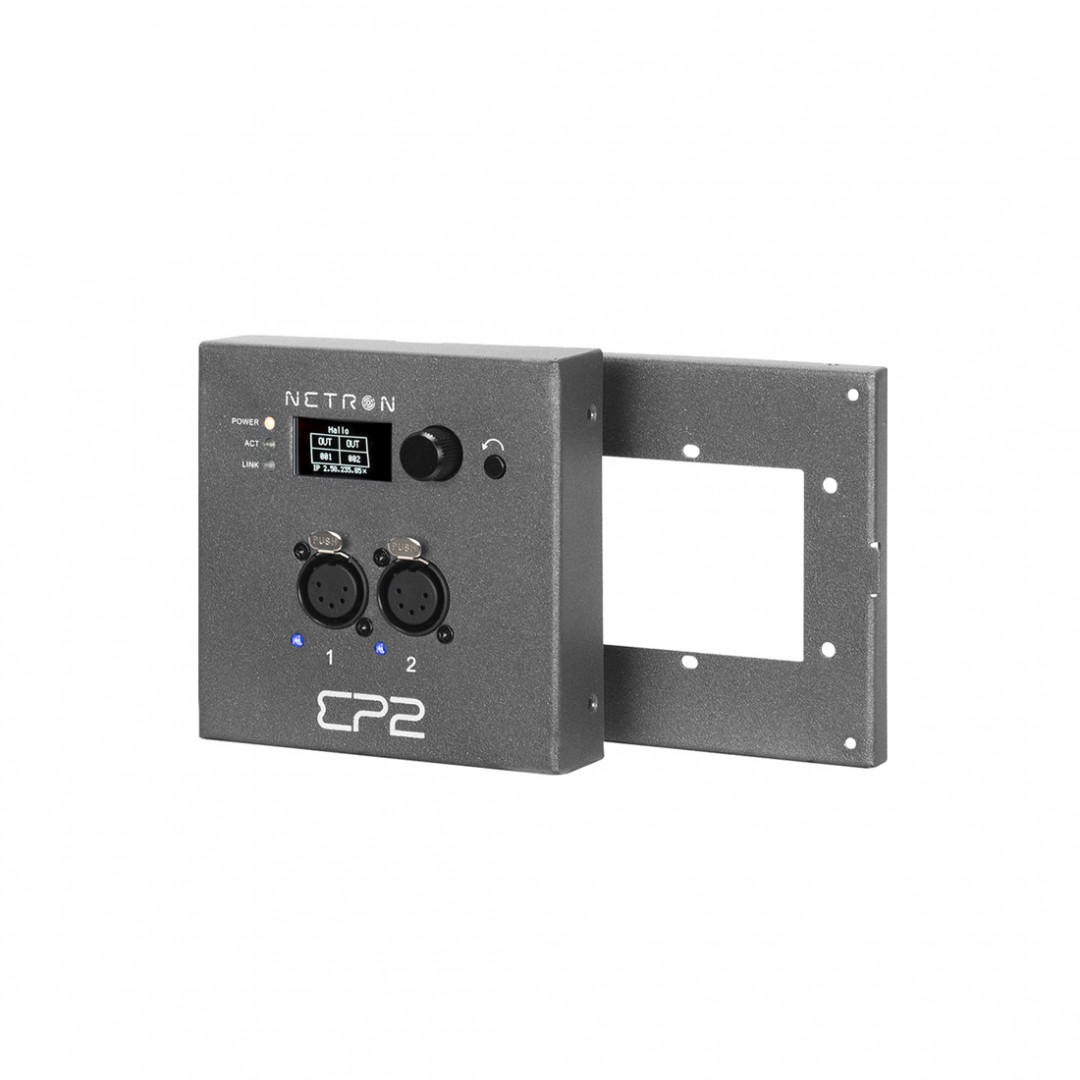

MOUNTING
Standalone (Backbox included)Truss-mount (M10 + M12 mounting hole)
In or On-wall 2-Gang (US) or 50mm round (EU)
CONNECTIONS
Front
(2) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Side
(1) Locking RJ45 Ethernet network connections (POE)
USB-C power option (5V, 2A)
PHYSICAL
Length: 4.6 in. (117.6mm)Width: 4.5 in. (114.0mm)
Height: 3.5 in. (89.1mm)
Weight: 1.76lbs. (0.8kg)
ELECTRICAL
USB-C 5V
POE 802.3af
