EN4
Артикул: 1330000065
Цена: 0 KZT
The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation. As a four Universe Node the EN4 is ideally suited for the powerful ONYX Free Edition. Click here to learn more about the EN4 & for all technical details & documentation
ТЕХНИЧЕСКИЕ ДАННЫЕ
FEATURES
RDM, Artnet and sACN supportFactory and user presets for plug and play setups
Line Voltage or POE powered
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated aluminum ½ rack housing
Connect to ONYX PC for a full four Universe Solution
SPECIFICATIONS
MOUNTING
StandaloneTruss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)
CONNECTIONS
FRONT
(4) 5pin DMX/RDM optically isolated portsPorts are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button
BACK

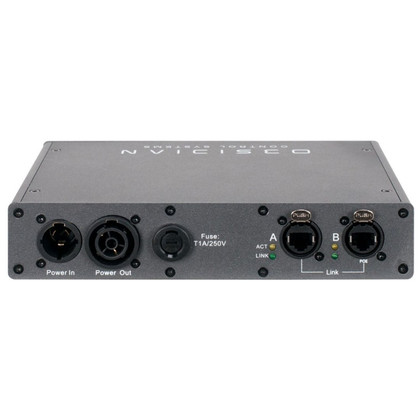

Locking Power In/Thru(2) Locking RJ45 Ethernet network connections (1x POE)
PHYSICAL
Length: 215 mm (8.5 in.)Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs)
ELECTRICAL
100-240 V nominal, 50/60 Hz,10W
POE 802.3af
