FEATURES

RDM, Artnet and sACN support
Factory and user presets for plug and play setups
Line Voltage or POE powered
1.8” OLED Display with rotary knob
99 Internal cues with fade and delay time
Customizable routing and merging options
Remote configuration via internal webpage
Contact closures for cue or preset recall
Powder-coated aluminum rackmount housing


MOUNTING

Rackmount





CONNECTIONS

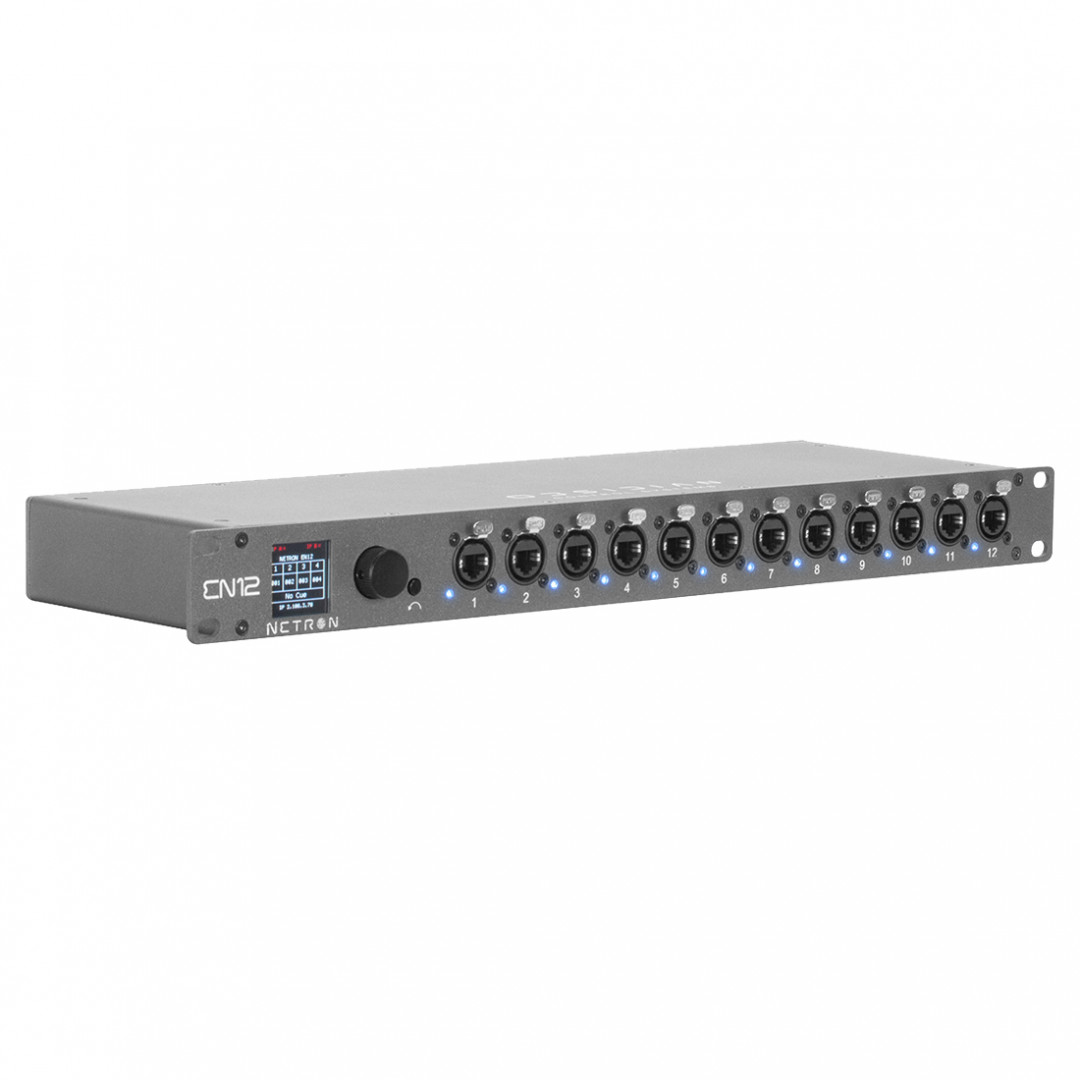

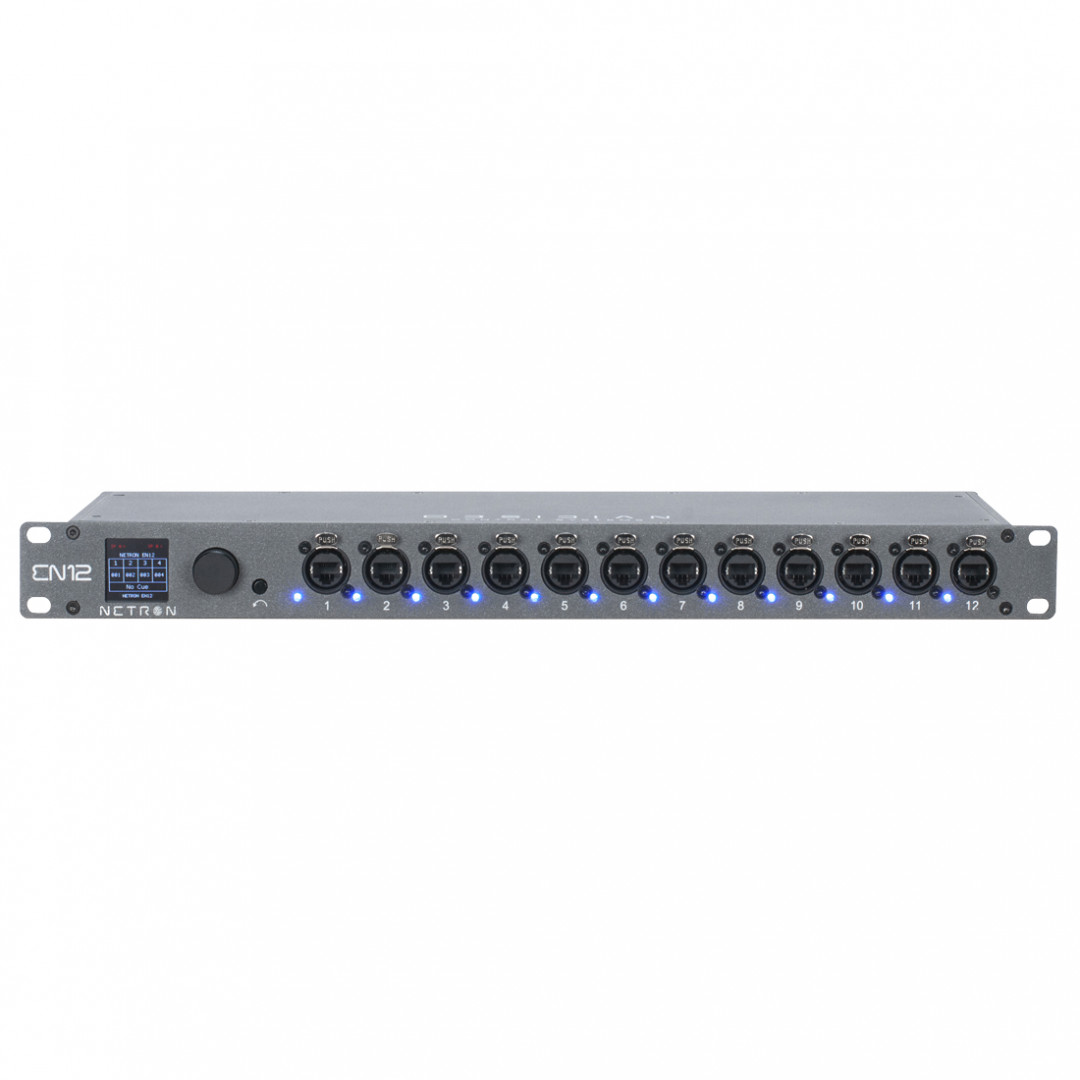

FRONT

(12) RJ45 DMX/RDM optically isolated ports (ESTA Compliant)
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

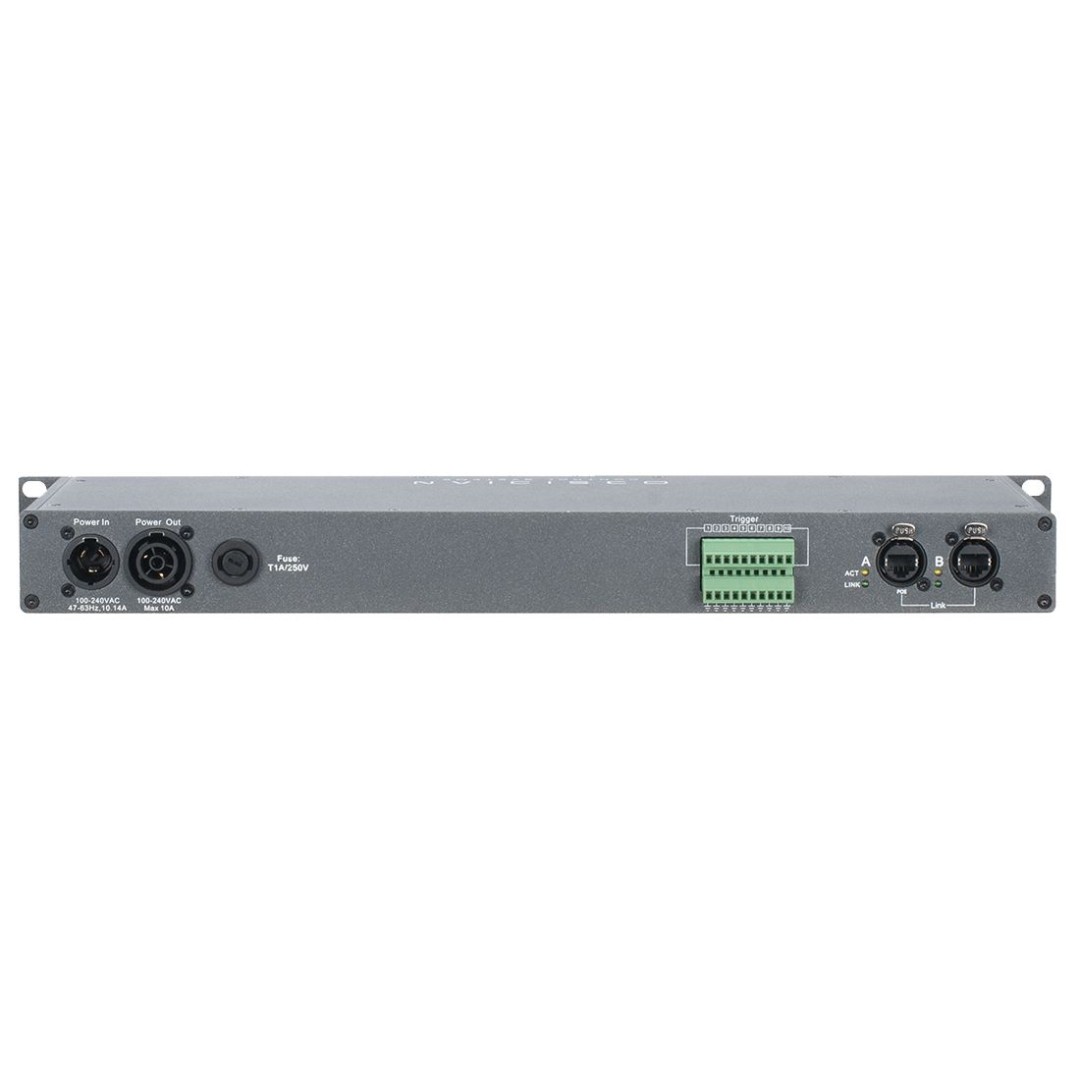

BACK

(2) Locking RJ45 Ethernet network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru


PHYSICAL

Length: 160.8mm (6.3in.)
Width: 482.5mm (19in.)
Height: 44mm (1.7in.)
Weight: 1.82 kg (4 lbs.)


ELECTRICAL

100-240V nominal, 50/60 Hz
POE 802.3af
