5pin (A) and 3pin (B) XLR DMX Input
10 isolated 5 and 3pin XLR DMX Outputs
A/B routing per output port
LED feedback for In/Out/A/B/Power
Industrial strength powder-coated finish
Lightweight and rugged rackmount housing

For all technical details and documentation for NETRON devices please visit https://obsidiancontrol.com/netron


SPECIFICATIONS

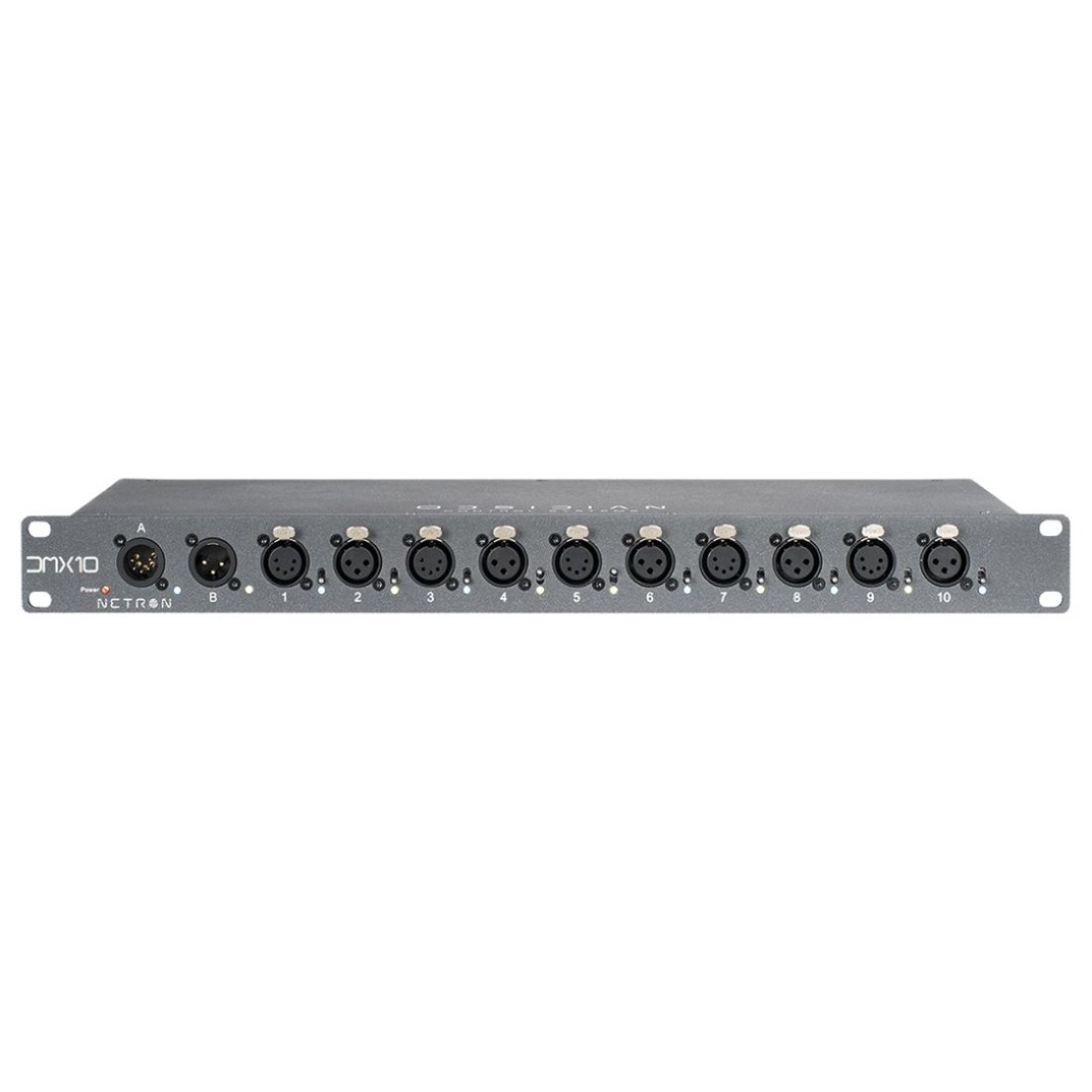

Front

5pin DMX Input (A)
3pin DMX Input (B)
(5) 5pin Opto-Isolated DMX Outputs
(5) 3pin Opto-Isolated DMX Outputs

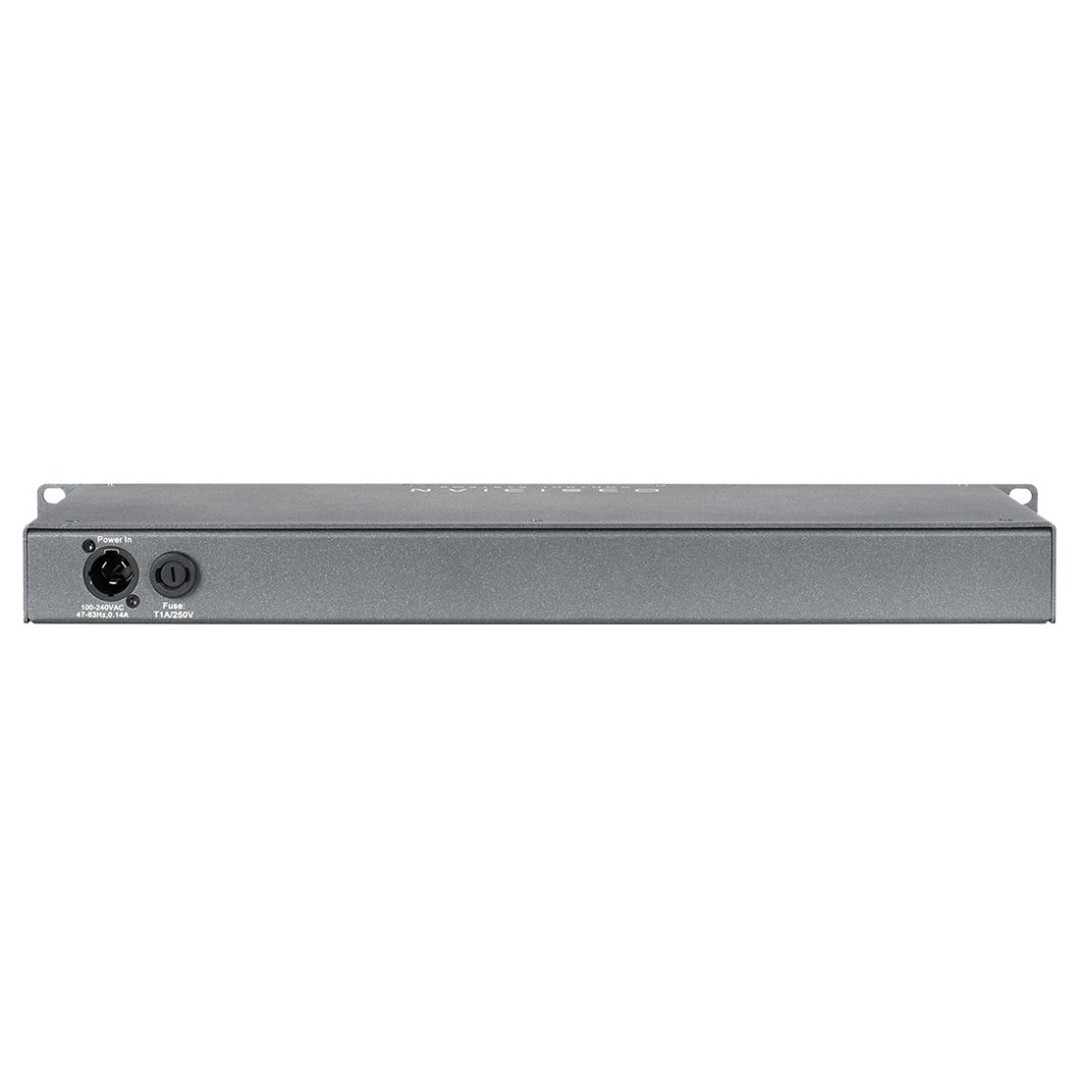

Back

Locking Power In


PHYSICAL

Length: 482.5 mm (19 in.)
Width: 155.9 mm (6.1 in.)
Height: 44 mm (1.7 in.)
Weight: 1.50kg ( 3.31 lbs)

ELECTRICAL

100-240 V nominal, 50/60 Hz

INCLUDED ITEMS

1.5m Locking power cable

Specifications and documentation subject to change without notice
