C12
Артикул: 899051002251
Цена: 0 KZT
Revered for its smooth and airy frequency response, if there were ever a microphone that was the epitome of classic, hi-fidelity sound, it would be the C12. While it is a fantastic choice for all types of instruments, the C12 lends itself especially well to drum overheads, acoustic guitar, and vocals. Its silky top end provides plenty of air without sounding harsh or artificial. Its midrange speaks clearly and articulately, capturing the source with a natural presence. Its low end is tight and focused, perfectly balanced with the rest of the frequency range. The TELEFUNKEN C12 builds upon the original design with the implementation of cathode self-biasing operation, a configuration which is quieter and more consistent than the original fixed-bias configuration.
The large diaphragm vacuum tube-based C12 is a fantastic choice for all types of instruments, lending itself especially well to drum overheads, acoustic guitar, and vocals. Its silky smooth top end provides plenty of air without sounding harsh or artificial. Its midrange speaks clearly and articulately, capturing the source with a natural presence. Its low end is tight and focused, perfectly balanced with the rest of the frequency range. If there were ever a microphone that was the epitome of classic, hi-fidelity sound, it would be the Austrian-designed C12. Original developed by AKG Acoustics in 1953, the C12 is revered for its smooth, airy frequency response. The design of the C12 was unique in its remote capsule polarizing technology. The ability to change the capsule’s polar pattern variably between cardioid, omnidirectional and figure-8 (and six intermediate patterns between) from the power supply instead of with switches on board the microphone made the C12 the most versatile large diaphragm tube microphone of its time. Considered by many to be the finest sounding microphone ever produced, original C12 microphones are still in use in recording studios throughout the world. TELEFUNKEN Elektroakustik is proud to manufacture the C12 once again. Each microphone features a newly manufactured CK12 capsule built from the original manufacturer’s specifications. The amplifier circuit utilizes a European-made Haufe (manufacturer of the original) output transformer built to match the original, and a microphone grade 6072A vacuum tube. Every part of the C12 microphone has been reverse engineered and recreated exactly to the original to match not only its sonic integrity, but also to preserve the impressive point-to-point construction and aesthetic of the original. Coveted by an extensive list of professional recording engineers, the TELEFUNKEN Elektroakustik C12 historic reissue is an exceptional microphone that will be a treasured addition to your microphone collection for many decades to come. Each C12 microphone comes complete with M 910 power supply, M 810 25’ quad-shielded tube microphone cable, M 751 shock mount, FC10 locking flight case and WB10 wooden microphone box. All TELEFUNKEN Elektroakustik microphones are hand-built and assembled in Connecticut, USA.Комплектация

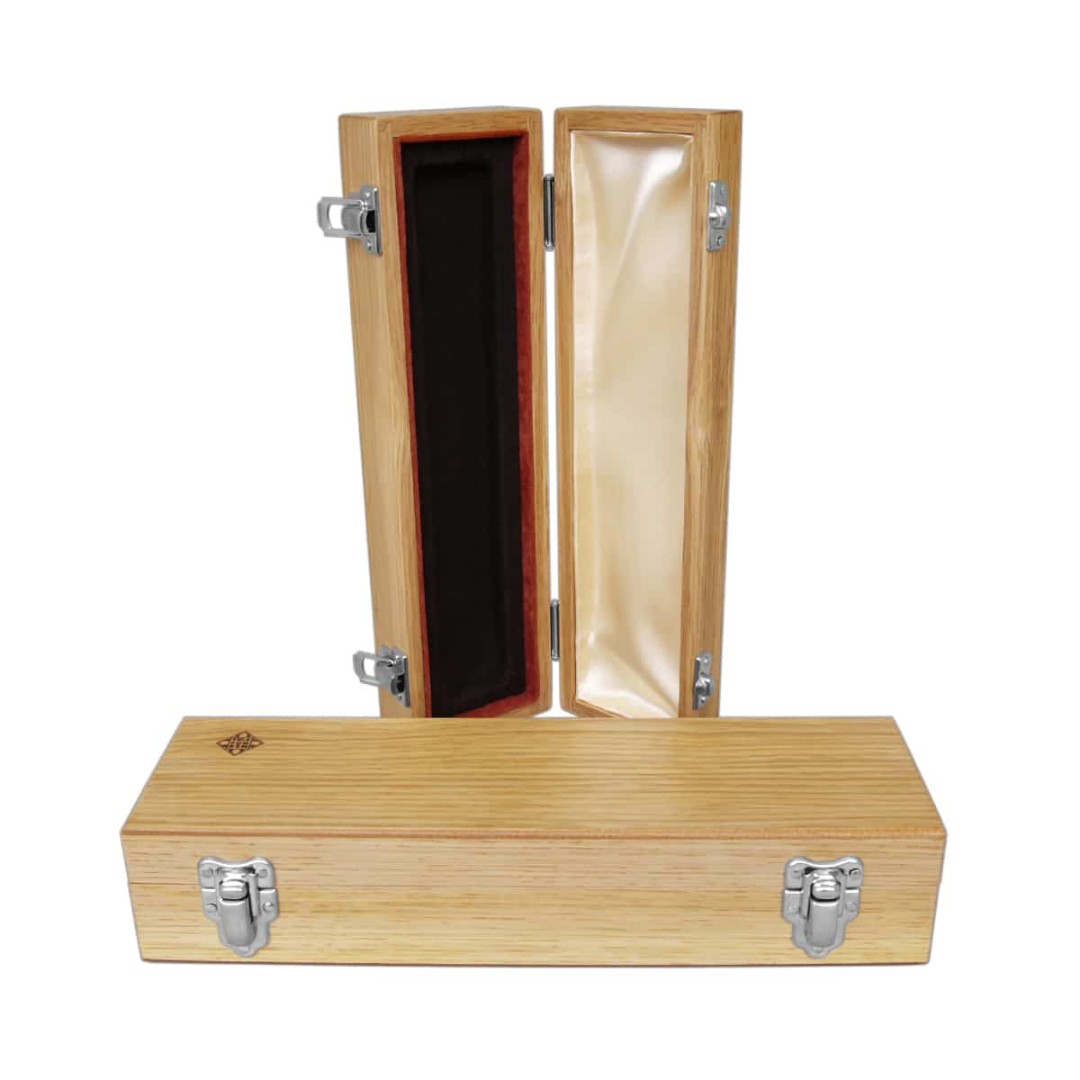

C12 microphone, M 910 power supply, M 810 cable, WB10 wooden box, FC10 flight case
Габариты (Д/Ш/В)
25"/12"/26"
ТЕХНИЧЕСКИЕ ДАННЫЕ
ОСОБЕННОСТИ
Legendary sweet and airy tone
Phenomenal high frequency clarity and definition
9 remote-selectable polar patterns including Cardioid, Omni, and Figure 8
US-made historically accurate CK12 edge-terminated capsule
TELEFUNKEN Elektroakustik 6072A vacuum tube
Point-to-point wired in the USA true to the original design
Includes Vintage-compatible standmount cable and fully regulated power supply
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type: Vacuum Tube Condenser
Polar Pattern: 9-Pattern Variable including Cardioid, Omnidirectional, Figure-8
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: External Power Supply
Capsule: TELEFUNKEN Elektroakustik CK12 – Edge Terminated Large Diaphragm
Tube: TELEFUNKEN Elektroakustik 6072A
Transformer: Haufe T14/1
Sensitivity: 10 mV/Pa, ±1 dB
THD at 1kHZ at 1Pa (Amplifier): < 0.25%
Output Impedance: 200 Ω
Maximum SPL (for 1% THD): 130 dB
S/N Ratio: 85 dBA
Self Noise (Amplifier): 9 dBA
Dimensions: 250 mm L x 42.5 mm Dia
Weight: 567 g

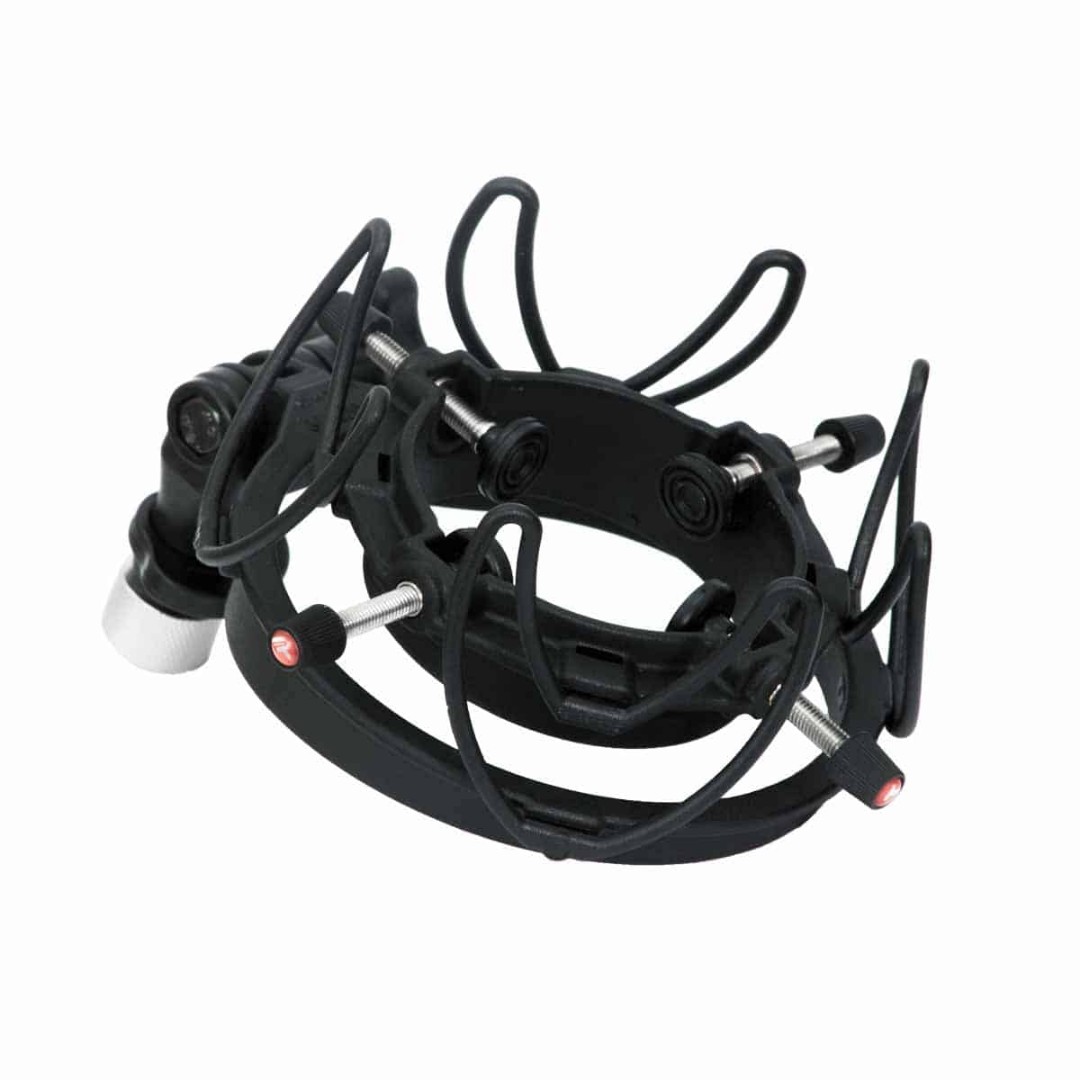

Included Accessories: Tube Mic Cable, Power Supply, Shock Mount, Wooden Box, Flight Case
