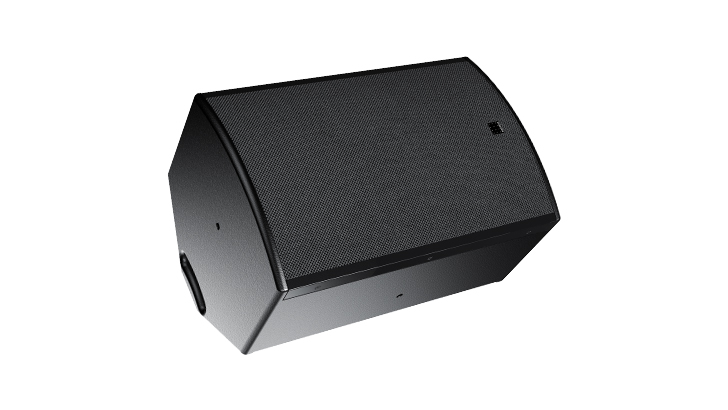

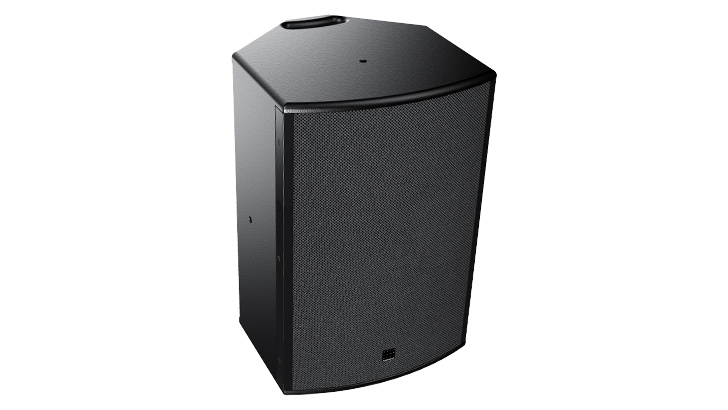

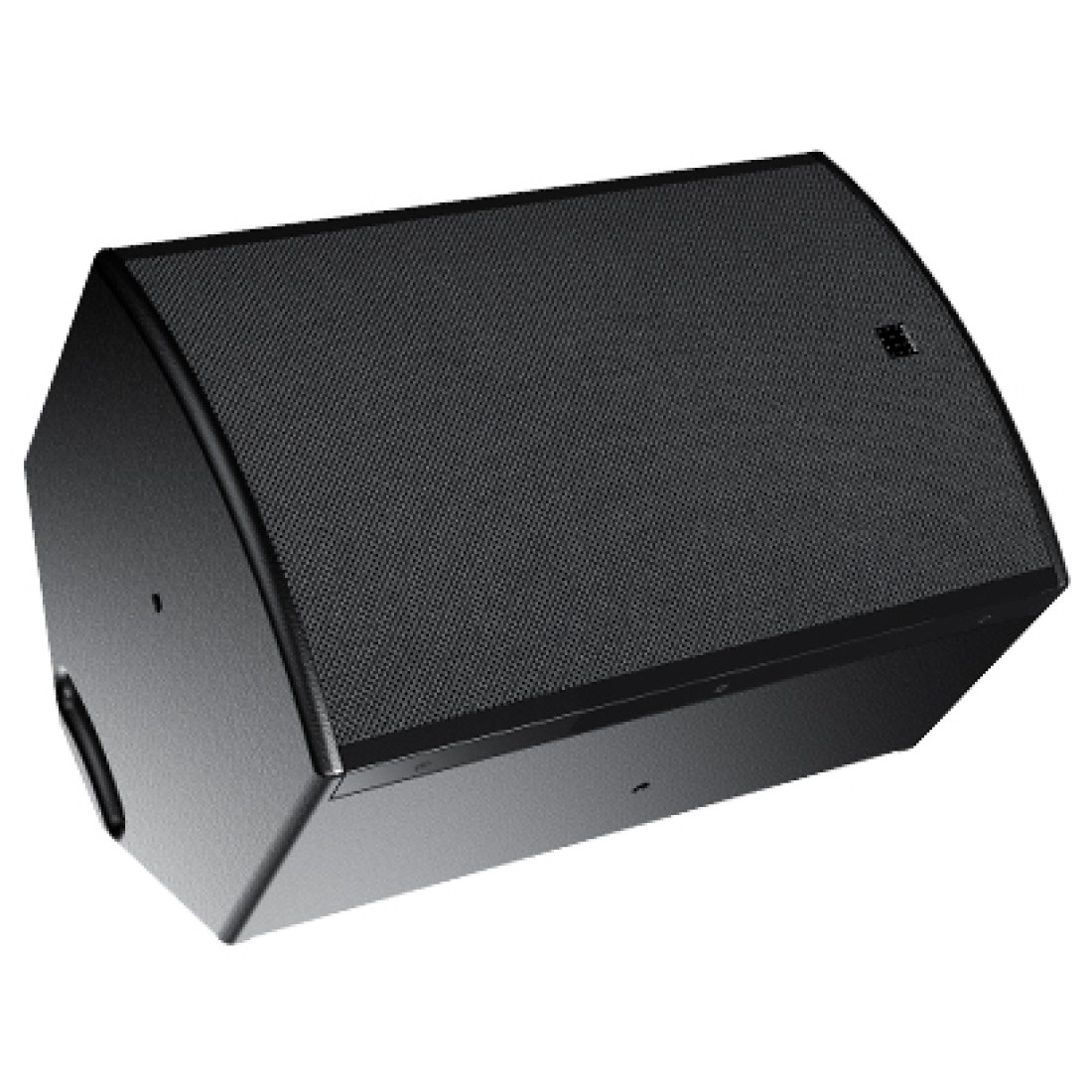

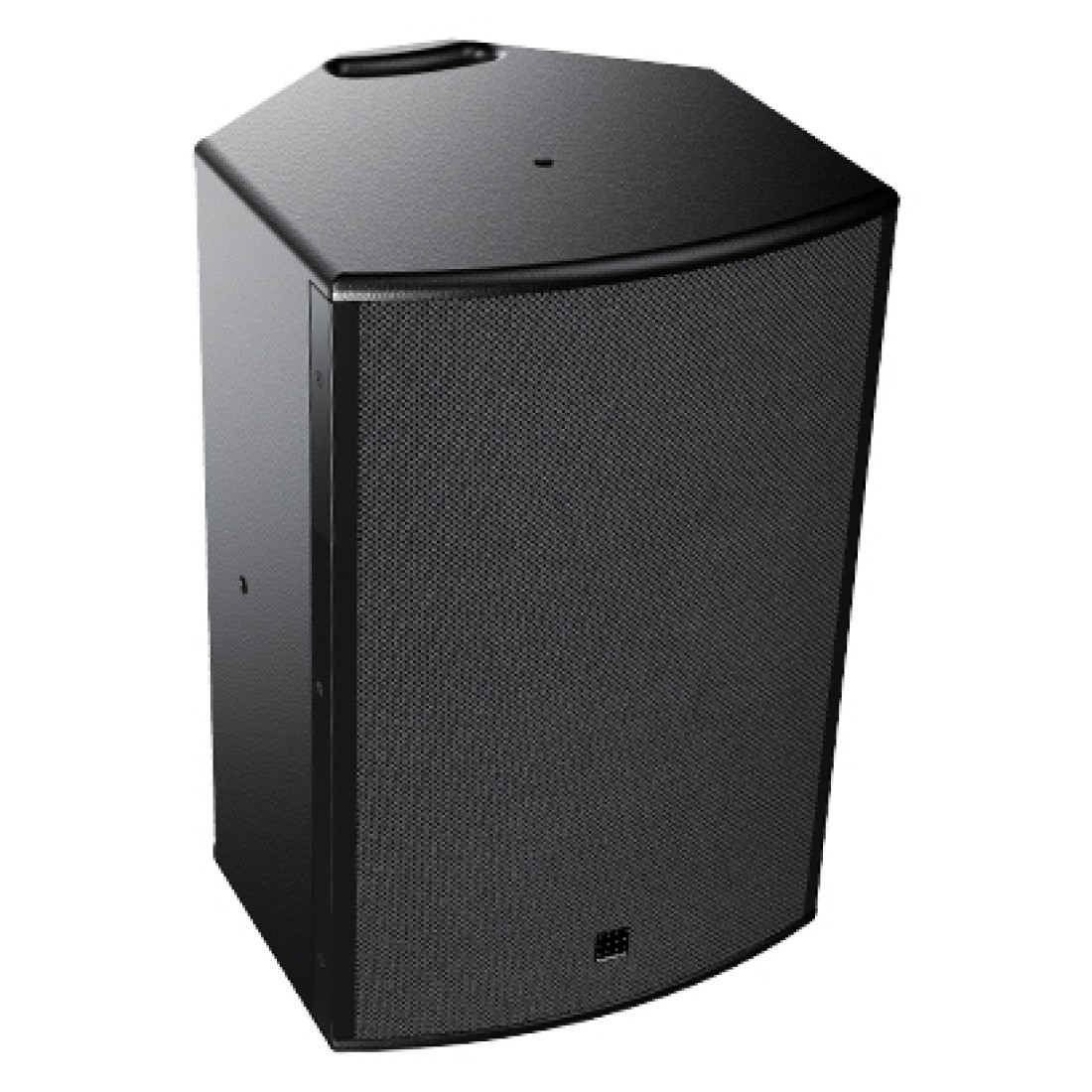

UDX 10
Артикул: -
Цена: 0 KZT
ТЕХНИЧЕСКИЕ ДАННЫЕ
ACOUSTICAL SPECIFICATIONS
|
Operating frequency range |
65 Hz - 20 000 Hz |
| Sensitivity | 97 dB |
| Maximum SPL | 124 dB |
| Horizontal coverage | 70° |
| Vertical coverage | 70° |
TECHNICAL SPECIFICATIONS
| Nominal impedance | 8 Ω |
| AES power handling | 200 W |
| Program power handling | 400 W |
| Peak power handling | 560 W |
| Transducer (LMF) | 1 x 10'' |
| Transducer (HF) | 1 x 2.5'' |
| Enclosure type | Bass-reflex |
| Speaker type | Coaxial |
| Crossover type | Passive |
| Crossover frequency | 1 800 Hz |
| Crossover slopes | HPF 18 dB/Octave, LPF 18 dB/Octave |
PHYSICAL SPECIFICATIONS
| Height | 506 mm |
| Width | 337 mm |
| Depth | 348 mm |
| Connectors | 2 speakON NL4 |
| Weight | 15,55 kg |
| Rigging | 4 lateral and axial inserts (M8) for optional brackets
2 inserts (M8) for optional mounting adapters 4 inserts (M8) for optional wall mounts |
| Standard color codes for cabinet | RAL 9005, RAL 9010, RAL 9013, RAL 7040, RAL 7030, RAL 5011 |
| Standard color codes for Airtex acoustical fabric | RAL 9005, RAL 9006, RAL 9010, RAL 1035, RAL 1036, RAL 5011 |
