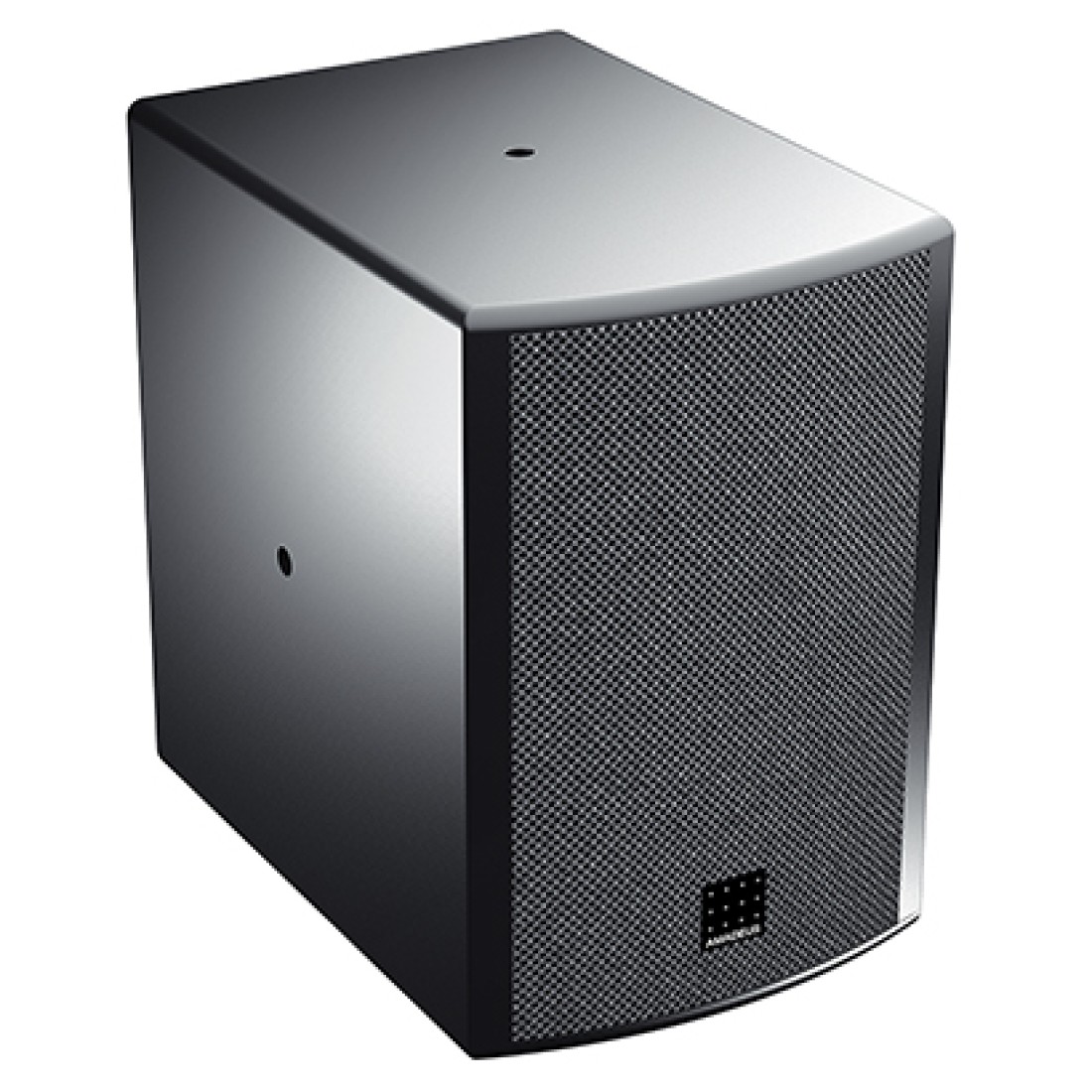

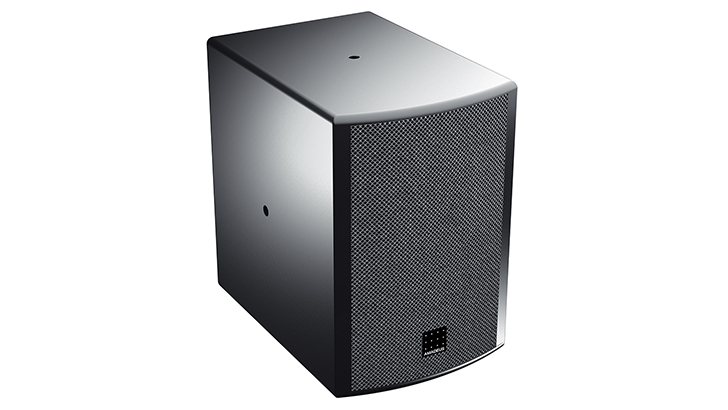

PMX 5
Артикул: -
Цена: 0 KZT
ТЕХНИЧЕСКИЕ ДАННЫЕ
ACOUSTICAL SPECIFICATIONS
|
Operating frequency range |
80 Hz - 22 000 Hz |
| Sensitivity | 92 dB |
| Maximum SPL | 117 dB° |
| Horizontal coverage | 90° |
| Vertical coverage | 90° |
TECHNICAL SPECIFICATIONS
| Nominal impedance | 8 Ω ou 16 Ω |
| AES power handling | 130 W |
| Program power handling | 250 W |
| Peak power handling | 500 W |
| Transducer (LMF) | 1 x 5.25'' |
| Transducer (HF) | 1 x 1.75'' |
| Enclosure type | Bass-reflex |
| Speaker type | Coaxial |
| Crossover type | Passive |
PHYSICAL SPECIFICATIONS
| Height | 233 mm |
| Width | 160 mm |
| Depth | 236 mm |
| Connectors | 2 speakON NL4 |
| Weight | 4,95 kg |
| Rigging | 6 inserts for optional accessories |
| Standard color codes for cabinet | RAL 9005, RAL 9010, RAL 1013, RAL 7040, RAL 7030, RAL 5011 |
| Standard color codes for Airtex acoustical fabric | RAL 9005, RAL 9006, RAL 9010, RAL 1035, RAL 1036, RAL 5011 |
