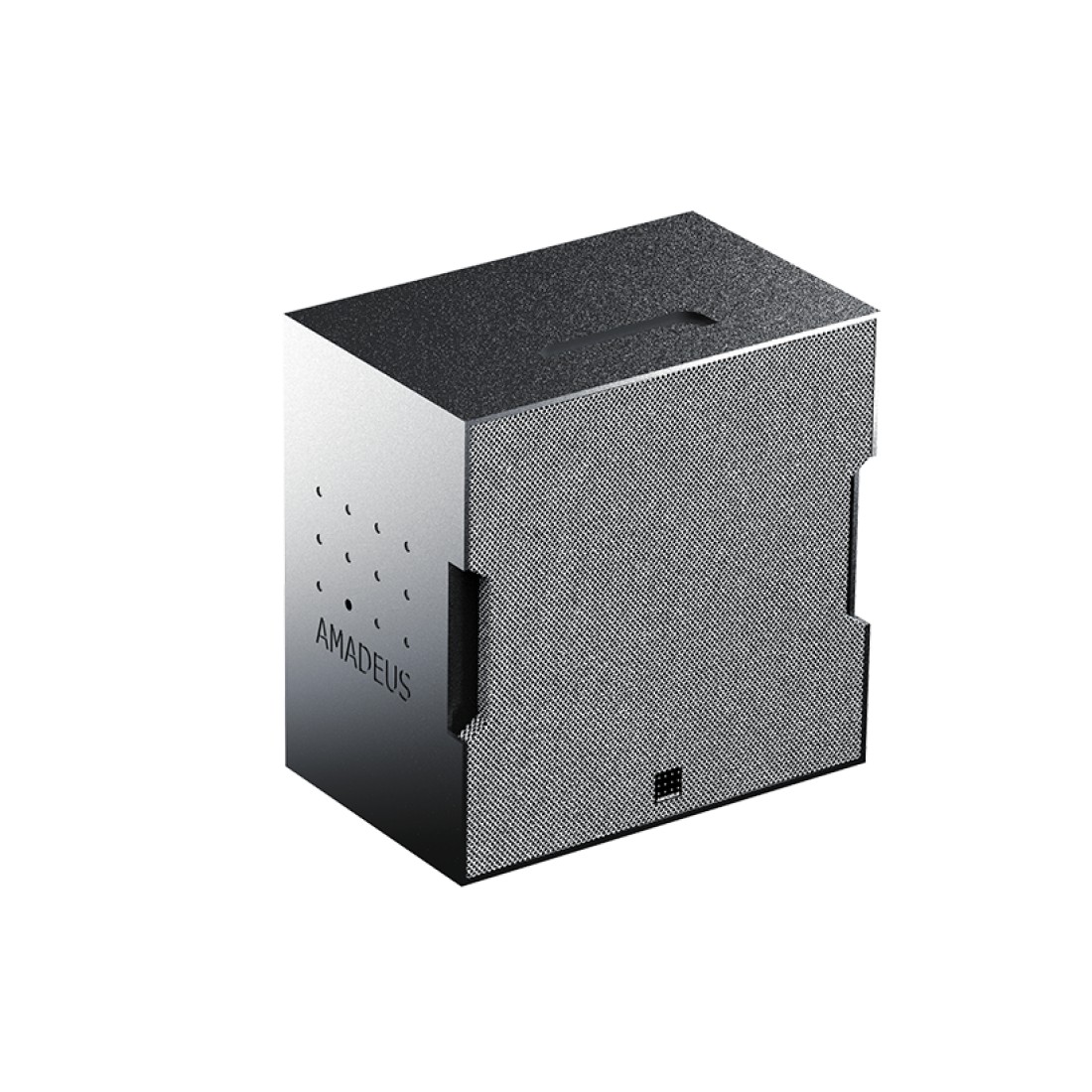

C 10
Артикул: -
Цена: 0 KZT
ТЕХНИЧЕСКИЕ ДАННЫЕ
ACOUSTICAL SPECIFICATIONS
|
Operating frequency range |
65 - 20 000 Hz |
| Sensitivity | 96 dB |
| Maximum SPL | 126 dB |
| Horizontal coverage | 100° |
| Vertical coverage | 100° |
TECHNICAL SPECIFICATIONS
| Nominal impedance | 8 Ω |
| AES power handling | 400 W |
| Program power handling | 800 W |
| Peak power handling | 1 000 W |
| Transducer (LMF) | 1 x 10'' |
| Transducer (HF) | 1 x 1.75'' |
| Enclosure type | Bass-reflex |
| Speaker type | Coaxial |
PHYSICAL SPECIFICATIONS
| Height | 336 mm |
| Width | 336 mm |
| Depth | 260 mm |
| Connectors | 1 speakON NL4 |
| Weight | 38.9 lbs (13.1 kg) |
| Rigging | 2 x M8 threaded inserts for optional U-Bracket |
| 2 x M8 threaded inserts for optional mounting adapter | |
| Standard color codes for cabinet | RAL 9005, RAL 9010, RAL 1013, RAL 7040, RAL 7030, RAL 5011 |
| Standard color codes for Airtex acoustical fabric | RAL 9005, RAL 9006, RAL 9010, RAL 1035, RAL 1036, RAL 5011 |
